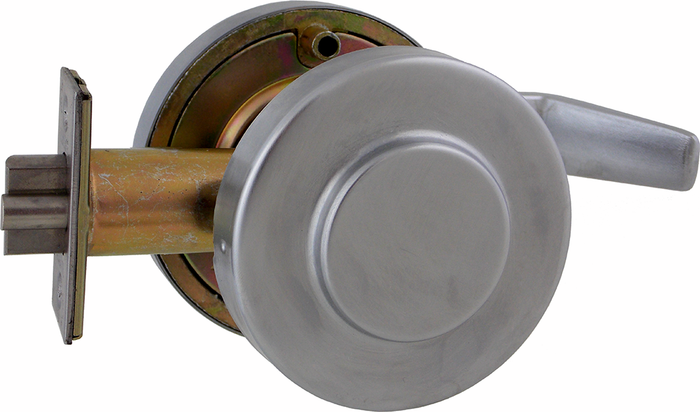

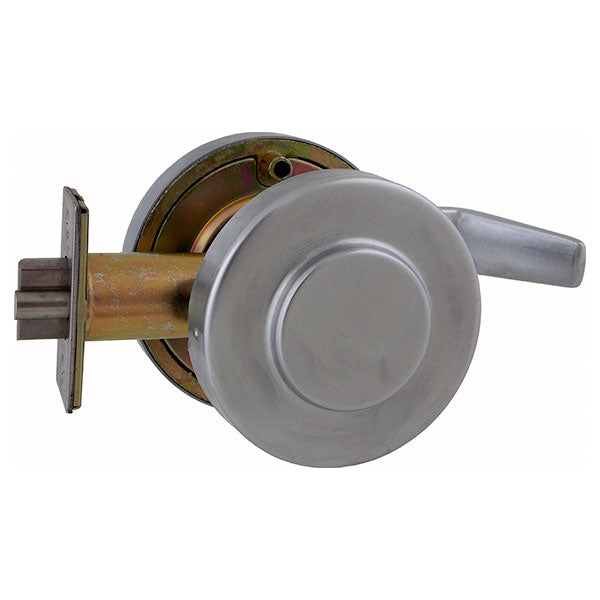

Marks Hardware 195NB/26D Commercial Lever Set 2 3/4 inches Backset Communicating Passage Grade 1

Product Description

The Marks Hardware 195NB/26D is a commercial lever set designed for durability and longevity. This cylindrical lockset features cast retractors on bronze roller bearings for reliable function. The Survivor leverset uses a clutch mechanism that helps minimize wear over time. When locked, the levers disengage to avoid droop and extend lifespan.

• Grade 1 lever set suitable for heavy-duty use.
• Durably constructed with innovative clutch mechanism.
• Designed for a backset of 2 3/4 inches.

Product Highlights

This lever set is built to meet commercial standards, ensuring quality and longevity in high-traffic areas.

Product Information

Standard Information

• Lock Function: ANSI F111 Communicating Passage
• Handing: Non-Handed

Technical Specifications

• Door Thickness: 1-5/8 inches - 1-7/8 inches
• Backset: 2-3/4 inches
• Latch: #1834, 1-1/8 inches x 2-1/4 inches; Throw: 9/16 inches; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2 inches return
• Roses: Thru-bolted, 3-7/16 inches dia., spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8 inches ASA curved lip strike
• Finish: 626 - 26D - Satin Chrome
• Certifications: ANSI/BHMA Grade 1, UL Listed 3-hour fire rating, ADA Compliant
• Manufacturer Warranty: Marks lifetime mechanical warranty
• State of Origin: USA
• Series: 195 Series
• Height: 4 inches
• Length: 8.5 inches
• Width: 7 inches
