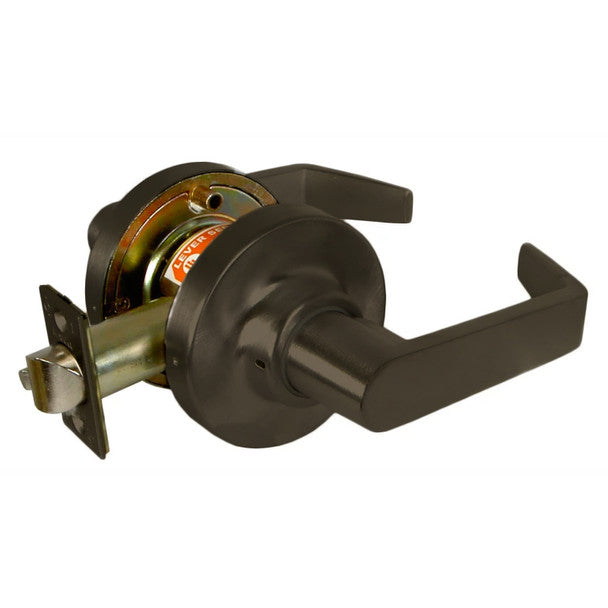

Marks Hardware 195N/10B Door Lock Leverset Cylindrical Electrified 2-3/4 inches Backset

Product Description

The Marks Hardware 195N/10B Door Lock Leverset features a unique clutch mechanism designed to minimize wear and abuse. When locked, the levers disengage from the retractor and other interior components, allowing them to swing freely without resistance. This design reduces wear on the lock components and eliminates lever droop. The product meets ADA standards.

• Unique clutch mechanism reduces wear and abuse.
• Levers disengage when locked to allow free movement.
• ADA compliant for accessibility.

Product Highlights

The door lock leverset is ideal for commercial environments, enhancing both security and ease of access.

Product Information

Standard Information

• Brand: Marks USA
• Function: N-Passage

Technical Specifications

• Backset: 2-3/4 inches
• Design: Flat lever with return
• Finish: US10B Oil Rubbed Bronze
• Lock Assembly Type: Cylindrical
• ANSI Grade: 1
• Fire Rating: 3 hours
• Door Thickness Maximum: 1-3/4 inches
• Latch Face: Square corner 1-1/8 inch wide
