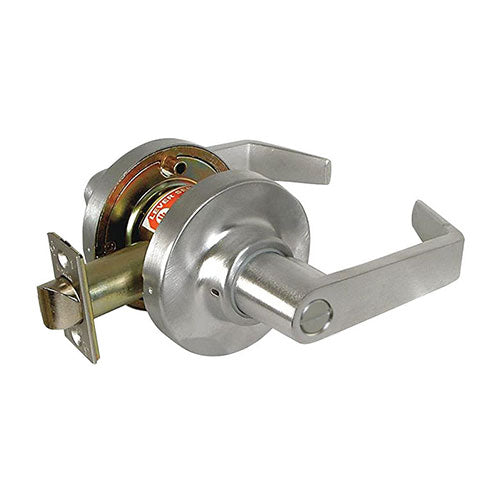

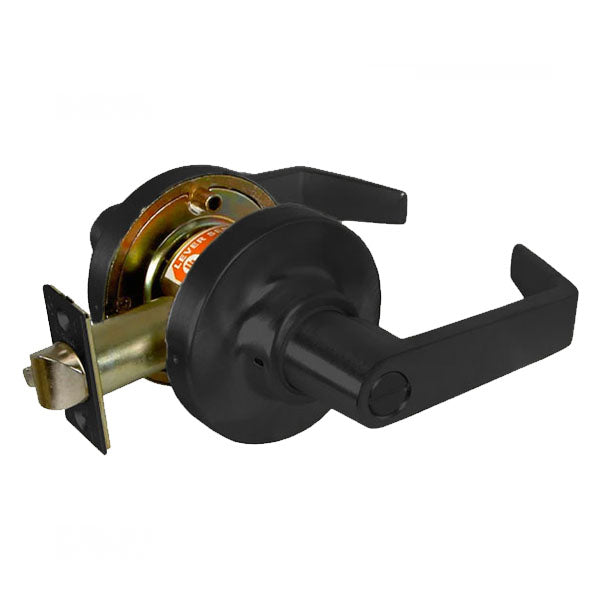

Marks Hardware 195L/26D Survivor Series 95 Line Privacy Lever Lock

Product Description

The Marks Hardware 195L/26D is a privacy lever lock designed for durability and security. It belongs to the Survivor Series 95 Line, ensuring reliable performance. This lock features a cast stainless steel retractor with bronze roller bearings, enabling smooth operation and high strength. It meets ANSI A156.2, Grade 1 standards for security and adheres to ADA requirements.

• Grade 1 privacy lever lock for enhanced security
• Designed for heavy duty use with minimal maintenance
• Complies with ADA and ANSI standards for accessibility and safety

Product Highlights

This lock is suitable for various commercial and residential applications where privacy is essential. The clutch mechanism disengages the outside lever when locked, helping to reduce torque and ensure reliable operation.

Product Information

Standard Information

• Brand: Marks USA
• Finishes: US10BE (613e) Dark Oxidized Satin Bronze, US26D (626) Satin Chrome

Technical Specifications

• Lock Function: Privacy
• Lever Design: American
• Usage: Heavy Duty
• ANSI Grade: Meets ANSI A156.2, Grade 1 Standards
• Fire Rating: UL Listed up to 3 Hours
• ADA Compliance: Meets A117.1 Accessibility Code
• Backset: 2-3/4 inches
• Latch: 9/16 inch throw – 1-1/8 inches x 2-1/4 inches face
• Strike: 4-7/8 inches x 1-1/4 inches ASA/ANSI strike
• Handing: Non Handed – Completely Reversible
• Warranty: Limited Lifetime Warranty
• Door Thickness: 1-5/8 inches - 1-7/8 inches
• Latch Face: Square Corner 1-1/8 inches Wide
• Levers: Solid cast Zamac; with 1/2 inch return
• Roses: Thru-bolted, 3-7/16 inches diameter
• Strike Type: ANSI
• Throughbolt Pattern: 2-3/4 inches C.C. 12 and 6 o'clock
• Certifications: Meets or exceeds ANSI/BHMA Grade 1 requirements
• Product Type: Cylindrical Lock
