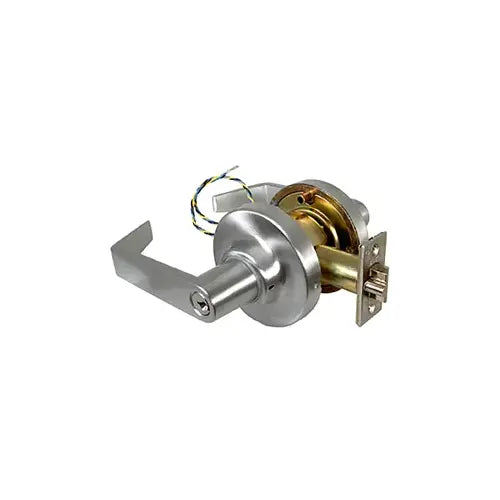

MARKS HARDWARE 195FEU/26D Door Lock Leverset Cylindrical Electrified

Product Description

The Marks Hardware 195FEU/26D is a cylindrical electrified door lock leverset designed for storeroom applications. This product features a unique clutch mechanism that minimizes wear and enhances durability. When locked, the levers disengage, allowing them to move freely without resistance, which prevents lever droop. This Grade 1 lock meets ADA standards and offers reliable performance.

• Unique clutch mechanism reduces wear
• Levers disengage when locked to prevent droop
• ADA compliant for accessibility

Product Highlights

This electrified leverset is ideal for commercial use, ensuring secure access with a robust design.

Product Information

Standard Information

• Brand: Marks Hardware
• MPN: 195FEU/26D

Technical Specifications

• Cylinder Type: 6-PIN STD CYLINDER
• Design: FLAT LEVER WITH RETURN
• Finish: US26D SATIN CHROME
• Function: STOREROOM
• Grade: ANSI GRADE 1
• Keyway: SCHLAGE C
• Locking State: FAIL-SECURE
• Product Type: ELECTRIFIED CYLINDRICAL LOCK
• Voltage: SELECTABLE 24V AC OR DC
• Door Thickness: 1-5/8 inches - 1-7/8 inches
• Backset: 2-3/4 inches
• Latch: #1834, 1-1/8 inches x 2-1/4 inches
• Levers: Solid cast Zamac
• Strike: #1135, 4-7/8 inches ASA curved lip
• Height: 4 inches
• Length: 8.25 inches
• Width: 7 inches
