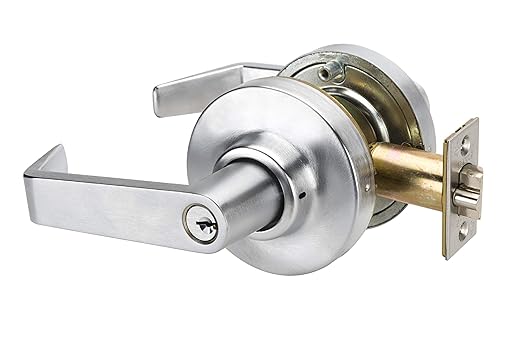

Marks Hardware 195FEU/10B EU 24V Storeroom Lever Lockset Marks C Keyway 6 Pin 2-3/4 inches Backset ANSI Strike Grade 1

Product Description

The Marks Hardware 195FEU/10B is an EU 24V storeroom lever lockset. This product is designed for secure access control in high traffic areas. The lockset remains locked from the outside until unlocked by key or electrically energized. The internal lever allows for smooth latch operation. It is a Grade 1 cylindrical lockset made for durability.

• Grade 1 construction for high durability
• Features a Marks C keyway with a 6-pin cylinder
• Compliant with ANSI standards and UL listed for three-hour fire rating

Product Highlights

This storeroom lever lockset is ideal for commercial applications where security is paramount. With its clutch mechanism, it minimizes wear and tear, allowing for extensive use.

Product Information

Standard Information

• Brand: Marks USA
• Lock Type: Cylindrical Lever Lockset

Technical Specifications

• Grade: Grade 1
• Backset: 2-3/4 inches
• Handing: Field Reversible
• Keyway: Marks C
• Function: Storeroom
• Cylinder Included: Yes
• Cylinder Type: 6-pin Cylinder
• Lever Style: Angled Return Lever
• Strike Size: 4-7/8 inches x 1-1/4 inches
• Latch Bolt Type: Deadlatch
• Knob/Lever Design: American 195
• Rose/Escutcheon Size: 3-7/16 inches
• Latch Bolt Faceplate Size: 2-1/4 inches x 1-1/8 inches
• Door Bore Size: 2-1/8 inches
• Door Thickness Min: 1-5/8 inches
• Latch Bolt Throw: 9/16 inches
• Rose/Escutcheon Style: Rose
• Door Thickness Max: 1-7/8 inches
• Knob/Lever Style: Lever
• Material: Aluminum, Stainless Steel
