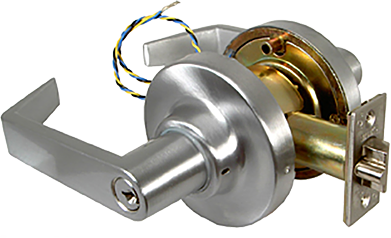

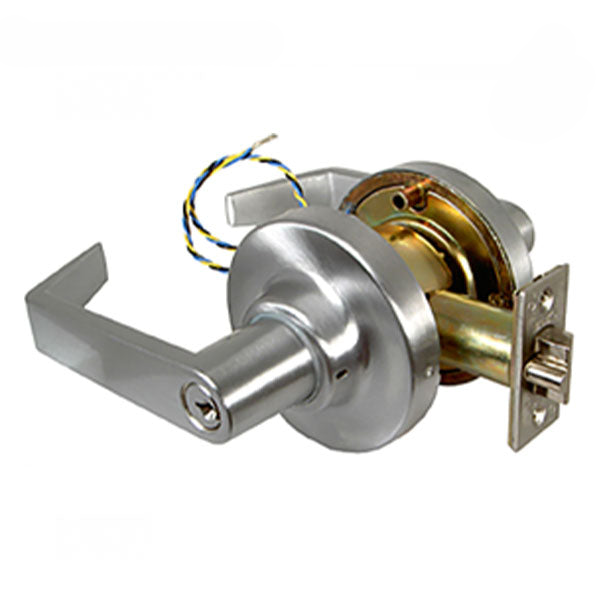

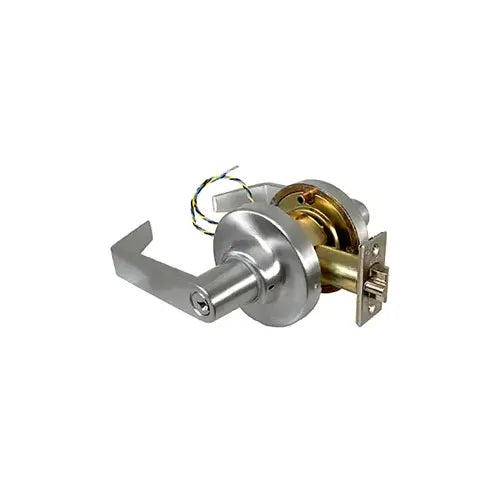

Marks Hardware 195FEL/26D Electrified Commercial Lever Set 24VAC/DC Fail Safe 2-3/4 inches Backset

Product Description

The Marks Hardware 195FEL/26D is a Grade 1 electrified lever set designed for commercial use. This lockset functions either as electronically locked (fail safe) or unlocked (fail secure). It features a clutch that allows the outside lever to turn freely without opening the latch, making it suitable for high-security environments.

• Grade 1 Electrified Survivor Series
• Operable in fail safe or fail secure mode
• Clutch disengages exterior lever when locked

Product Highlights

This product is ideal for doors requiring controlled access and fire safety compliance.

Product Information

Standard Information

• Lock Function: FEL - Fail Safe
• Handing: Non-Handed

Technical Specifications

• Door Thickness: 1-5/8 inches - 1-7/8 inches
• Backset: 2-3/4 inches
• Latch: #1834
• Levers: Solid cast Zamac
• Roses: 3-7/16 inches diameter
• Strike: #1135, 4-7/8 inches
• Cylinder: Marks “C” keyway, 6 pin
• Electrified Functions: 24V AC or DC
• Finish: Satin Chrome
• Certifications: ANSI/BHMA Grade 1
• Manufacturer Warranty: Lifetime mechanical warranty
• Voltage: Selectable 24V AC or DC
• Field Reversible: Yes
• Cylinder Included: Yes
• Fire Rated: Yes, 120 min
• Height: 4 inches
• Length: 8.25 inches
• Width: 7 inches
• Manufacturer: Marks USA
