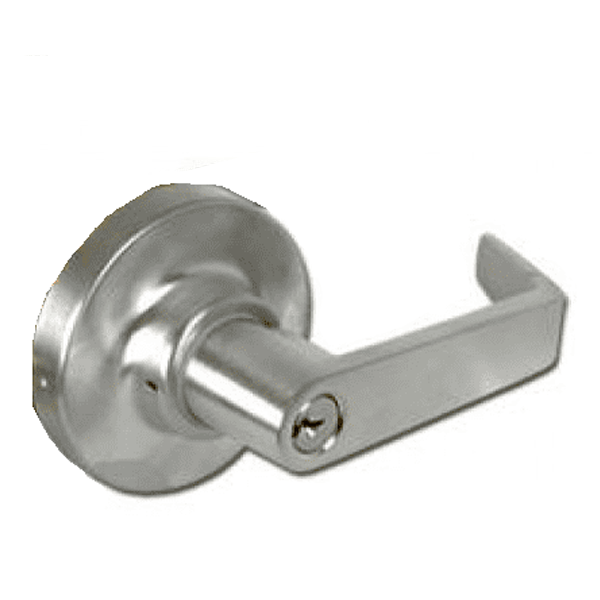

MARKS HARDWARE 195F/10B Door Lock Leverset, Cylindrical, American Lever, 2-3/4 inches Backset

Product Description

The MARKS HARDWARE 195F/10B door lock leverset is designed for storeroom applications. This cylindrical lock features a unique clutch mechanism that reduces wear and abuse, extending the life of the lever set.

• ADA compliant for accessibility
• Solid cast construction for durability
• ANSI/BHMA Grade 1 rating

Product Highlights

This door lock leverset is suitable for various commercial and residential applications.

Product Information

Standard Information

• Brand: MARKS HARDWARE
• Function: Storeroom lock

Technical Specifications

• Backset: 2-3/4 inches
• Cylinder Type: 6-pin standard cylinder
• Design: Flat lever with return
• Finish: US10B oil rubbed bronze
• Keyway: Schlage C
• Latch Bolt Type: Deadlatch
• Door Thickness: 1-5/8 inches - 1-7/8 inches
• Latch Bolt Throw: 9/16 inches
• Manufacturer Warranty: Marks lifetime mechanical warranty
• Height: 4 inches
• Length: 8.25 inches
• Width: 7 inches
