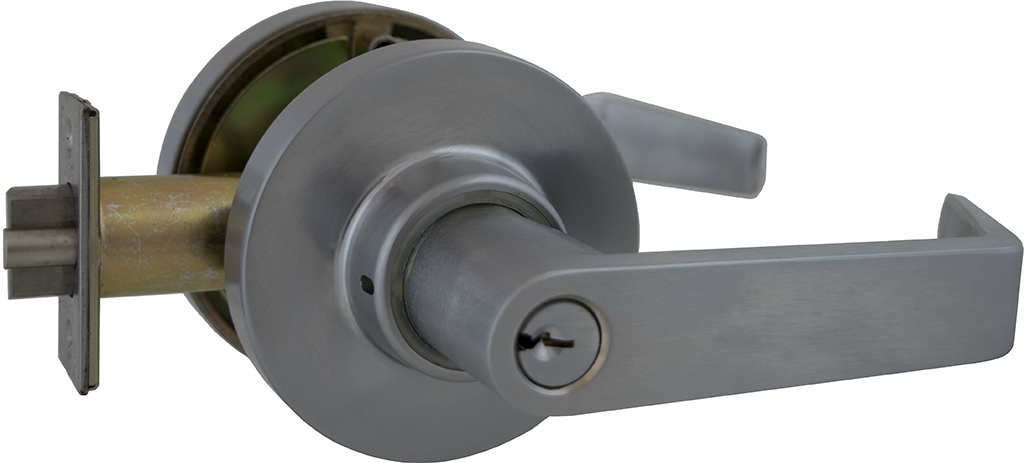

MARKS HARDWARE 195DA/26D Vestibule Clutched Lever Lockset

Product Description

The MARKS HARDWARE 195DA/26D is a Grade 1 cylindrical lockset designed for vestibule applications. This lockset features a key-in lever cylinder and comes with a six-pin configuration. It has a backset measurement of two and three-quarters inches and a rose diameter of three and seven-sixteenths inches.

• Grade 1 cylindrical lockset
• Non-handed and field reversible
• 3-hour fire rated

Product Highlights

This lockset is suitable for high-security applications and offers easy installation. Its satin chrome finish provides durability and resistance to wear.

Product Information

Standard Information

• Brand: MARKS HARDWARE
• Function: Vestibule

Technical Specifications

• MPN: 195DA/26D
• Color: Satin Chrome
• Fire Rated: 3 Hours
• Origin: USA
• Grade: Grade 1
• Backset: 2-3/4 inches
• Handing: Field Reversible
• Keyway: Marks C
• Cylinder Included: Yes
• Cylinder Type: 6-pin Cylinder
• Lever Style: Angled Return Lever
• Strike Size: 4-7/8 inches x 1-1/4 inches
• Latch Bolt Type: Deadlatch
• Knob/Lever Design: American 195
• Rose/Escutcheon Size: 3-7/16 inches
• Latch Bolt Faceplate Size: 2-1/4 inches x 1-1/8 inches
• Door Bore Size: 2-1/8 inches
• Lock Category: Cylindrical Lock
• Door Thickness Min: 1-5/8 inches
• Latch Bolt Throw: 9/16 inches
• Door Thickness Max: 1-7/8 inches
• Height: 4 inches
• Length: 8.25 inches
• Width: 7 inches
