MARKS HARDWARE 195AB/3 Entry American Lever 2-3/4 inches

Product Description

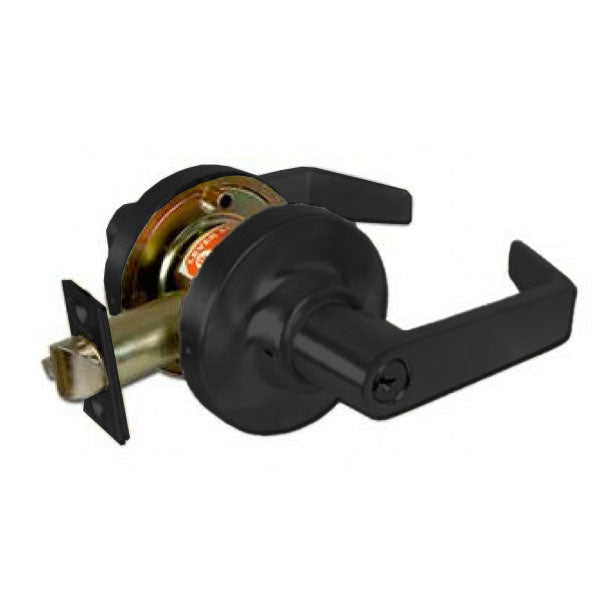

The Marks Hardware 195AB/3 is a Grade 1 cylindrical lock designed for security and durability. This lock is engineered for commercial applications, making it a reliable choice for various settings.

• Grade 1 durability for high performance
• Survivor clutch mechanism to prevent wear
• Three-hour fire rating for enhanced safety

Product Highlights

This lock features a patented mechanism that minimizes wear and allows compatibility with various door types.

Product Information

Standard Information

• Part Number: 195AB/3
• Grade: ANSI Grade 1

Technical Specifications

• Backset: 2-3/4 inches
• Clutch: Yes
• Door Thickness: 1-5/8 inches to 1-7/8 inches
• Fire Rating: 3-hour
• Latch: #1134, 1/2 inch throw
• Strike: #1135, 4-7/8 inches curved lip
• Lever Material: Solid cast Zamac
• Rose Diameter: 3-7/16 inches
• Keyway: Marks C
• Function: Entry, ANSI# F109
• Finish: Polished Brass
• Warranty: Marks Lifetime Mechanical Warranty
• Lock Function: ANSI F109 Entrance
• Handing: Field Reversible
• Latch Throw: 9/16 inch
• Roses: Thru-bolted, spring loaded
• Cylinder: 6 pin w/ 2 keys
• Certifications: ANSI/BHMA Grade 1, UL Listed 3-hour fire rating
• Strike Size: 4-7/8 inch
• Latch Bolt Material: Stainless Steel
• Lever Style: 195 Lever
• Product Type: Cylindrical Lock
