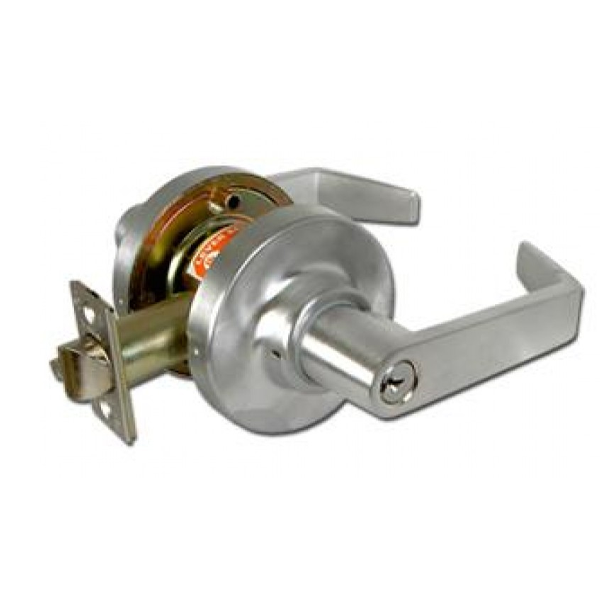

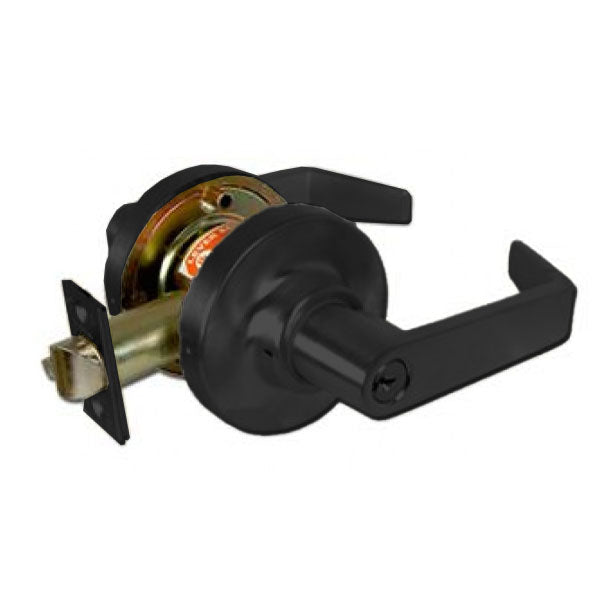

Marks Hardware 195AB/26D-G3 Door Lock Leverset, Cylindrical, Electrified, 2-3/4 inches Backset, ANSI F109

Product Description

The Marks Hardware 195AB/26D-G3 door lock leverset is designed for efficiency and durability. This cylindrical, electrified leverset features a backset of two and three-fourths inches and a throw of nine-sixteenths inches, in compliance with ANSI F109 standards.

• Unique clutch mechanism minimizes wear
• Levers disengage when locked
• Prevents wear on components

Product Highlights

The 195AB/26D-G3 lever set is built to last, providing security and ease of use. Its clutch mechanism allows for smooth operation and reduces stress on the lock system.

Product Information

Standard Information

• Brand: Marks Hardware
• MPN: 195AB/26D-G3

Technical Specifications

• Backset: 2-3/4 inches
• Cylinder Type: Less Cylinder
• Design: Flat lever with return
• Finish: US26D Satin Chrome
• Function: Entry with push/turn button
• Keyway: Less Cylinder
• Knob/Lever Type: Lever
• Latch Face: Square corner 1-1/8 inches wide
• Number of Cylinders: Single Cylinder
• Packaging: Boxed
• Product Type: Cylindrical lock
• Sales Category: Entry lock
• Strike Type: ANSI
• Throughbolt Pattern: 2-3/4 inches C.C. 12 and 6 o'clock
• Lock Function: ANSI F109 Entrance
• Handing: Non-Handed
• Door Thickness: 1-5/8 inches - 1-7/8 inches
• Latch: #1834, Front: 1-1/8 inches x 2-1/4 inches; Throw: 9/16 inches; Stainless steel nose
• Levers: Solid cast Zamac with 1/2 inches return
• Roses: Thru-bolted, 3-7/16 inches dia., spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8 inches ASA curved lip strike
• Certifications: ANSI/BHMA Meets or exceeds Series Grade 1 requirements; UL Listed 3-hour fire rating; ADA compliant
• Manufacturer Warranty: Marks lifetime mechanical warranty
