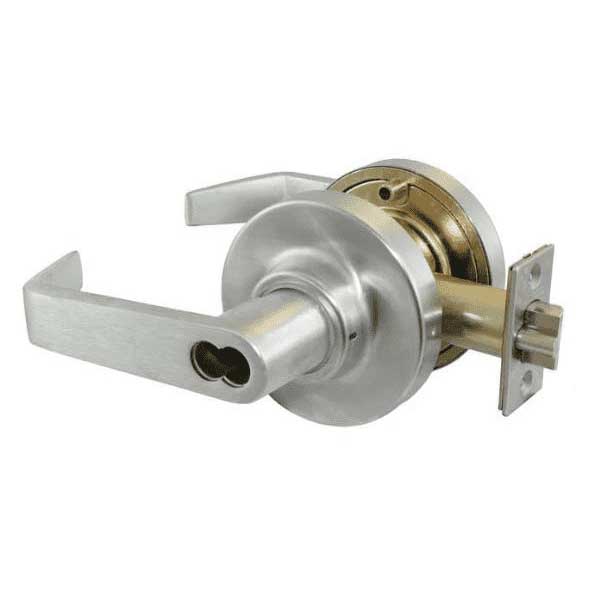

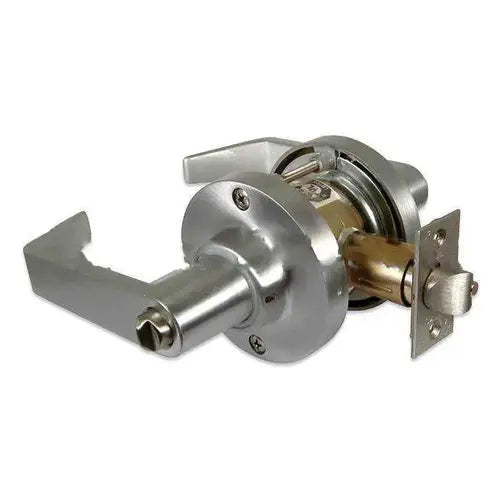

MARKS HARDWARE 175RF/26D-F19 COMMERCIAL LEVER SET PREPPED FOR SCHLAGE IC CORE 2 3/4 INCHES BACKSET

Product Description

The MARKS HARDWARE 175RF/26D-F19 is a Grade 2 economy series commercial lever set designed for demanding environments. This lever set offers Grade 1 lockset performance at a Grade 2 price. It is prepped for a Schlage IC core and features a two and three-fourths inches backset, making it suitable for office buildings, schools, hospitals, and other commercial applications.

• Grade 2 rated for durability in commercial settings.
• Prepped for Schlage IC Core, ensuring flexible security options.
• Standard two and three-fourths inches backset adapts well to various door installations.

Product Highlights

This storeroom function lockset is crafted for security and usability in a wide range of facilities. It maintains functionality while meeting safety standards.

Product Information

Standard Information

• Brand: MARKS HARDWARE
• MPN: 175RF/26D-F19

Technical Specifications

• Lock Function: ANSI F86 Storeroom
• Handing: Non-Handed
• Door Thickness: 1-5/8 inches to 1-7/8 inches
• Backset: 2-3/4 inches
• Latch: #1134, Front: 1-1/8 inches x 2-1/4 inches
• Levers: Solid cast Zamac with 1/2 inches return
• Roses: Thru-bolted, spring-loaded with two #10 thru-bolts (Inside rose cover included)
• Strike: #1145/32D
• Cylinder: Prepped for Schlage 6 Pin Core (Core sold separately)
• Finish: Satin Chrome
• Certifications: ANSI/BHMA Meets or exceeds A156.2-2011 4000 Series Grade 2 requirements
• Warranty: Marks lifetime mechanical warranty
