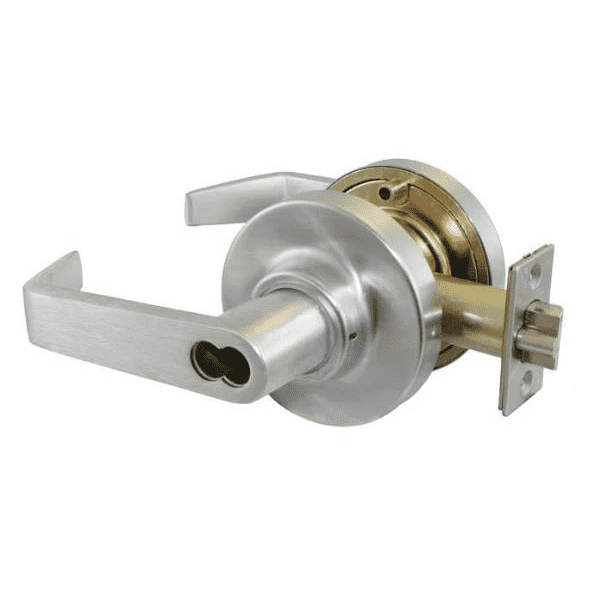

Marks Hardware 175RAB/26D-F19 Door Lock Leverset, Cylindrical, American Lever, 2-3/4 inches Backset, 1/2 inches Throw, With Schlage 6-Pin IC Core

Product Description

The Marks Hardware 175RAB/26D-F19 Door Lock Leverset is designed for durability and functionality. This cylindrical lock features a unique clutch mechanism that reduces wear and allows for smooth operation. When the lock is secured, the levers disengage from the internal mechanisms, allowing free movement without resistance. This design is ideal for commercial settings such as offices, schools, universities, and hospitals.

• Clutch mechanism reduces wear on components
• Disengages levers when locked for extended lifespan
• ADA compliant for accessibility

Product Highlights

This leverset is built with a focus on reducing maintenance needs while ensuring security and compliance with accessibility standards.

Product Information

Standard Information

• Brand: Marks Hardware
• MPN: 175RAB/26D-F19

Technical Specifications

• Backset: 2-3/4 inches
• Cylinder Type: Less full size interchangeable core
• Design: Flat lever with return
• Finish: US26D Satin Chrome
• Function: Entry with push/turn button
• Keyway: Less cylinder
• Latch Face: Square corner 1-1/8 inches wide
• Lock Function: ANSI F109 Entrance
