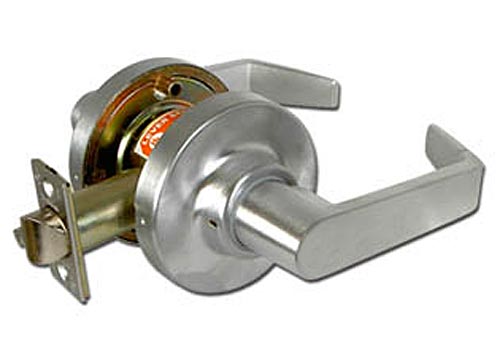

Marks Hardware 175N26D-3/8 Passage Lever Latch Set - Each

Product Description

The MARKS HARDWARE 175N26D-3/8 is a durable economy series grade 2 cylindrical leverset. This product features a clutch mechanism that significantly lowers wear and tear. It is designed specifically for passage doors, keeping both levers in an unlocked state. The leverset complies with ANSI-A156.2 Grade 2 Plus and maintains UL Listing with a three-hour fire rating.

• Features a unique clutch mechanism
• Reduces wear and abuse
• Long-lasting and lower maintenance

Product Highlights

This leverset is a reliable choice for commercial applications, offering durability and a dependable design.

Product Information

Standard Information

• Manufacturer: Marks USA
• Manufacturer Location: USA

Technical Specifications

• Color/Finish: Chrome/Satin
• Style: Commercial
• Type: Passage Latch
• Warranty: Lifetime Mechanical Warranty
• Meets ANSI specification: ANSI-A156.2 Grade 2 Plus, UL Listed 3Hr. Fire Rating
• Door Thickness: 1-5/8 inches to 1-7/8 inches
• Cylinder: MARKS inchCinch keyway, 6 pin with 2 keys
• Backset: 2-3/4 inches square corner latchbolt standard; 2-3/8 inches available
• Strike: 4-7/8 inches ASA strike standard
• BHMA Certified: BHMA Certified
• Roses: Thru-bolted, 3-1/4 inches diam., spring-loaded 2-#10 thru-bolts
• Levers: Solid cast Zamac; with 1/2 inch return; 4-3/4 inch lever length
