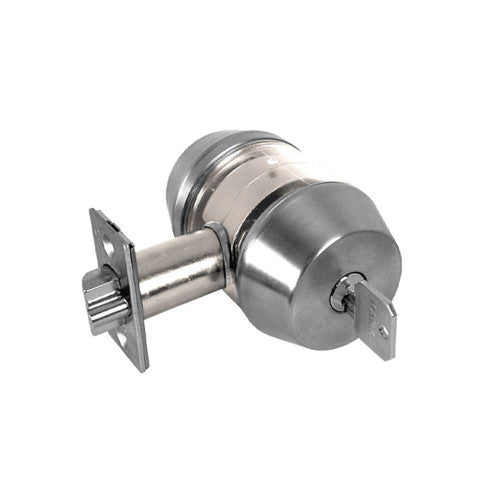

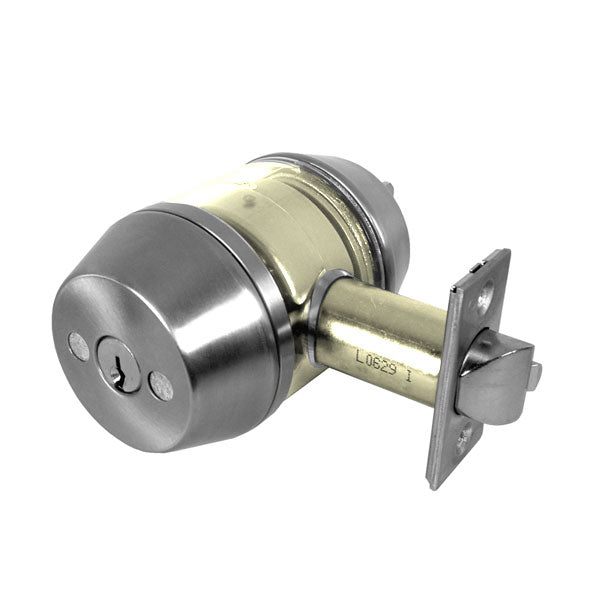

Marks Hardware 145M/32D Commercial Deadlatch Double Cylinder 2-3/4 inches Backset

Product Description

The MARKS HARDWARE 145M/32D commercial deadlatch features a cylindrical cartridge design for easy installation. This deadlocking latch has a stainless steel nose and a 9/16" throw. Designed for durability and security, it is suitable for commercial applications. The unitized assemblies fit a 2-1/8" bore.

• Cylindrical cartridge deadlatch design
• Stainless steel nose with 9/16" throw
• Easy to install with unitized assemblies

Product Highlights

Durable and secure deadlatch for commercial use, featuring easy installation and a stainless steel finish.

Product Information

Standard Information

• Brand: MARKS HARDWARE
• Manufacturer Part Number: 145M/32D
• Country of Origin: United States

Technical Specifications

• Series: Series 1 Cylindrical Cartridge Double Cylinder
• Grade: Grade 1
• Backset: 2-3/4"
• Strike: #1136, 2-3/4” strike
• Latch: #1134, Front: 1-1/8” x 2-1/4”
• Door thickness: 1-3/8" to 2-3/8"
• Bore: Unitized assemblies for 2-1/8" bore
• Cylinder: Double Sided MARKS “C”keyway, 6 pin w/ 2 keys
• Finish: 626 - 26D - Satin Chrome
• Certifications: ANSI/BHMA Grade 1 UL Listed 3-hour fire rating
• MPN: 145M/32D-E11
• UPC: Does Not Apply
• Country of Origin: United States
• MFR #: MRK-145M-32D
• Product Type: Deadlatch
• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Latch front: 1-1/8” x 2-1/4”
• Functions: K: Cylinder x turnpiece L: Communicating single cylinder M: Double cylinder KL: Cylinder x lever X: Turnpiece x blank plate KK: Cylinder x knob
• Finishes: 3 - Bright brass 32D - Stainless steel 10B - Dark bronze 26D - Satin chrome
• Latch Front: 1” x 2-1/4”
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• Product Category: Mechanical Locks
• Subcategory: Cylindrical Locks
• Commercial/Residential: Commercial
• Keyed: Yes
• Function Description: Single Cylinder Deadbolt
• Product Attribute: Deadbolts
• Product Function: Cylinder x Thumbturn
• Latch Type Specification: Deadlocking
• Keyway Profile: Marks C
• Product Material: Stainless Steel
• Backset (Distance): 2-3/4"
