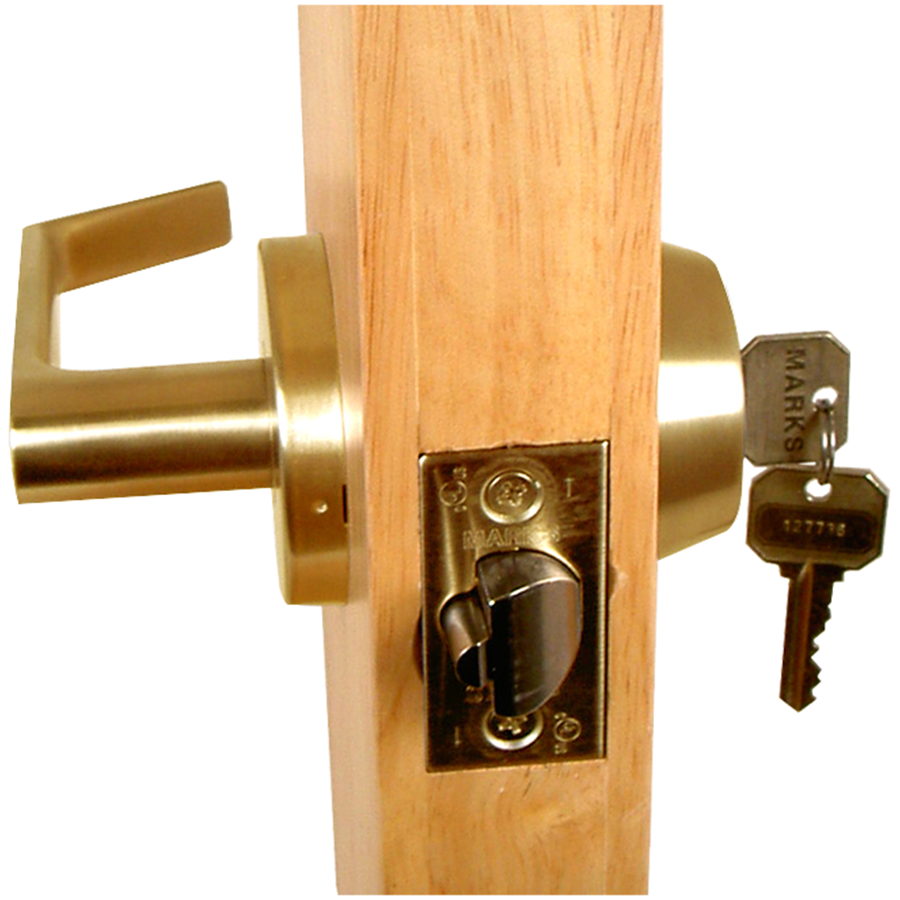

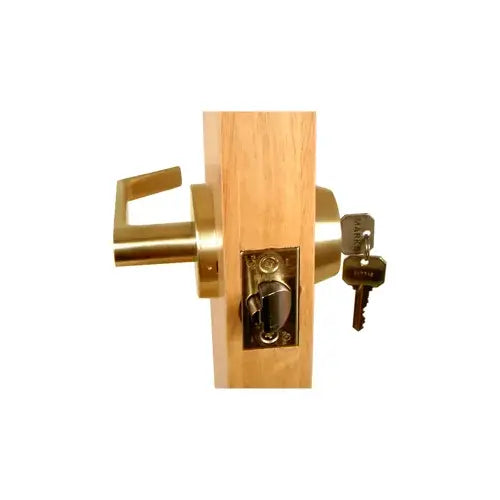

Marks Hardware 145KL/3-E11 Gate Lock Single Cylinder X Lever 2-3/8 inches Backset

Product Description

The Marks Hardware 145KL/3-E11 gate lock features a single cylinder design with an X lever. This model is built to fit a door with a backset of two and three-eighths inches. The lock allows for key operation from the exterior, while the lever unlocks from the inside without a key. It is suitable for doors with a bore of two and one-eighth inches and accommodates door thicknesses ranging from one and three-eighths inches to two and three-eighths inches.

• Single cylinder design with X lever operation.
• Standard two and three-eighths inch backset.
• ANSI 156.5 grade 1 certified for security.

Product Highlights

This gate lock ensures reliable security and ease of use, making it ideal for residential applications.

Product Information

Standard Information

• Series: 145
• Manufacturer: Marks USA

Technical Specifications

• Latch: #1134
• Front: 1-1/8 inches x 2-1/4 inches
• Backset: 2-3/8 inches
• Strike: #1136, 2-3/4 inches
• Door Thickness: 1-3/8 inches to 2-3/8 inches
• Bore: 2-1/8 inches
• Cylinder: Marks C keyway, 6 pin
• Finish: Satin Chrome (626 - 26D)
• Certifications: ANSI/BHMA Grade 1
• Manufacturer Warranty: Marks lifetime mechanical warranty
