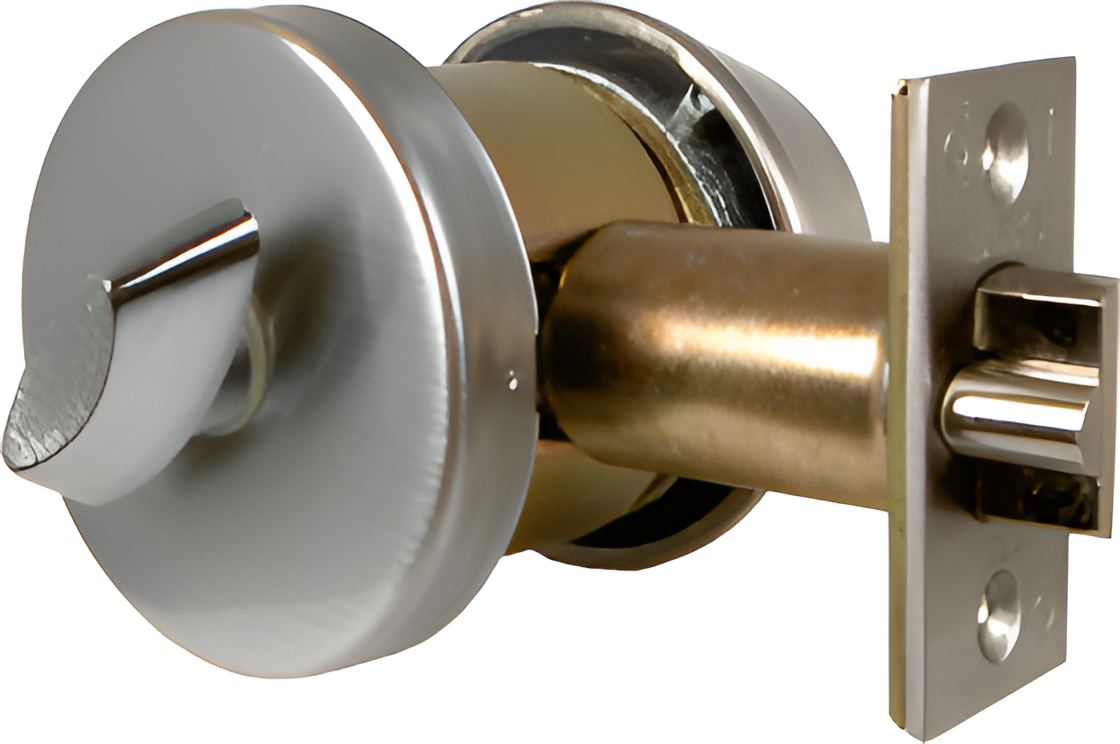

Marks Hardware 145K/32D Marks C Keyway Single Cylinder Gate Lock 6 Pin 2-3/4 inches Backset

Product Description

The Marks Hardware 145K/32D is a Marks C Keyway single cylinder gate lock with a 6-pin configuration and a 2-3/4" backset. This deadbolt is designed for easy installation and accepts most manufacturers' conventional, high-security, and IC core cylinders. It features a grade 1 deadlatch for enhanced security.

• Single Cylinder Gate Lock
• 6 Pin
• 2-3/4" Backset

Product Highlights

This single cylinder gate lock features a 6-pin system and a 2-3/4" backset, offering enhanced security and ease of installation.

Product Information

Standard Information

• Brand: MARKS HARDWARE
• Manufacturer Part Number: 145K/32D

Technical Specifications

• Brand: Marks Hardware
• MPN: 145K/32D
• Latch: Grade 1, 9/16” throw, 2-3/4” backset
• Strike: #1136, 2-3/4” strike
• Door Thickness: 1-3/4”; For 1-3/8” doors use spacer rings K1442/32D
• Cylinder: Marks “C” keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8” x 2-1/4”
• Functions: K: Cylinder x turnpiece L: Communicating single cylinder M: Double cylinder KL: Cylinder x lever X: Turnpiece x blank plate KK: Cylinder x knob
• Finishes: 3 - Bright brass 32D - Stainless steel 10B - Dark bronze 26D - Satin chrome
• SKU: 145K/32D-E11
• Grade: Grade 1
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• Product Type: Deadbolts
• Subcategory: Cylindrical Locks
• Commercial/Residential: Commercial
• Keyed: Yes
• Function Description: Single Cylinder Deadbolt
• Product Attribute: Deadbolts
• Product Function: Cylinder x Thumbturn
• Latch Type Specification: Deadlocking
• Keyway Profile: Marks C
• Product Material: Stainless Steel
• Product Category: Mechanical Locks
• Backset (Distance): 2-3/4"
