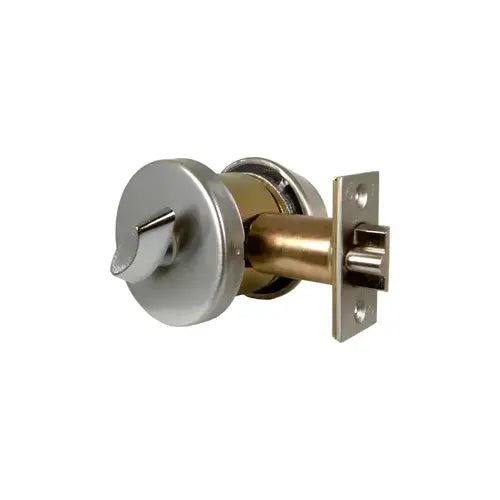

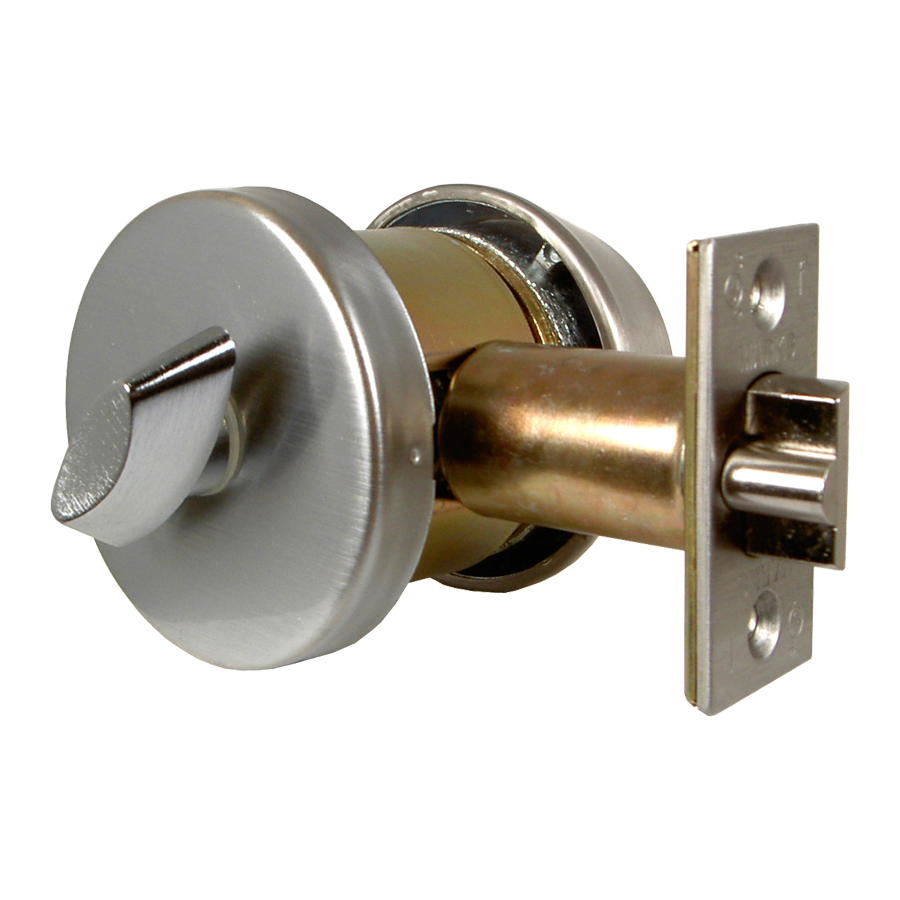

Marks Hardware 145K/32D-E11 Gate Lock Single Cylinder 2-3/8 inches Backset

Product Description

The Marks Hardware 145K/32D-E11 is a gate lock featuring a single cylinder with a Marks C keyway and a backset of two and three-eighths inches. This lock is compatible with most conventional and high-security cylinders. It has a tapered cylinder collar designed to resist wrenching and a steel shutter system that prevents access to mounting screws when the lock is engaged. Use spacer rings K1342 for doors with a thickness of one and three-eighths inches.

• Deadbolt meets ANSI 156.5 grade 1 standards.
• Accepts high-security cylinders from brands like Medeco and ASSA.
• UL fire rated for three hours.

Product Highlights

This gate lock provides durable security, making it suitable for various applications in residential and commercial settings.

Product Information

Standard Information

• Category: Gate Locks, Lock Sets, Single Cylinder (Gate Locks)
• Manufacturer: Marks USA

Technical Specifications

• Height: 3.13 inches
• Length: 7 inches
• Width: 3.25 inches
• Backset: 2-3/8 inches
• Faceplate Height: 2-1/4 inches
• Faceplate Width: 1-1/8 inches
• Finish Color: Satin Stainless Steel
• Throw: 1 inch
• Keyway: Marks C
