Marks 195ssrs/32d Classroom Lever Lockset Grade 1

Product Description

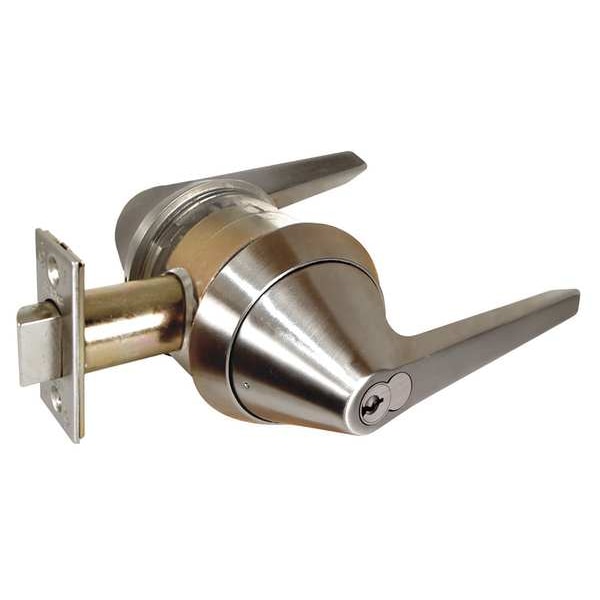

The MARKS 195ssrs/32d is a Grade 1 mechanical cylindrical lever lockset configured for classroom function, designed for installation in high-security and specialty commercial environments. Built on the 1SS19 lever style with a polished stainless steel finish, it features an interchangeable core (IC) cylinder with a 6-pin Marks C keyway and ships keyed alike with 2 keys. The lockset carries a 3-hour fire rating and meets BHMA and cULus standards. Its ligature-resistant construction makes it appropriate for behavioral health and detention facility applications. Installation is handled by licensed locksmiths or commercial door hardware technicians.

This lockset is rated for cylindrical door prep and fits doors 1-3/4 inches thick, with a maximum door thickness of 1-7/8 inches. The classroom function (ANSI F84) allows free egress from the inside at all times while the outside lever is locked by default and released by key. The 2-3/4-inch backset and ASA curved lip strike are standard commercial dimensions. The non-handed design simplifies ordering and installation across multiple door configurations. Intended for institutional settings including schools, behavioral health facilities, and detention environments where durability and ligature resistance are required.

Key Features

• ANSI Grade 1 heavy-duty performance rating for high-cycle institutional use
• Ligature-resistant lever design suited for behavioral health and detention facility doors
• 3-hour fire rating meets IBC and NFPA 80 requirements for rated door assemblies
• Interchangeable core (IC) cylinder accepts standard IC cores for master-key system integration
• ADA-compliant lever handle; non-handed for universal door application
• Lifetime mechanical warranty backed by BHMA and cULus listings

Compatibility

Designed as an OEM-style cylindrical lockset replacement or new installation for commercial and institutional doors requiring a classroom-function Grade 1 lever lockset with a 2-3/4-inch backset and standard cylindrical bore prep.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify door thickness falls within the 1-3/4 to 1-7/8 inch range before ordering. The interchangeable core cylinder must be installed with the appropriate IC control key before handing the door over to the end user. On fire-rated door assemblies, confirm the strike plate and door frame comply with the listing requirements for the 3-hour fire rating per NFPA 80.

Technical Specifications

• Lockset Function: Classroom (ANSI F84)
• ANSI Grade: 1
• Lockset Type: Mechanical Cylindrical
• Lever Style: 1SS19
• Finish: Polished Stainless Steel (ANSI/BHMA Satin Stainless Steel)
• Material: Stainless Steel
• Backset: 2-3/4 inches
• Required Door Thickness: 1-3/4 inches
• Maximum Door Thickness: 1-7/8 inches
• Strike Plate Height: 4-7/8 inches
• Strike Dimension: 2-3/4 inches
• Strike Type: ASA Curved Lip
• Latch Bolt Type: Dead Latch
• Cylinder Core Type: Interchangeable Core (IC)
• Keyway: Marks C
• Number of Pins: 6
• Number of Keys Included: 2
• Keying: Keyed Alike
• Hand Orientation: Non-Handed
• Ligature Resistant: Yes
• ADA Compliant: Yes
• Fire Rating: 3 hours
• Location Type: Behavioral Health, Detention Facility
• Standards: BHMA, cULus Listed
• Warranty: Lifetime Mechanical
• Country of Origin: United States

Standard Information

• Brand: MARKS
• Manufacturer Part Number: 195ssrs/32d
