Markel Products P3P5120CA1N Electric Unit Heater 20 kW 480V

Product Description

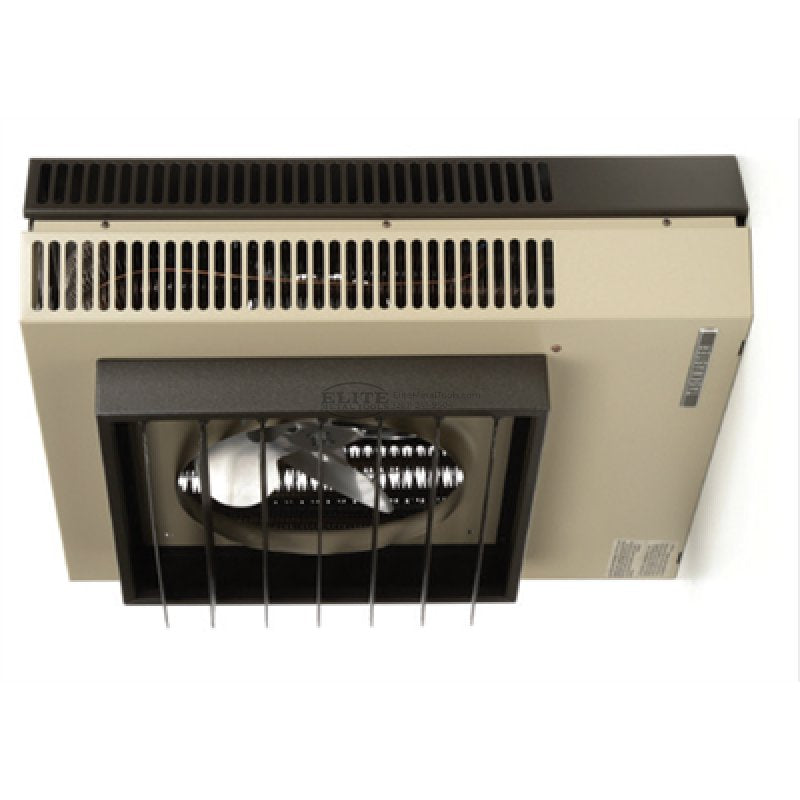

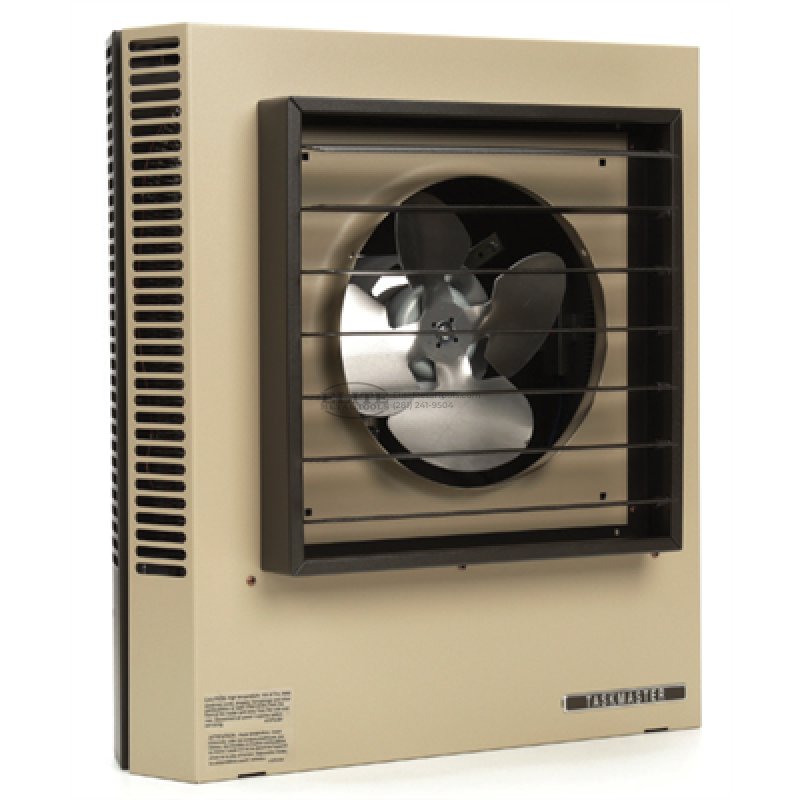

The Markel Products P3P5120CA1N is an electric unit heater suitable for horizontal or vertical discharge. This unit is built with a heavy-gauge welded steel cabinet coated with powder finish. It features a copper-clad steel sheath element with brazed steel fins, designed to provide effective heating in a variety of settings.

• Adjustable louvers for controlling airflow direction.
• Permanently lubricated motor providing thermal protection.
• Control compartment includes a master terminal board for easier wiring.

Product Highlights

Ideal for industrial or commercial use, this heater offers single-stage heating operation and low voltage control wiring.

Product Information

Standard Information

• Manufacturer Part Number: P3P5120CA1N
• Catalog Number: 06454002

Technical Specifications

• Heater Type: Unit Heaters
• Voltage: 480 V
• Phase: 3 Phase
• Power Consumption: 20 kW
• BTU: 68300
• Output Current: 24.7 A
• Control Voltage: 24 V AC
• Air Flow: 1100 CFM
• Air Throw: 32 Feet
• Temperature Rise: 57
• Mounting Height Horizontal: 12 ft
• Mounting Height Vertical: 18 ft
• Weight: 65 lbs
• Dimensions: 21.5 inches x 6.5 inches x 28.69 inches
• Listing Agency: ETL
• Agency Rating: ETL-CUS
• Finish: Powder Coat
