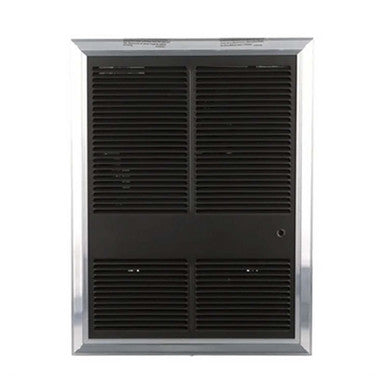

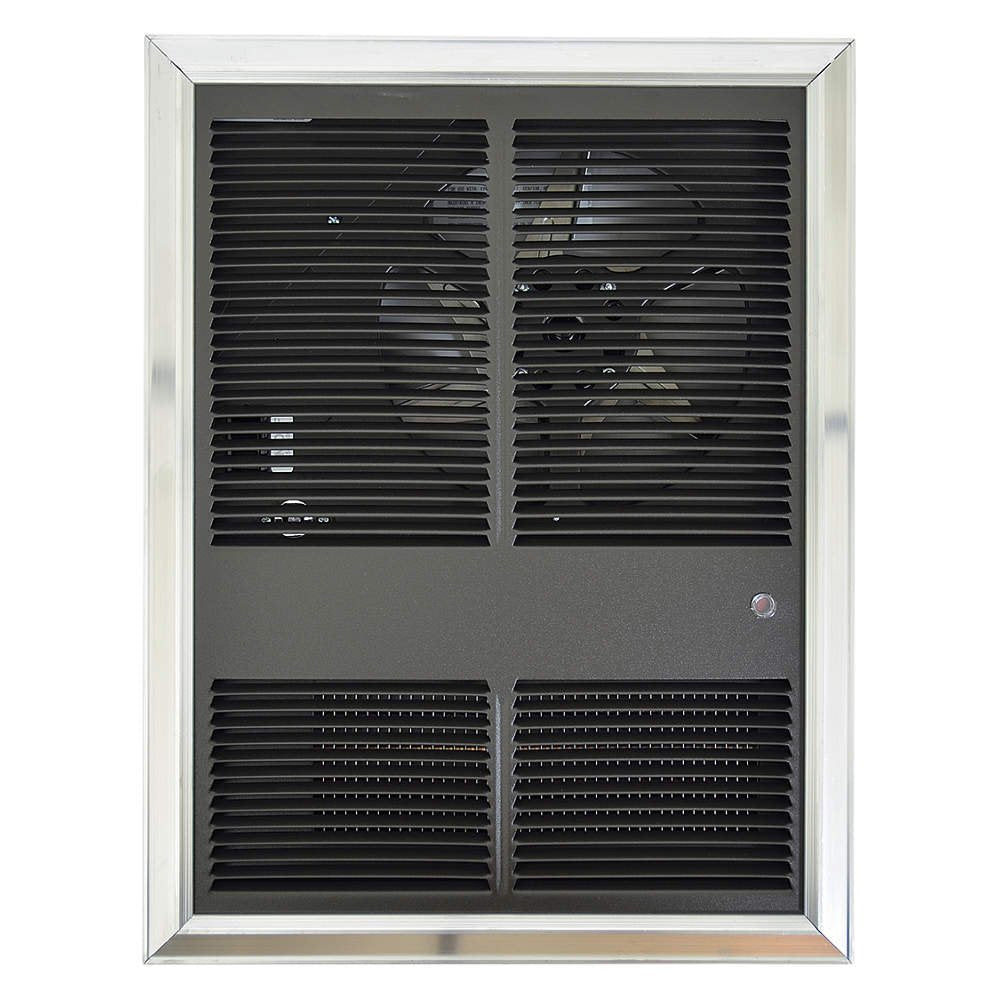

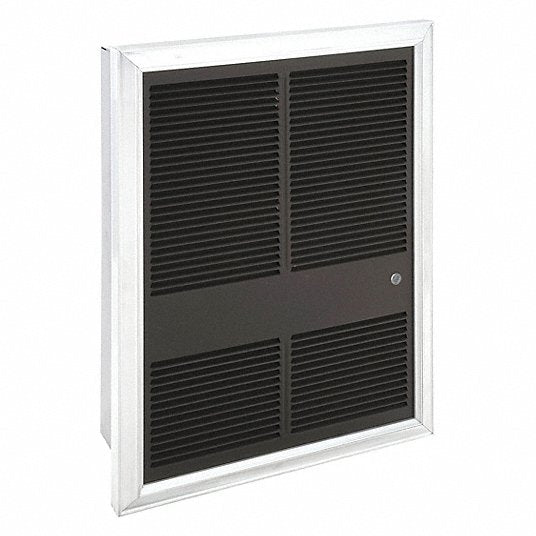

Markel Products G3325TD-RP Electric Wall Heater 3000 Watts 10,240 BtuH

Product Description

The MARKEL PRODUCTS G3325TD-RP is an architectural electric wall heater designed for recessed or surface mounting. Operating at 277VAC, 1 phase, it delivers 3000 Watts and 10,240 BtuH, suitable for heating offices, reception rooms, and residential spaces. It features a 60 Hz frequency and draws 10.8 Amps AC. The unit includes a powder-coated 18 gauge steel grille with an extruded aluminum frame.

• Recessed or surface mounting for versatile installation.
• Features a built-in tamper-proof thermostat and disconnect switch.
• Equipped with an automatic fan delay circuit and automatic reset thermal limit.

Product Highlights

This fan-forced electric wall heater provides 3000 Watts of heating, 10,240 BtuH, and operates at 277VAC. It is ETL Listed for US and Canada.

Product Information

Standard Information

• Brand: MARKEL PRODUCTS
• Manufacturer Part Number: G3325TD-RP
• Country of Origin: USA

Technical Specifications

• Heater Type: Architectural Electric Wall Heater
• Wattage: 3000 Watts
• Heating Capacity: 10,240 BtuH
• Input Voltage: 277VAC
• Phase: 1
• Amperage: 10.8 Amps AC
• Frequency: 60 Hz
• Mounting Type: Recessed or Surface
• Air Temperature Rise: 65 Degrees F
• Grille Material: Steel, 18 ga. Powder Coated Grill, with Extruded Aluminum Frame
• Manufacturer: MARKEL PRODUCTS
• Brand: Markel
• Product Category: SPACE_HEATER
• Product Group: BISS
• Number of Items: 1
• Package Quantity: 1
• Air Flow: 175 cfm
• Certifications: ETL Listed for US and Canada
• Control Type: Mechanical Selector Dial
• Grille Finish: Powder Coated
• Heating Method: Fan Forced
• Rough-In Depth: 4 in
• Rough-In Width: 14 1/8 in
• Rough-In Height: 19 1/2 in
• Thermostat: Tamper-Resistant Unit-Mounted
• Disconnect Switch: Yes
• Thermal Overheat Protection: Automatic Reset
• Automatic Fan Delay: Yes
• Minimum Mounting Height from Floor: 10 in
• Programming Capability: Not Programmable
• Tamper Resistant: Yes
• Thermostat Contact Type: Single Pole
• Housing Depth: 3 3/4 in
• Housing Height: 19 5/16 in
• Housing Width: 13-7/8 In.
• Grille Depth: 1 In.
• Grille Height: 20-27/32 In.
• Grille Width: 15-29/32 In.
• Plug Type: Hardwired
• Weight: 29 lbs
