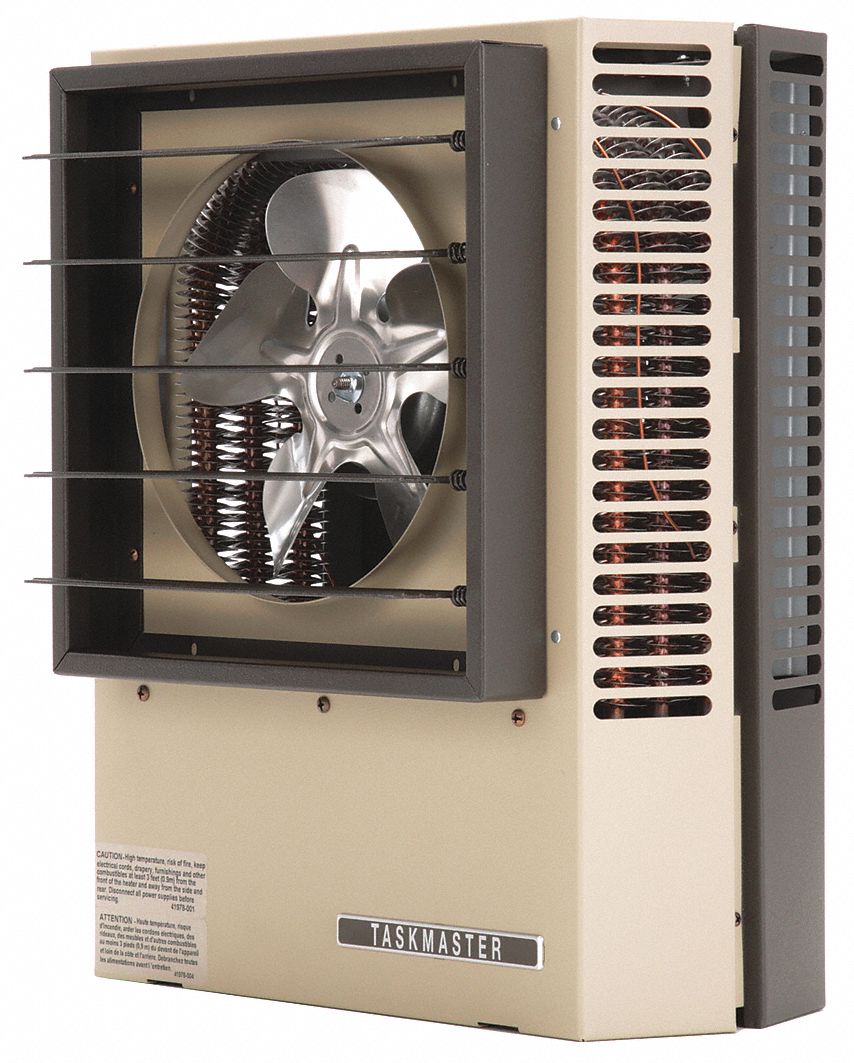

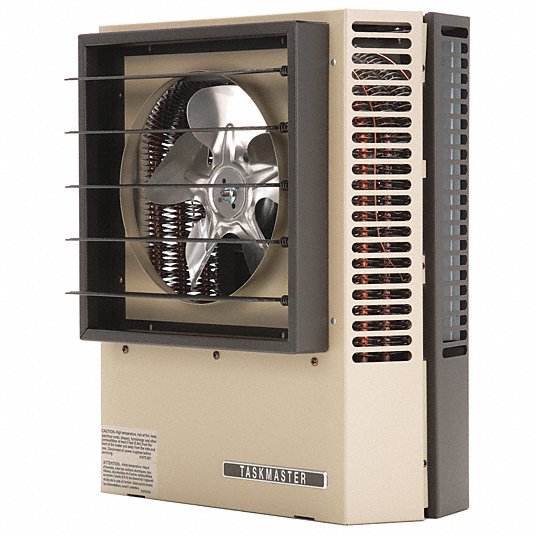

Markel Products G1G5105N Electric Unit Heater 5.0 kW (Ceiling/Wall)

Product Description

Markel Products G1G5105N is an electric unit heater rated 5.0 kW (17,100 BtuH) for 277 V single-phase systems. The fan-forced heater operates at 60 Hz and draws approximately 18.1 A, delivering 400 CFM airflow with a 40 F temperature rise and a horizontal air throw up to 12 ft. It mounts on ceilings or walls, has an 18 gauge steel powder-coated housing, adjustable louvers, and a hinged latched access door.

• 277 V AC, 5.0 kW (5000 W) single-phase operation; approx. 18.1 A at 60 Hz
• Fan-forced design with 400 CFM airflow, 40 F temperature rise, horizontal air throw up to 12 ft

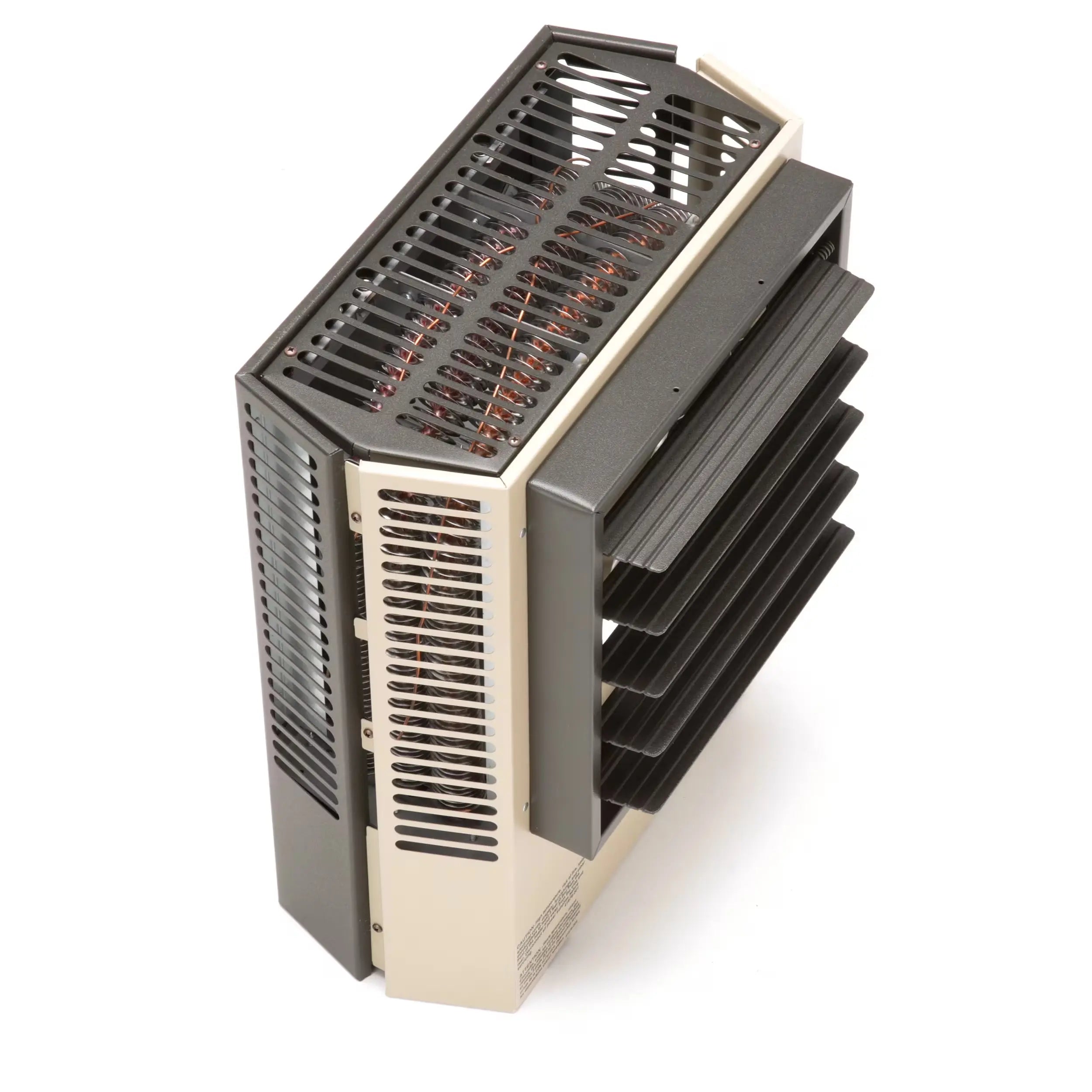

• 18 gauge steel powder-coated housing, adjustable louvers, hinged and latched access door

Product Highlights

5.0 kW 277 V ceiling/wall fan-forced unit heater; 400 CFM, 40 F rise; ETL listed.

Product Information

Standard Information

• Brand: MARKEL PRODUCTS
• Manufacturer Part Number: G1G5105N
• Country of Origin: USA

Technical Specifications

• Brand: Markel Products
• Manufacturer: TPI (Markel/Raywall/Fostoria)
• Manufacturer Part Number: G1G5105N
• GTIN: 7441845250510
• Input Voltage: 277 V AC
• Power: 5.0 kW (5000 W)
• Heating Capacity: 17,100 BtuH
• Phase: Single-phase
• Input Current: 18.1 A
• Frequency: 60 Hz
• Air Flow: 400 CFM
• Air Temperature Rise: 40 F
• Mounting Type: Ceiling or wall (horizontal or vertical discharge)
• Horizontal Air Throw: 12 ft
• Vertical Mounting Height: 9 ft
• Dimensions: 14-15/32 in. W x 6-1/2 in. D x 17-3/4 in. H
• Housing Material: 18 gauge steel
• Housing Finish: Powder coated
• Contactor Coil Voltage: 277 V
• Control Voltage: 24 V AC
• Heating Method: Fan forced
• Heating Element: Copper-clad steel sheath with brazed steel fins
• Motor: Totally enclosed, permanently lubricated, thermally protected
• Overheat Protection: Automatic reset limit controls

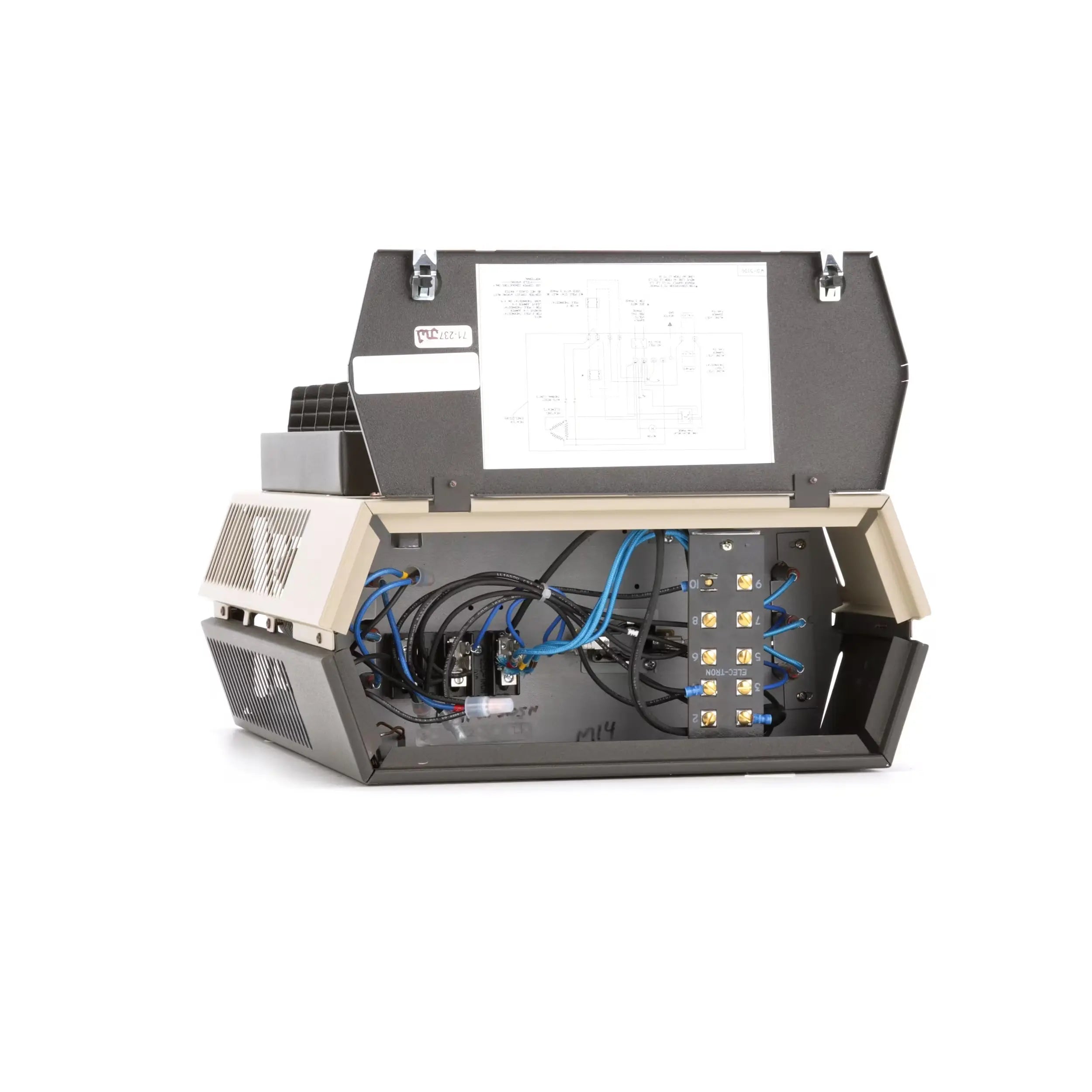

• Includes: Adjustable louvers; direct wire with hinged and latched access door
• Requires: Mounting bracket; thermostat
• Listings: ETL listed for US and Canada
• Country of Origin: USA (subject to change)
