Markel Products ET9S4TS Single Pole Thermostat

Product Description

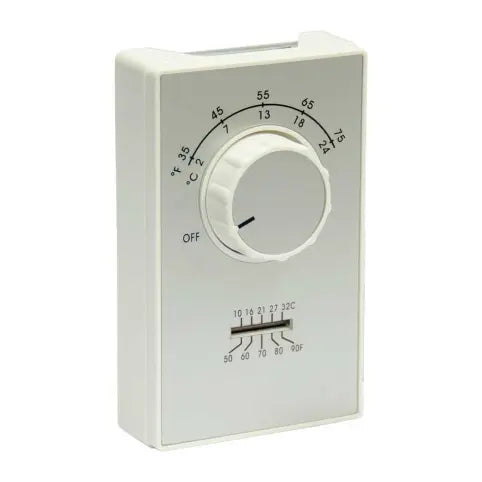

The Markel Products ET9S4TS is a single pole, wall-mounted line voltage thermostat designed for heating applications. It is built with a snap-action switch and a bimetal actuator, suitable for direct connection to resistance heating elements and unit heaters. This model includes a thermometer and terminals for easy setup.

• Temperature range from 35 to 75 degrees Fahrenheit.
• Features both Celsius and Fahrenheit scales.
• SPST switch type for straightforward operation.

Product Highlights

Ideal for heat-only systems, the ET9S4TS provides reliable temperature control in residential and commercial environments.

Product Information

Standard Information

• Manufacturer: TPI (Markel/Raywall/Fostoria)
• Voltage: 120/208/240/277 Volt

Technical Specifications

• Amperage: 22 Amp
• Color: White
• Width: 2.75 inches
• Height: 4.75 inches
• Depth: 2.75 inches
• Finish: Plastic
• Listing Agency: UL/CSA
• Product Type: Thermostat
• Switch Type: SPST
• Manufacturer Part Number: ET9S4TS
• Temperature Range: 35 to 75 degrees F
• Mounting Orientation: Vertical mounting
• Programmability: Non-programmable
• Thermostat Type: Line voltage
