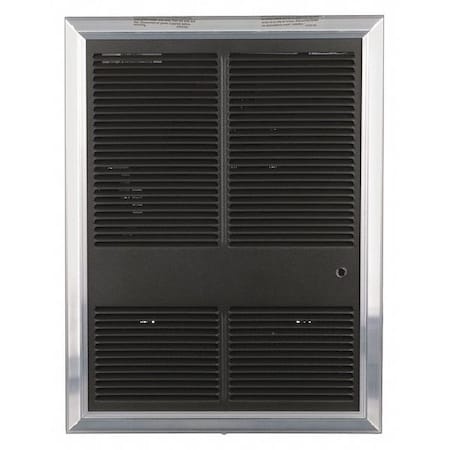

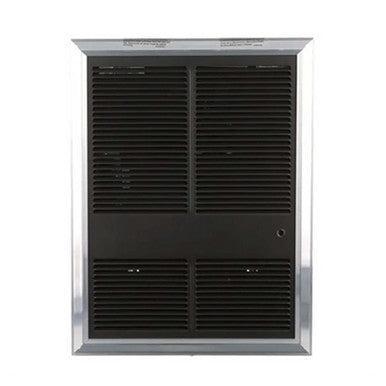

Markel HF3326TD-RP Recessed Electric Wall-Mount Heater 3000/4000 W

Product Description

The MARKEL HF3326TD-RP is a recessed electric wall-mount heater, designed for architectural applications. This fan-forced unit provides 3000/4000 watts of heating power, delivering 10,350/13,800 BtuH. It operates on 208/240V AC, single-phase power, with an amperage draw of 14.4A/16.7A. Suitable for both recessed and surface mounting, it features an 18 ga steel grille and a 60 Hz frequency, with an air flow of 175 cfm.

• Automatic Reset Thermal Limit for enhanced safety
• Single Pole Tamper-Proof Built-In Thermostat for precise control
• Automatic Fan Delay Circuit for efficient operation

Product Highlights

Recessed or Surface Mounting, 3000/4000W, 208/240V AC, 175 CFM Air Flow

Product Information

Standard Information

• Brand: MARKEL PRODUCTS
• Manufacturer Part Number: HF3326TD-RP
• Country of Origin: United States

Technical Specifications

• Frequency: 60 Hz
• Heating Capacity: 10,350/13,800 BtuH
• Product Type: Recessed Electric Wall-Mount Heater
• Color: Brown/Aluminum
• Electric Heater Phase: 1
• Wattage Output: 3,000W/4,000W
• Finish: Powder Coated
• Amperage: 14.4A/16.7A
• Voltage: 208/240V AC, 1-phase
• Air Flow: 175 cfm
• Includes: Disconnect Switch, Thermostat
• Standards: ETL Listed for US and Canada
• Control Type: Mechanical Selector Dial
• Grille Color: Brown, Gray
• Grille Depth: 1 in
• Grille Width: 15 7/8 in
• Grille Finish: Powder Coated
• Grille Height: 20 13/16 in
• Hold Function: No
• Housing Depth: 3 3/4 in
• Housing Width: 13 7/8 in
• Mounting Type: Recessed or Surface
• Air Temp. Rise: 72 Degrees F
• Heating Method: Fan Forced
• Housing Height: 19 5/16 in
• Rough-In Depth: 4 in
• Rough-In Width: 14 1/8 in
• Filter Included: No
• Grille Material: 18 ga Steel
• Rough-In Height: 19 1/2 in
• Setback Control: No
• Housing Material: Steel
• Occupancy Sensor: No
• Tamper Resistant: Yes
• Disconnect Switch: Yes
• Fan Only Operation: No
• Smart Connectivity: No Connectivity
• Wall Opening Depth: 4 in
• Wall Opening Width: 14-3/16 in
• Thermostat Included: Tamper-Resistant Unit-Mounted
• Wall Opening Height: 19-7/16 in
• Electric Heater Item: Electric Wall Heater
• Electric Heater Type: Architectural
• Programming Capability: Not Programmable
• Thermostat Contact Type: Single Pole
• Heater Mounting Position: Vertical Burn
• Remote Control Functions: No Remote Control Included
• Wattage Field Convertible: Yes
• Thermal Overheat Protection: Automatic Reset
• Automatic Fan Delay (On/Off): Yes
• Minimum Mounting Height from Floor: 10 in
• Building Management System Compatible: No
