Markel HF3316T2RPW Commercial Wall Heater 4000/1500 W (Recessed/Surface) 31TR49

Product Description

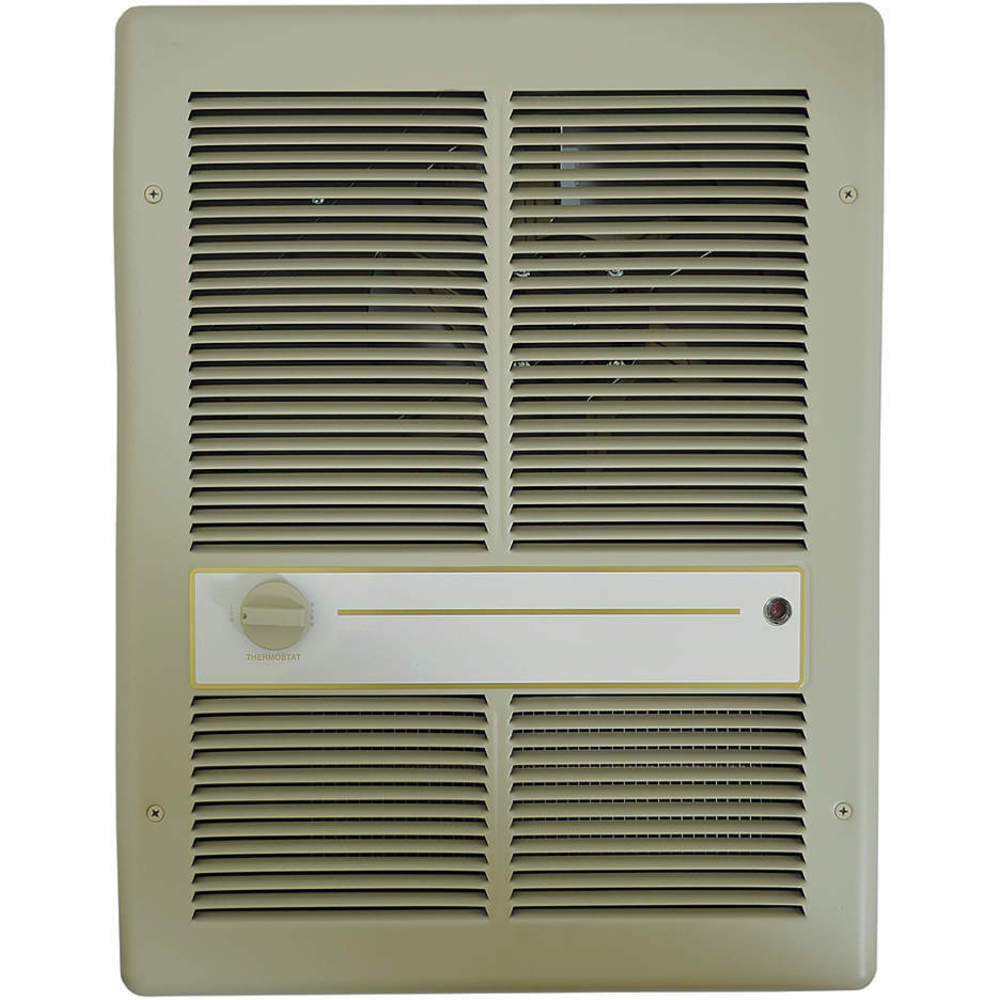

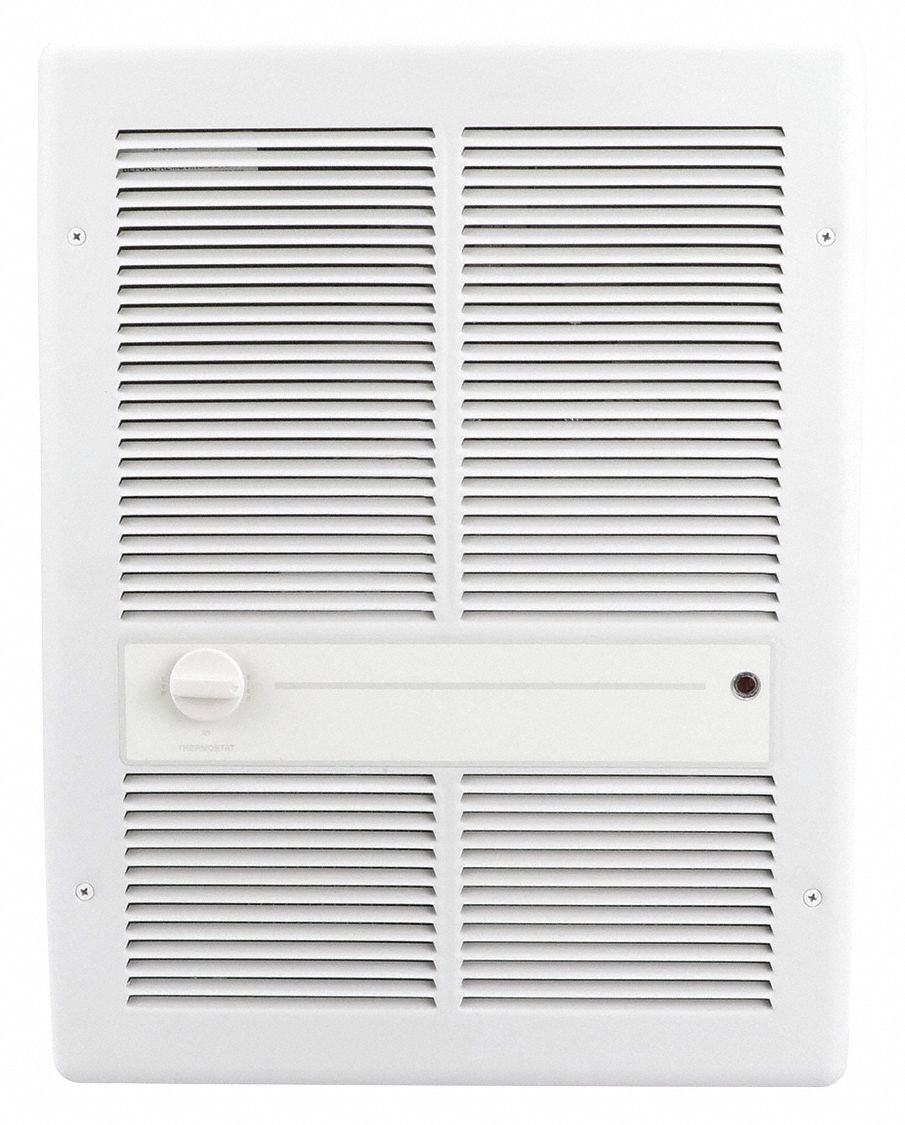

Markel Products HF3316T2RPW is a recessed or surface commercial electric wall heater with selectable 1500 W or 4000 W output for 208/240 V, 60 Hz single-phase supply. The unit provides 5,118 / 13,658 BtuH with a 75°F air temperature rise and uses a 600 rpm fan to deliver 175 cfm. It includes a double-pole unit-mounted thermostat, automatic-reset thermal limit, and an 18 gauge powder-coated steel grille.

• Selectable 1500 W or 4000 W output; 208/240 V AC, 60 Hz, single-phase; 7.2/16.8 A
• Fan-forced heating with 600 rpm fan producing 175 cfm and 5,118 / 13,658 BtuH; 75°F air temperature rise
• Double-pole unit-mounted thermostat, automatic-reset thermal limit; 18 ga powder-coated steel grille; ETL and C/US certified

Product Highlights

Commercial recessed or surface wall heater, selectable 1500/4000 W output, 600 rpm/175 cfm fan, unit-mounted double-pole thermostat, ETL and C/US listed

Product Information

Standard Information

• Brand: MARKEL PRODUCTS
• Manufacturer Part Number: HF3316T2RPW
• Country of Origin: United States

Technical Specifications

• Brand: Markel Products
• Manufacturer Part Number: HF3316T2RPW
• Replacement MPN: 31TR49
• Product Type: Electric wall heater (commercial/industrial)
• Power (Watts): 1500 / 4000 W
• Input Voltage: 208/240 V AC
• Frequency: 60 Hz
• Phase: Single phase
• Current (Amps): 7.2 / 16.8 A AC
• Heating Capacity (BtuH): 5,118 / 13,658 BtuH
• Air Temperature Rise: 75 °F
• Heating Method: Fan-forced
• Fan Speed: 600 rpm
• Airflow: 175 cfm
• Thermostat: Double-pole, unit-mounted
• Thermal Protection: Automatic reset thermal limit
• Mounting Type: Recessed or surface
• Grille Material: 18 gauge powder-coated steel
• Grille Dimensions (W x H x D): 15-3/8" x 20-9/64" x 1"
• Housing Dimensions (W x H x D): 13-7/8" x 19-3/4" x 3-3/4"
• Wall Opening Required (H x W x D): 19-15/16" x 14-3/16" x 4"
• Rough-In Dimensions (H x W x D): 19-1/2" x 14-1/8" x 4"
• Grille Finish: Powder coated
• Housing Material: Steel
• Standards: ETL and C/US
• Country of Origin: United States
