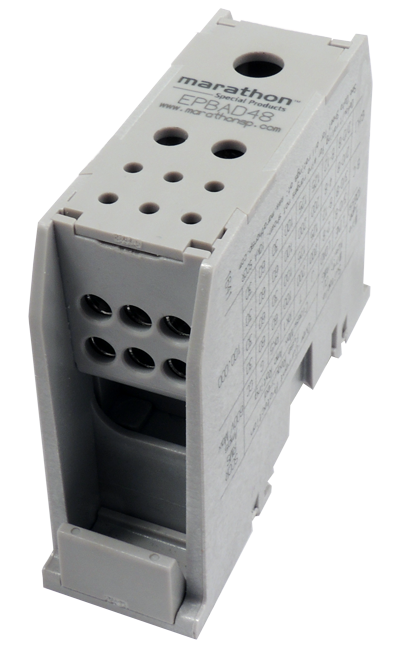

Marathon Special Products EPBAD48 Panel Mount Barrier Terminal Block 200 A 600 V (1 Pole)

Product Description

Marathon Special Products EPBAD48 is a panel-mount barrier terminal block rated for 200 A and 600 V in a single-pole configuration, intended for heavy-duty power distribution and industrial panel wiring. The line side uses one screw connection per pole with a maximum wire size of 000 AWG; the load side provides eight screw connections per pole. The unit is RoHS compliant and designed for panel or DIN mounting.

• Rated current 200 A and rated voltage 600 V, single-pole configuration
• Line side: 1 screw connection per pole (max 000 AWG); load side: 8 screw connections per pole
• RoHS compliant with panel- and DIN-mountable options for industrial power distribution

Product Highlights

Panel-mount single-pole power distribution block with 1 line-side screw (000 AWG max) and 8 load-side screw connections; RoHS compliant; suited for industrial panel wiring.

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: EPBAD48
