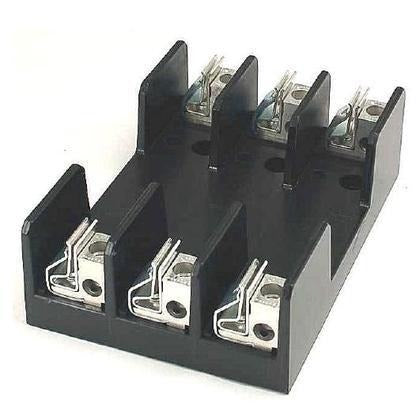

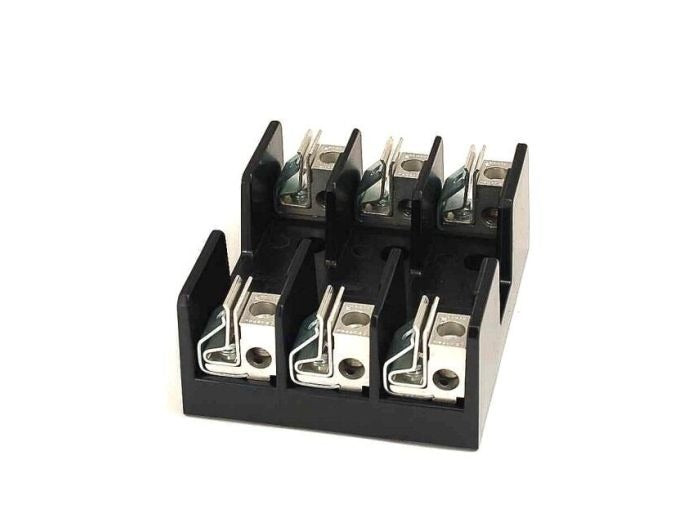

Marathon Special Products 6R100A3B Class R Fuseblock 100 A (3-Pole)

Product Description

Marathon Special Products 6R100A3B is a Class R 3-pole fuseblock rated 100 A and 600 V for panel mount installation. It features a phenolic insulator, box lug terminals with reinforced spring clips, and a 200 kA interrupting rating. The unit accepts Class R fuses (including RK1 and RK5 rejection types) and accommodates copper and aluminum conductors within the specified gauge range for overcurrent protection in power distribution panels.

• 3-pole Class R fuseblock rated 100 A, 600 V with phenolic construction and reinforced clips
• Box lug terminals with spring clip reinforcement; wire range 2/0–#14 AWG (CU) and 2/0–#12 AWG (AL)
• Panel/surface mountable design with 200 kA interrupting rating and UL, CSA, CE approvals

Product Highlights

3-pole, 100 A Class R fuseblock with box lug terminals and reinforced clips; 600 V rating, 200 kA interrupting capacity, phenolic base, UL/CSA/CE compliant.

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 6R100A3B
