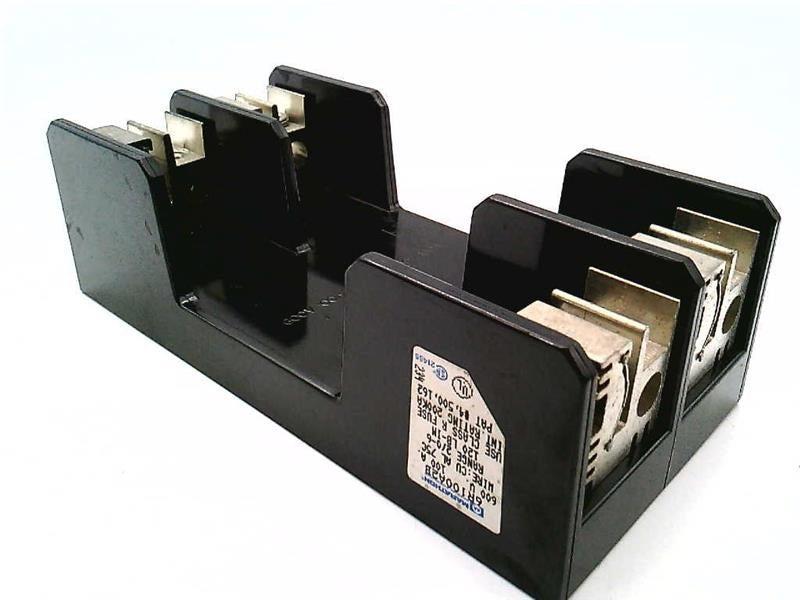

Marathon Special Products 6R100A2B Power Distribution Block 100A/600V (2-Pole)

Product Description

Marathon Special Products 6R100A2B is a two-pole power distribution block (fuse block) rated 100 A at 600 V designed for panel and circuit protection applications. It features R-box lug terminals and reinforced spring clips for secure conductor connections, and a phenolic base with a 2/0 to #14 AWG copper and 2/0 to #12 AWG aluminum wire range. The unit accepts Class RK1 and RK5 rejection-type fuses and includes DIN rail adapter and cover options.

• Two-pole fuse block rated 100 A and 600 V with R-box lug terminals and reinforced spring clips.
• Phenolic base; wire range 2/0 to #14 AWG copper and 2/0 to #12 AWG aluminum; DIN rail adapters and covers available.
• Accepts Class RK1 and RK5 rejection-type fuses (30 A–200 A; 250 V–600 V AC/DC); UL recognized, CSA certified, CE compliant.

Product Highlights

Two-pole 100 A/600 V fuse block with R-box lug terminals and Class R fuse compatibility

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 6R100A2B
