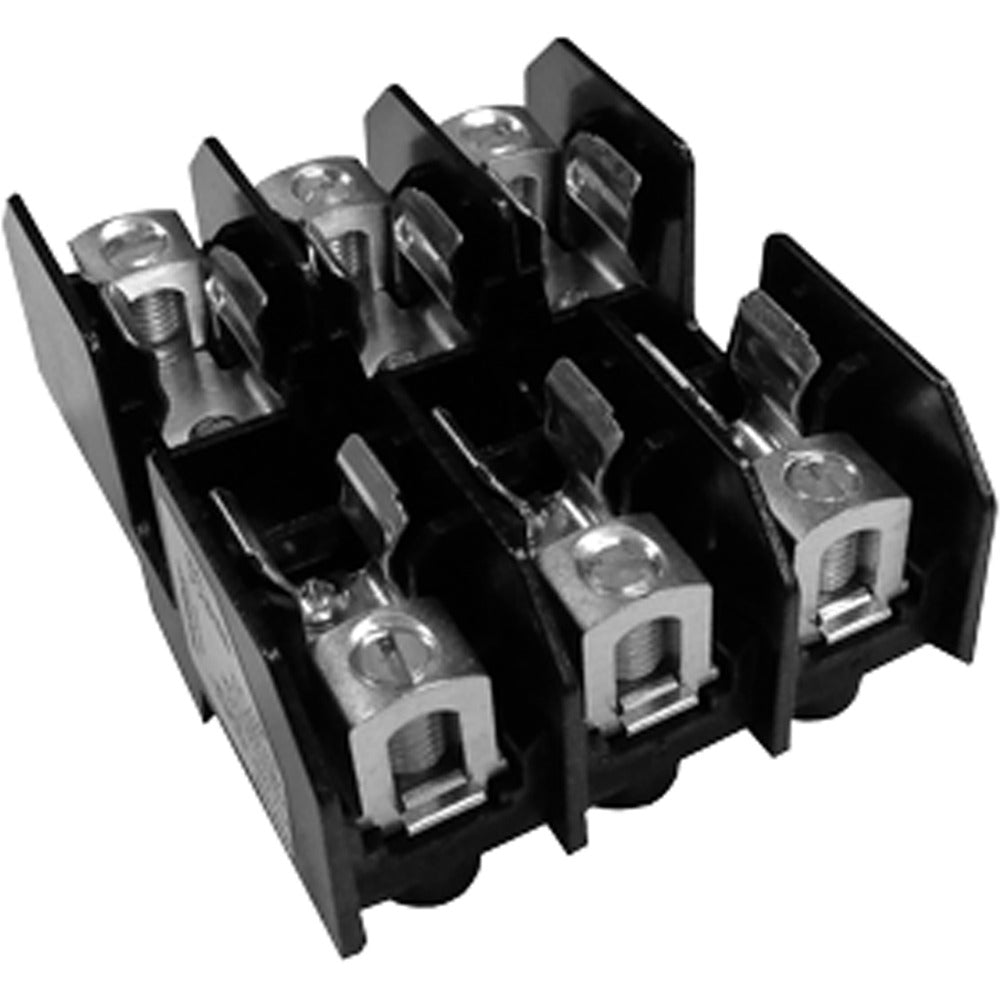

Marathon Special Products 6M30A3B Midget fuseblock 30 A (3 pole) 784337 39261

Product Description

Marathon Special Products 6M30A3B is a 3-pole midget fuseblock for panel mounting rated 30 A at 600 V. It accepts 13/32 in diameter by 1 1/2 in midget fuses and uses box lug terminals compatible with 6–14 AWG copper wire. The thermoplastic body contains tin-plated copper-alloy clips and is tested to a 100,000 amp interrupting capacity with UL listing (E35113) and CSA certification (LR21455). Dimensions: 1.30 x 2.35 x 3.05 in; net weight 0.22 lb.

• Rated 30 A, 600 V; 3 poles for Class M (midget) fuses
• Panel-mount thermoplastic body with box lug terminals for 6–14 AWG copper
• Tin-plated copper-alloy clips; 100,000 A interrupting capacity; UL listed and CSA certified

Product Highlights

3-pole Class M midget fuseblock, 30 A/600 V, panel mount with box lug terminals and 100 kA interrupting capacity

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 6M30A3B
