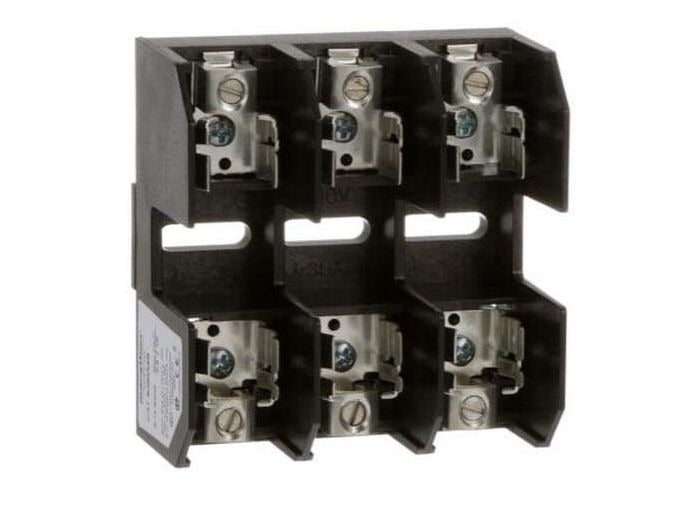

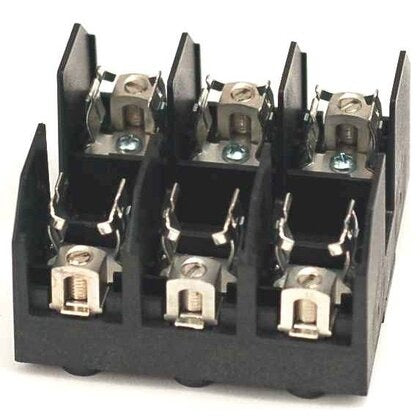

Marathon Special Products 6J30A3B Fuseblock 30 A / 600 V (3-Pole)

Product Description

Marathon Special Products 6J30A3B is a Class J fuseblock rated 30 A and 600 V, configured as a 3-pole unit with box lug terminals. The fuseblock features an integral DIN rail mount on the 30 A model and thermoplastic construction. It is tested for a 200 kA interrupting capacity and carries CE, CSA, and UL approvals. The device supports conductor gauges 14–6 and is intended for industrial power distribution and branch circuit protection.

• 3-pole Class J fuseblock rated 30 A and 600 V with 200 kA interrupting capacity
• Box lug terminals and integral DIN rail mounting; accommodates conductor gauge 14–6
• Thermoplastic construction with CE, CSA, and UL approvals; dimensions 1.95" x 3.25" x 3.38"

Product Highlights

Class J, 3-pole fuseblock — 30 A / 600 V rating, box lug terminals, integral DIN rail mount, 200 kA interrupting capacity, CE/CSA/UL approvals

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 6J30A3B
• Country of Origin: United States
