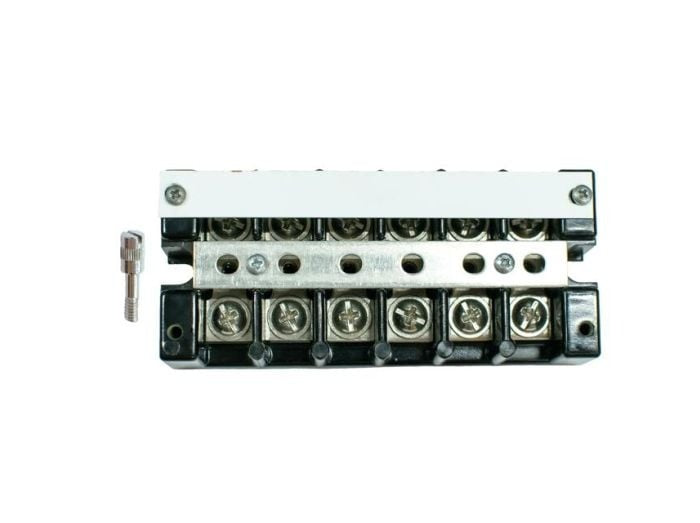

Marathon Special Products 1506SC Terminal Block 30A 600V (6-Pole)

Product Description

Marathon Special Products 1506SC is a 6-pole terminal block from the 1500 series for surface-mount electrical connections. It features screw-clamp connections with top wire entry, is rated 30 A and 600 V, and supports up to 75 A when used with prepared or crimp terminals. The unit includes four shorting pins and carries CE, CSA, and UR approvals for use in control panels and current transformer applications.

• Screw clamp connection with top wire entry; surface-mount design; includes four shorting pins
• Electrical rating 30 A, 600 V (supports up to 75 A with prepared/crimp terminals); accepts 10–22 AWG bare wire
• 6 poles with 15.88 mm center spacing; approvals: CE, CSA, UR

Product Highlights

6-pole surface-mount terminal block, 30 A/600 V rating, accepts 10–22 AWG, 75 A capability with crimp terminals, includes shorting pins and CE/CSA/UR approvals

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 1506SC
• Country of Origin: United States
