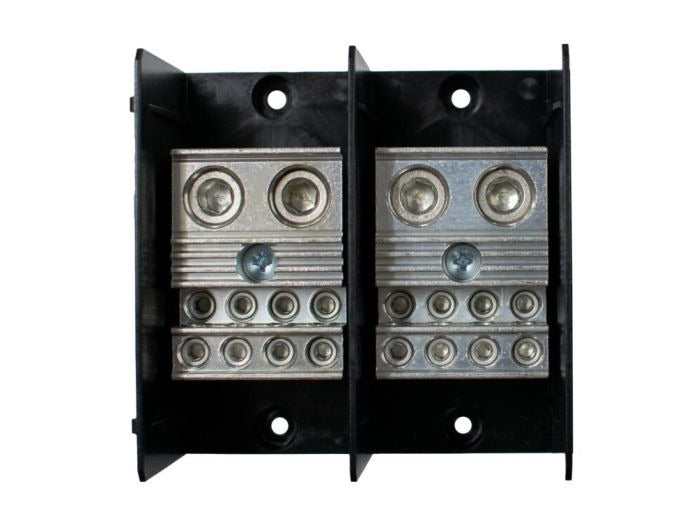

Marathon Special Products 1452586 Power Distribution Block 760A (2 Pole)

Product Description

Marathon Special Products 1452586 is a two-pole power distribution block rated 760 A and 600 VAC for panel-mount power distribution. The phenolic-insulated unit provides box-lug to box-lug electrical connections with two inputs per pole and up to eight outputs per pole. It supports line-side wire sizes from 500 kcmil to 4 AWG and output wire sizes from 2/0 to 14 AWG, and carries CE, CSA, and UL approvals.

• Rated 760 A, 600 VAC; two poles with two inputs per pole and eight outputs per pole
• Panel-mount configuration with box lug to box lug connections; supports line-side 500 kcmil–4 AWG and output 2/0–14 AWG
• Phenolic construction; approvals include CE, CSA, and UL; RoHS compliant

Product Highlights

Two-pole, 760 A panel-mount power distribution block with box-lug connections and wide wire range

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 1452586
• Country of Origin: United States
