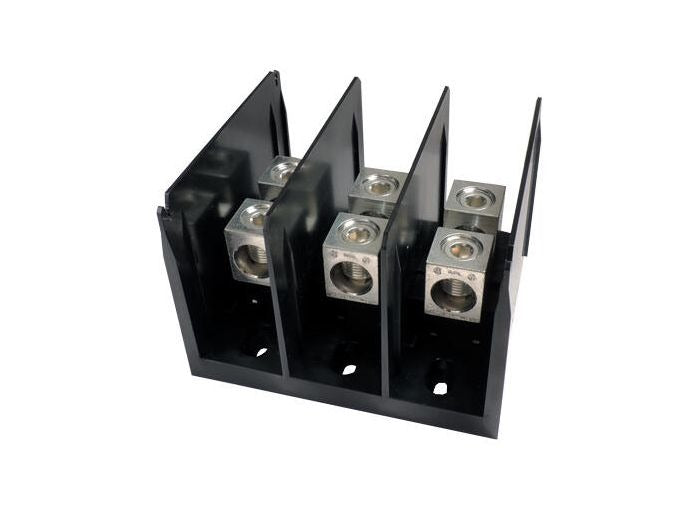

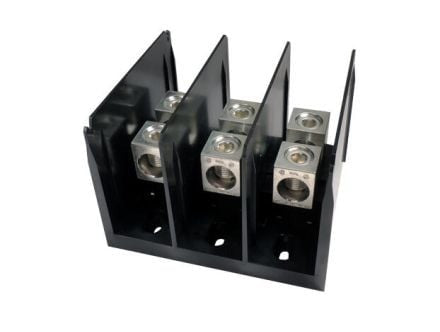

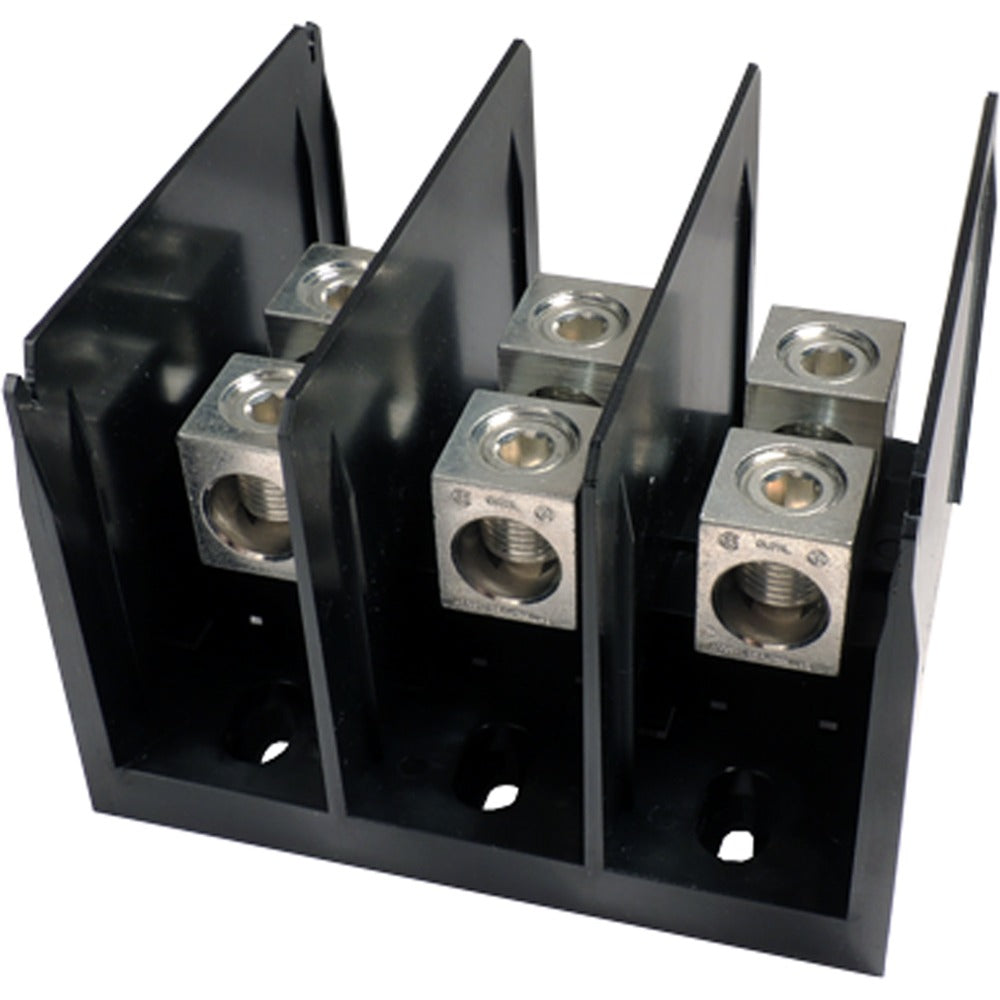

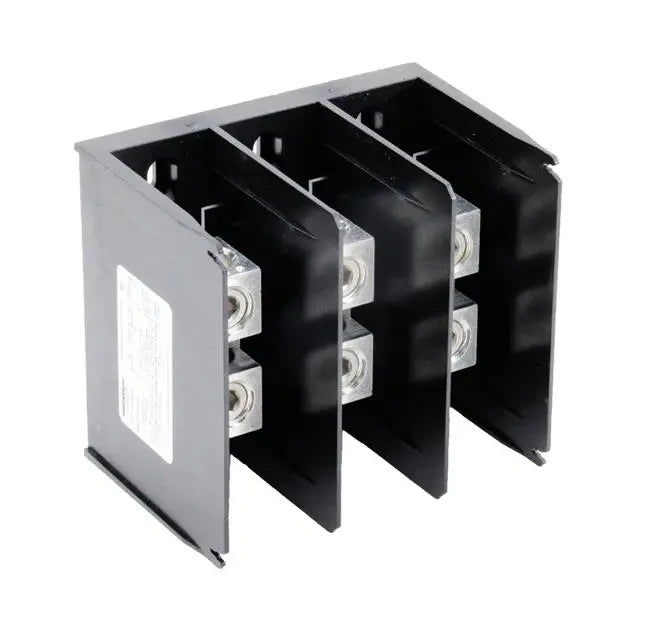

Marathon Special Products 1343582 Power Distribution Block 310 A 600 V (3 Pole)

Product Description

Marathon Special Products 1343582 is a panel-mount power distribution block rated 310 A at 600 V with three poles. It accepts one connector opening per pole on both line and load and accommodates conductors from 350 kcmil to 6 AWG using screw-to-screw aluminum connectors and a thermoplastic insulator. The insulator is UL94V-0 rated; the block meets UL 1059 and CSA 22.2 No.158 and is rated for -40°C to 125°C.

• Accepts 350 kcmil to 6 AWG on line and load; one connector opening per pole; screw-to-screw aluminum connectors.
• Rated 310 A, 600 V; 3-pole open-style, panel mount; dimensions 5.64 in x 5.00 in x 3.92 in; weight 2.73 lb.
• Thermoplastic insulator with UL94V-0 flammability rating; meets UL 1059 and CSA 22.2 No.158; operating temperature -40°C to 125°C.

Product Highlights

3-pole panel-mount distribution block, 310 A / 600 V; accepts 350 kcmil–6 AWG; thermoplastic UL94V-0 insulator; UL 1059 and CSA 22.2 No.158 certified.

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 1343582
• Country of Origin: USA
