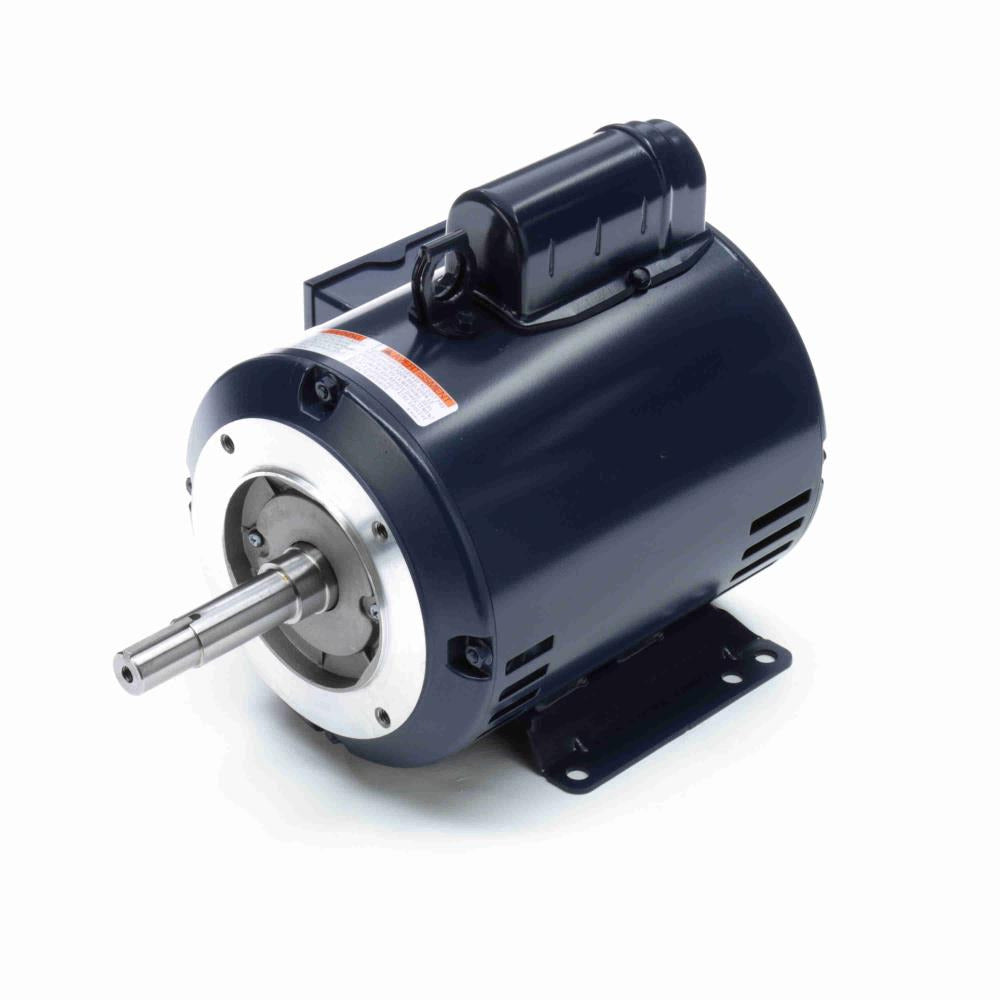

Marathon MZ405A Close Coupled Pump Motor 2 HP 1750 RPM

Product Description

The Marathon MZ405A is a close coupled pump motor providing reliable performance for various pumping applications. This motor operates at two horsepower and runs at a speed of one thousand seven hundred fifty RPM. It features a single phase design and can be connected to both one hundred fifteen and two hundred thirty volts. With an open drip-proof enclosure, it is suitable for many environments.

• Horsepower: 2 HP
• Voltage: 115/230
• Frame Size: 182JM

Product Highlights

Built from rolled steel, the MZ405A offers a rigid base for secure mounting. Its single shaft type further enhances stability during operation. The motor is designed with a starting method of capacitor start, ensuring effective performance under various load conditions.

Product Information

Standard Information

• Electrical Type: Cap Start
• Phase: Single

Technical Specifications

• Amperage: 23.0/11.5
• Rotation: REV
• Mounting Type: Rigid Base
• Overload Protection: No
• Material: Rolled Steel
• Enclosure: ODP
• Frame Size: 182JM
• Weight: Not specified
