Marathon MY604 Vector Duty Motor 1 HP 230/460 Volts

Product Description

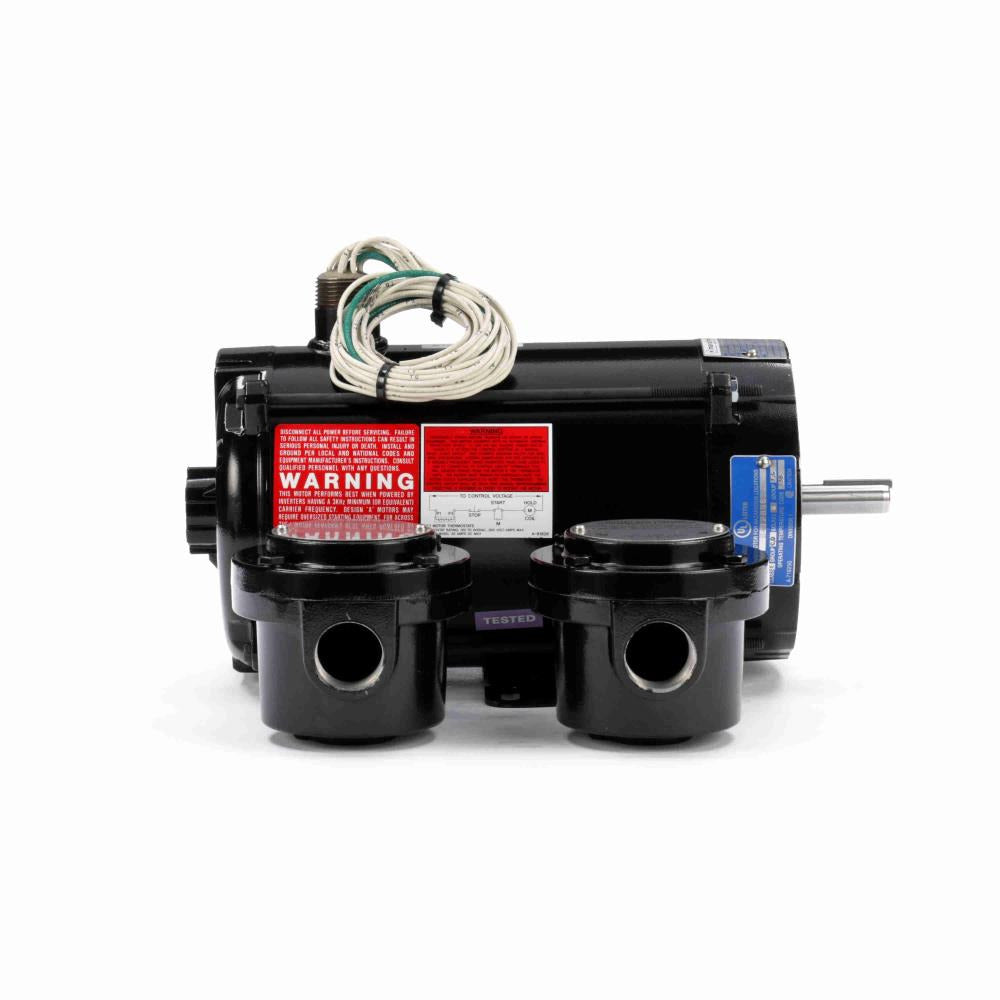

The Marathon MY604 is a three-phase vector duty motor designed for reliable performance in various applications. This motor operates at one horsepower and features a robust construction with rolled steel material. With a speed of one thousand seven hundred twenty-five revolutions per minute (RPM), it is engineered for efficiency.

• Three-phase operation with a voltage range of two hundred thirty to four hundred sixty volts
• Thermostat overload protection for enhanced safety
• C-face and footed mounting options for versatile installation

Product Highlights

The MY604 motor is suitable for industrial applications requiring steady performance and durability.

Product Information

Standard Information

• Brand: Marathon
• MPN: MY604

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1 HP
• RPM: 1725
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure Type: EPNV
• Voltage: 230/460 Volts
• Rotation: REV
• Overload Protection: Thermostat
• Material: Rolled Steel
• Mounting Type: C-Face, Footed
• Amperage: 3.0/1.5 Amps
• Shaft Type: Single
