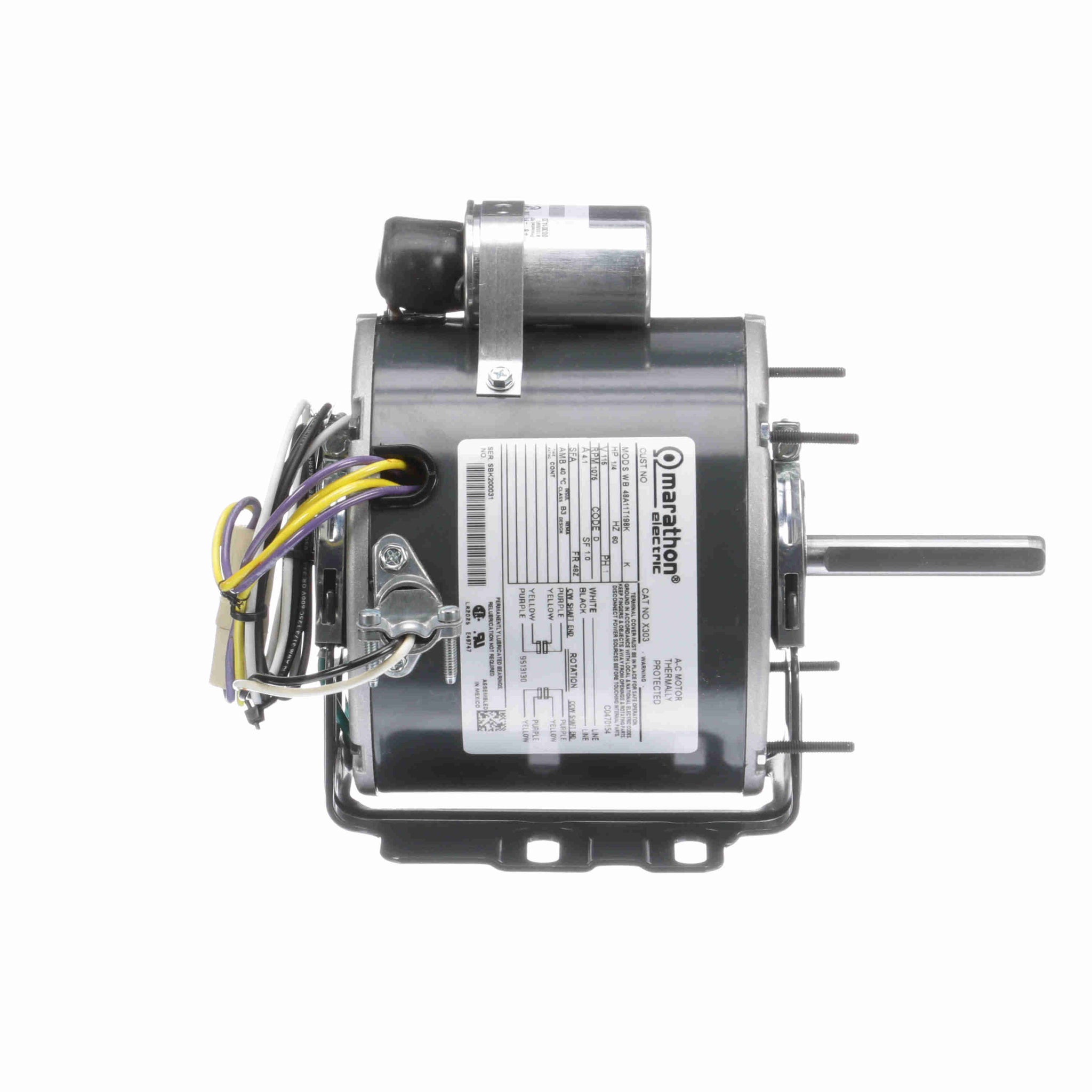

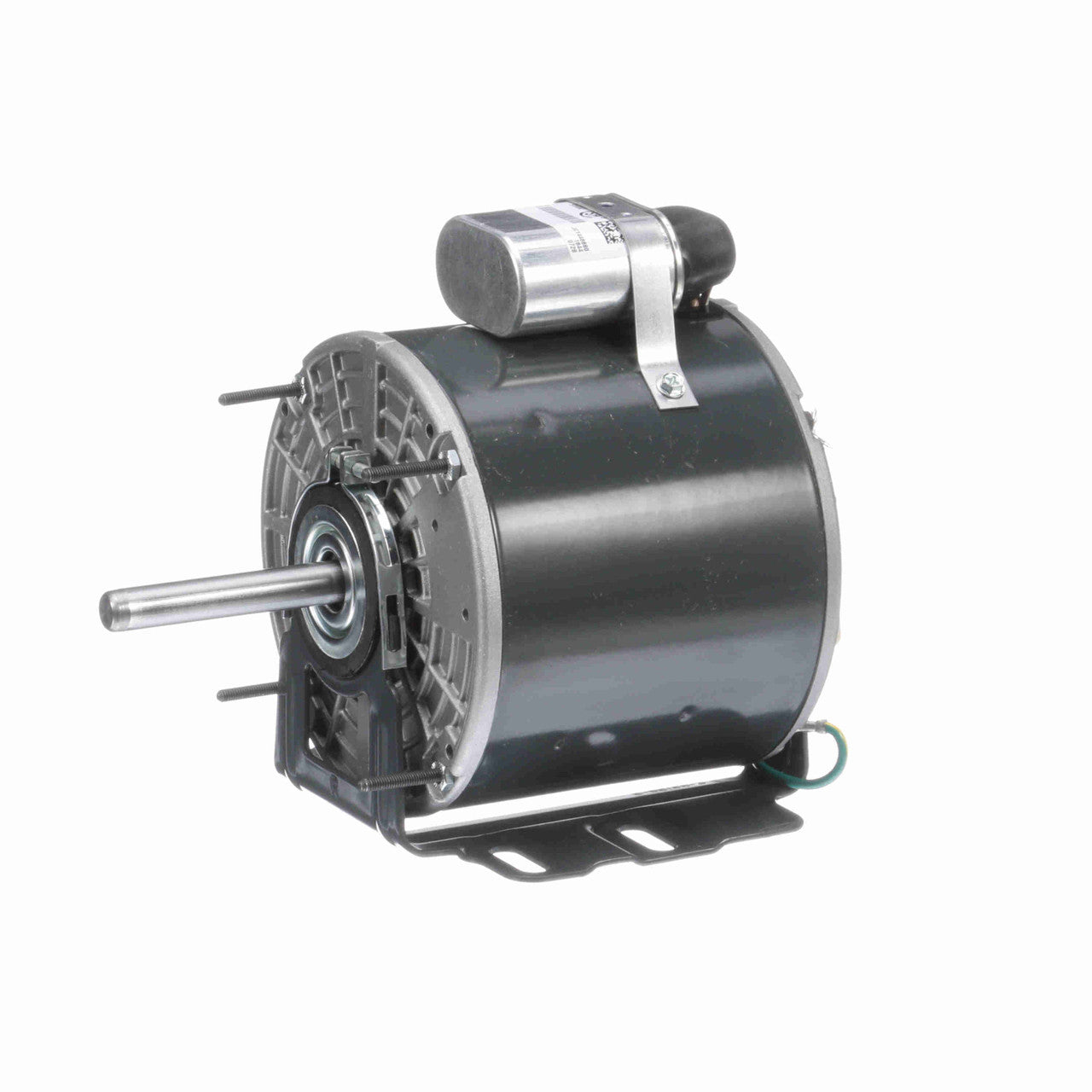

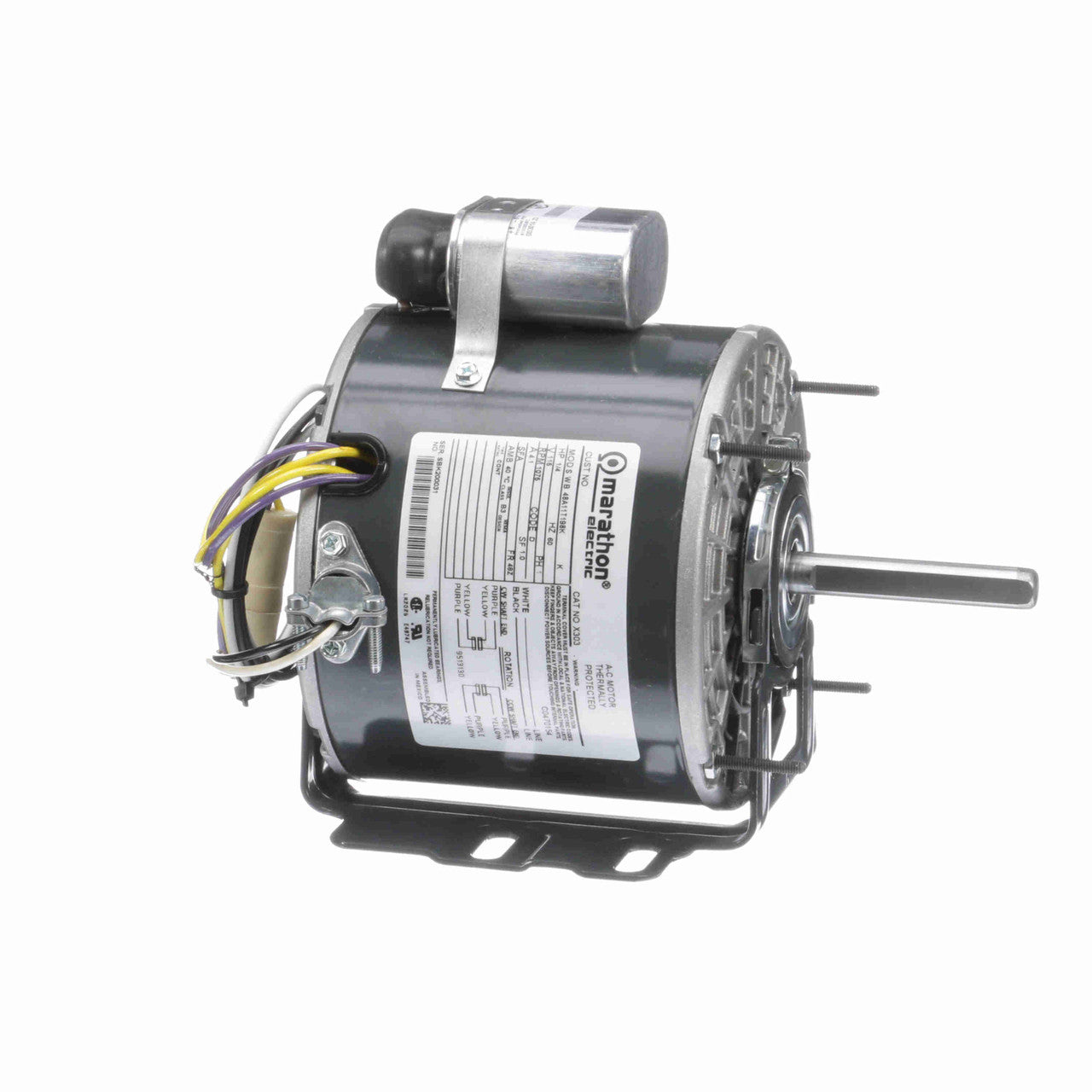

Marathon MX303 Unit Heater Motor 1/4 HP 115V TEAO

Product Description

The Marathon Motors MX303 is a reliable single-phase unit heater motor designed for heating applications. With a permanent split capacitor (PSC) electrical type, it operates effectively at 115V and delivers one-fourth horsepower at one thousand seventy-five RPM. This motor features a totally enclosed air over (TEAO) design, ensuring durability and resistance to environmental factors.

• Electrical Type: Permanent Split Capacitor
• Enclosure Type: Totally Enclosed Air Over
• Suitable for both horizontal and vertical mounting

Product Highlights

This motor is equipped with automatic reset thermal protection for enhanced safety. Built from a rolled steel frame, it is designed for a variety of unit heater applications.

Product Information

Standard Information

• Brand: Marathon
• MPN: MX303

Technical Specifications

• Power: 1/4 HP
• Voltage: 115V
• Current: 4.1A
• RPM: 1075
• Ambient Temperature: 40°C
• Frame Size: 48Y
• Shaft Dimensions: 1/2 inches x 2-3/4 inches
• Insulation Class: B
