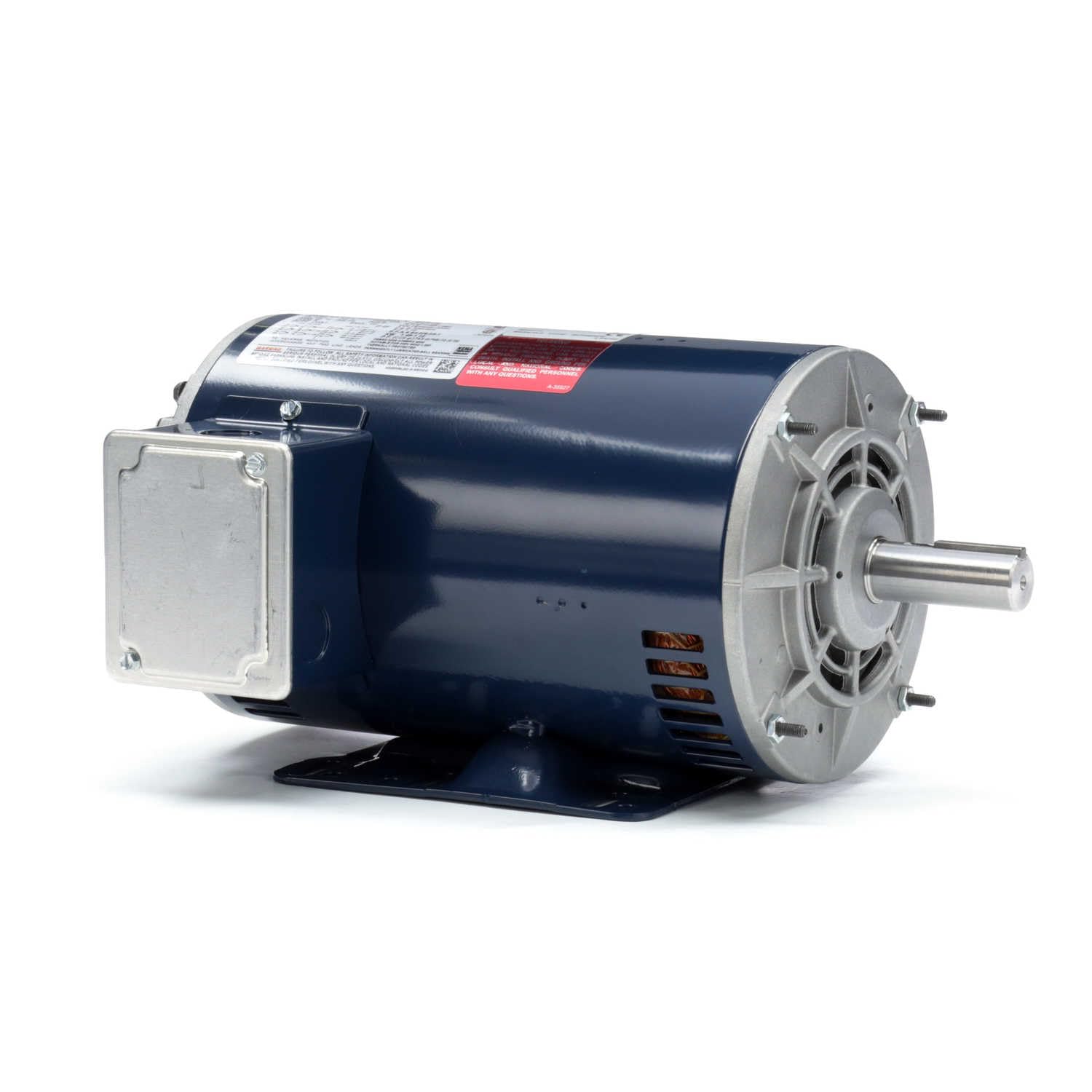

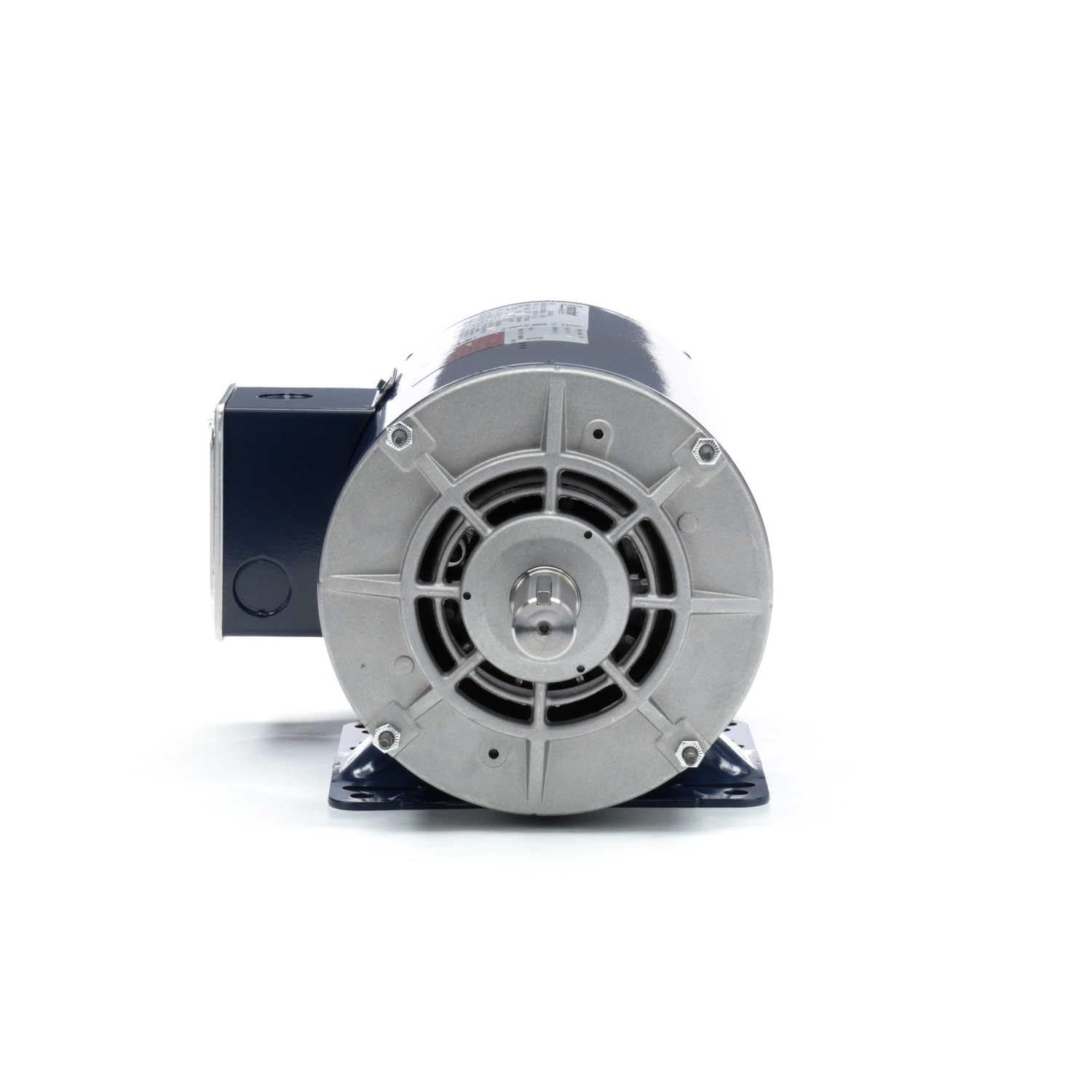

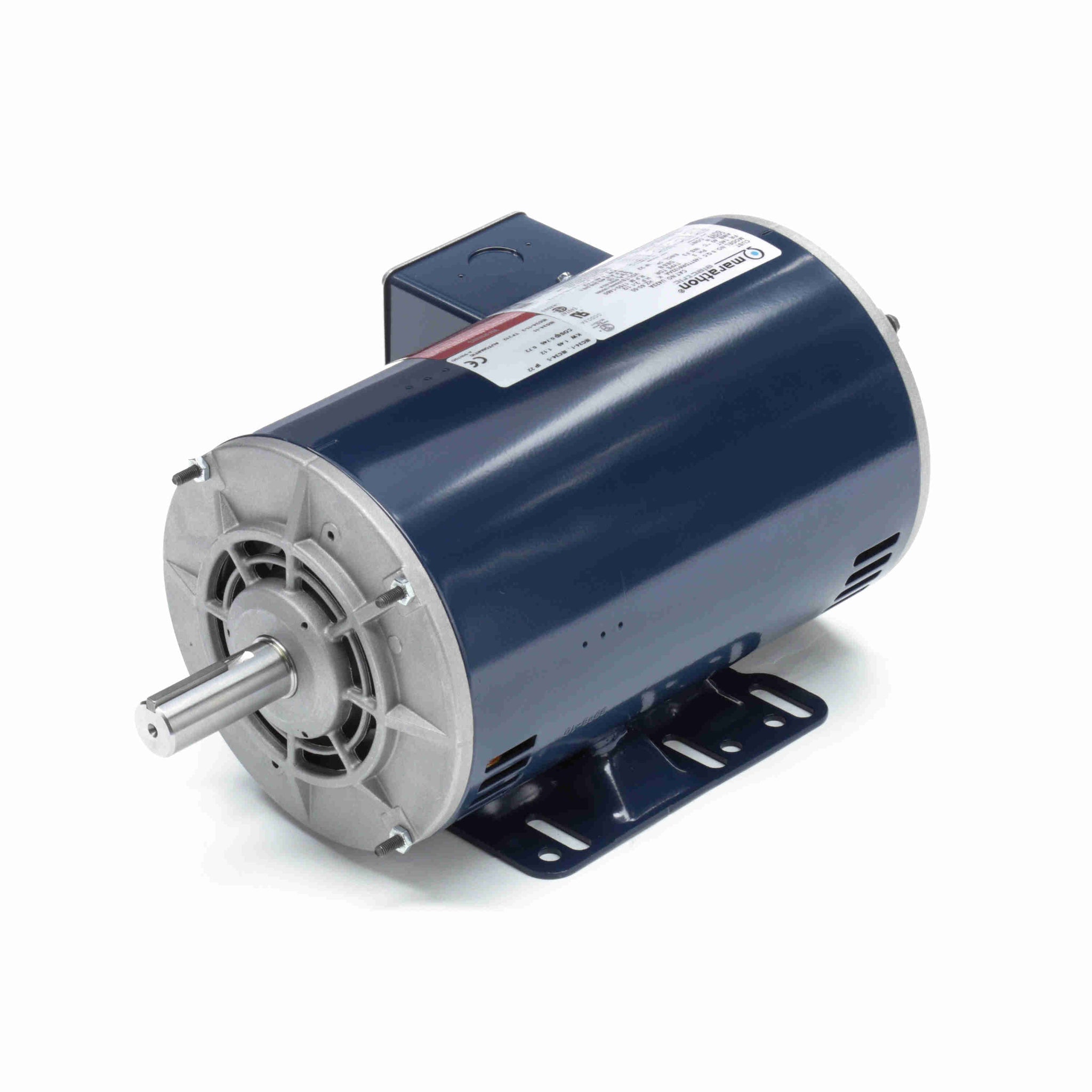

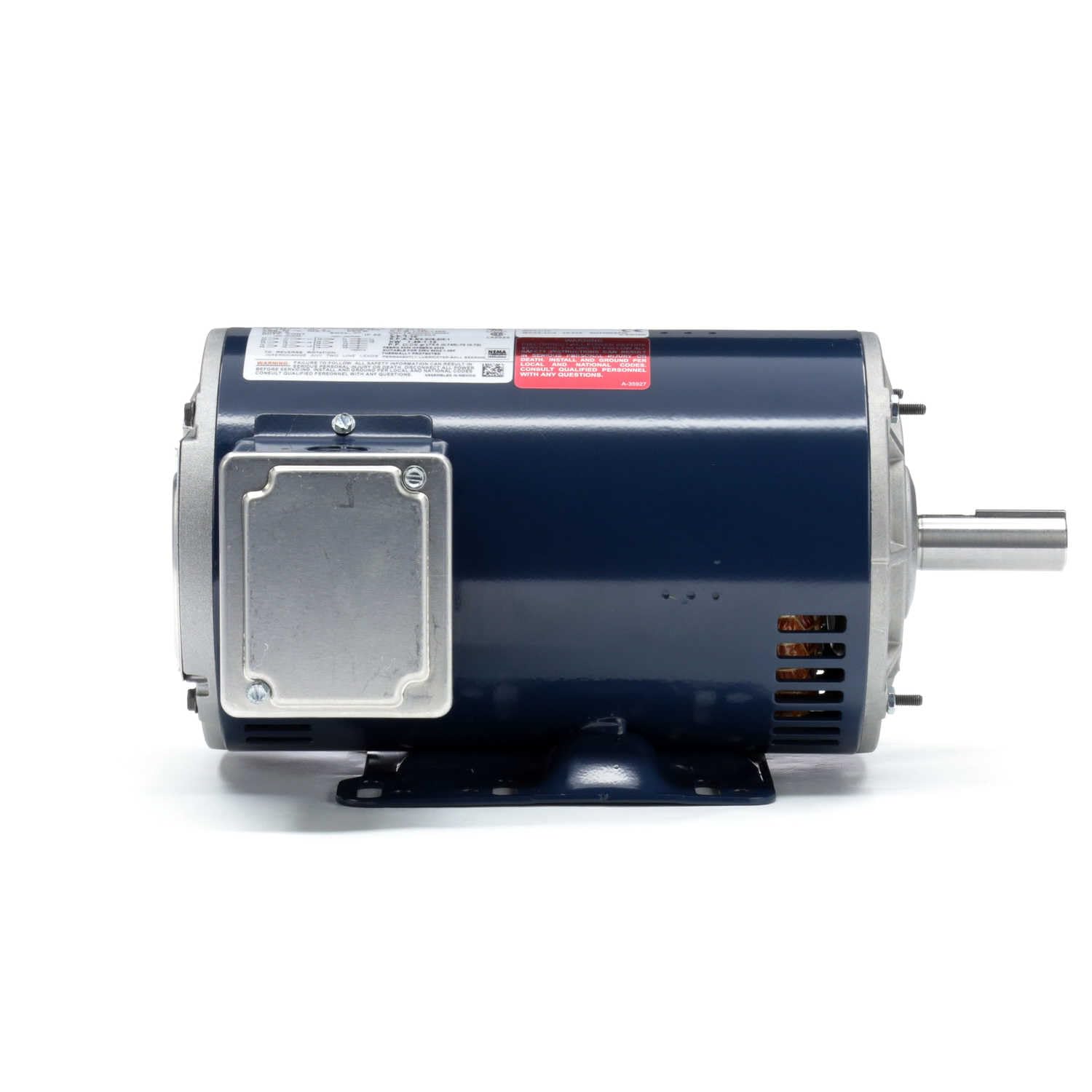

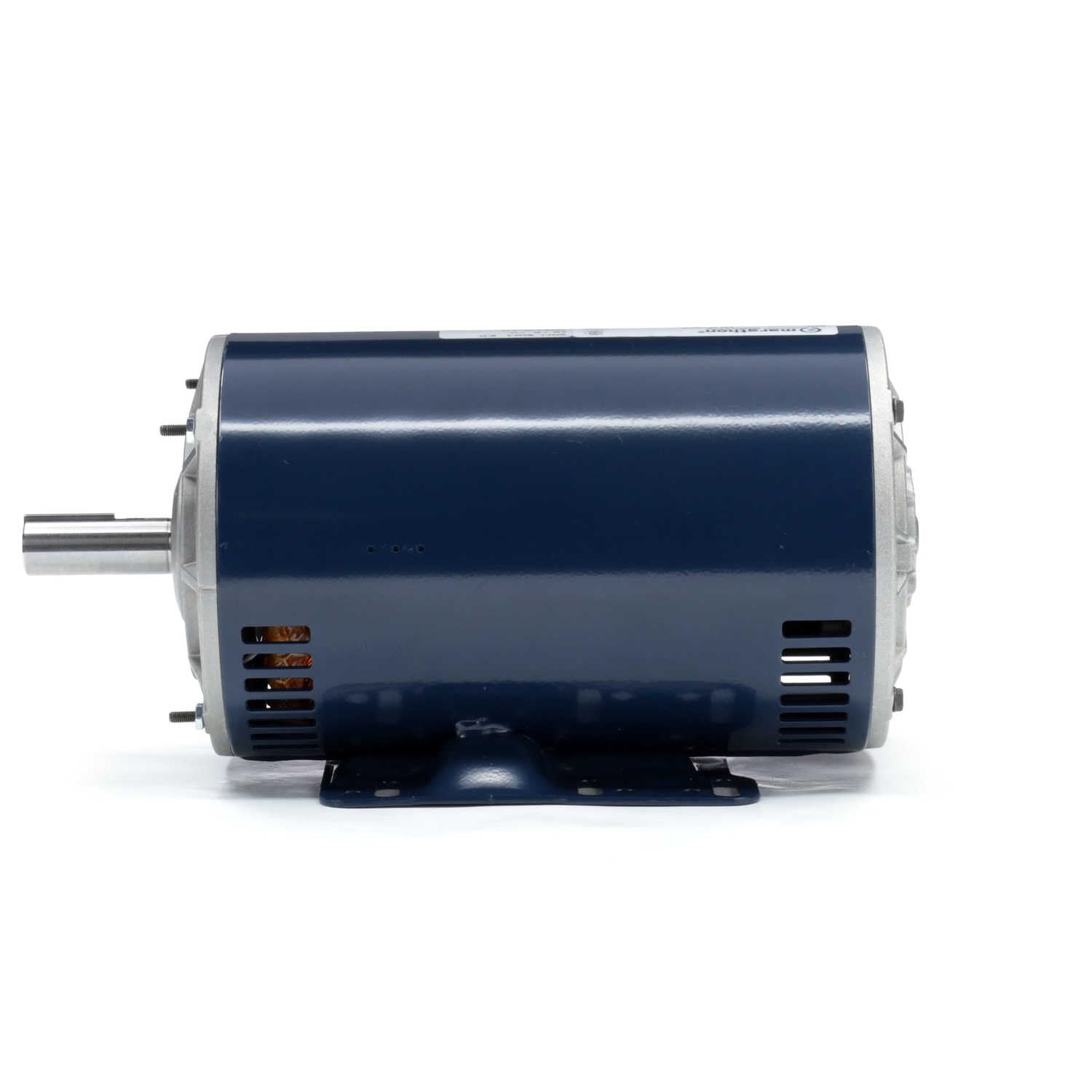

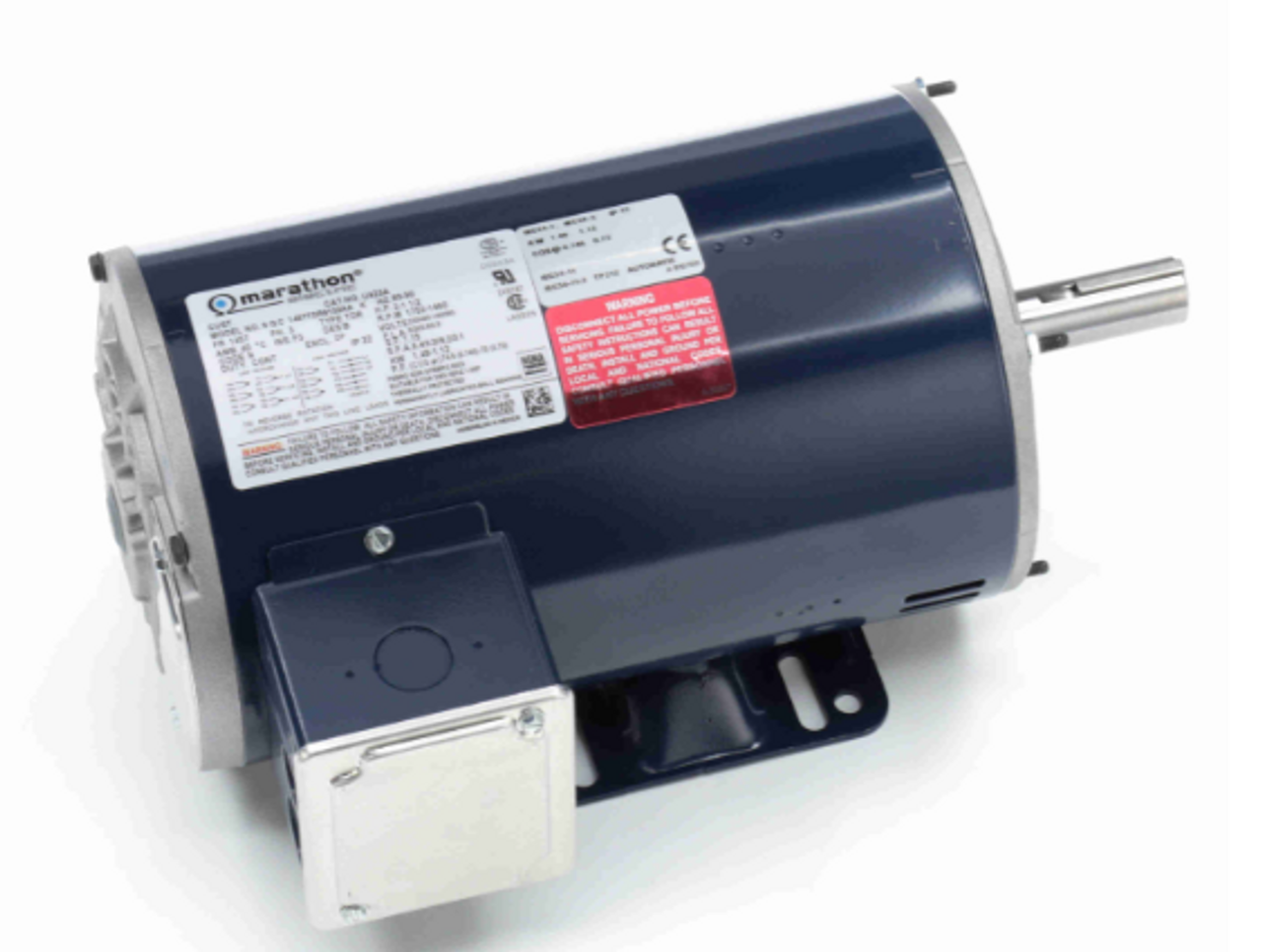

Marathon MU423A General Purpose Motor 2 HP 145T Frame Open Drip Proof

Product Description

The Marathon Motors MU423A is a two horsepower general-purpose motor with a three-phase system. It is designed for various applications including compressors, pumps, conveyors, fans, and blowers. Operating at eighteen hundred RPM, the motor can function effectively in clean and dry environments, and it is also suitable for outdoor use when protected by a drip cover.

• Operates at 1800 RPM.
• Includes a rigid base for secure mounting.
• Equipped with ball bearings for enhanced durability.

Product Highlights

This motor combines robust construction and reliable performance, making it ideal for demanding tasks in industrial settings.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: MU423A

Technical Specifications

• Motor Phase: 3 Phase
• Horsepower: 2 HP
• RPM: 1800
• Input Voltage: 208-230/460 Volts
• Output Current: 6.2-6.0-3.0 Amps
• Frame Size: 145T
• Mounting Type: Rigid Base
• Enclosure Type: Open Drip Proof
• Bearing Type: Ball Bearing
• Service Factor: 1.15
• Material: Rolled Steel
• Shaft Dimensions: 7/8 inches diameter x 2 1/4 inches length
• Overload Protection: Auto
• Rotation: Reversible
• Certifications: UL recognized, CSA certified
• Efficiency: 86.5
• Ambient Temperature: 40
