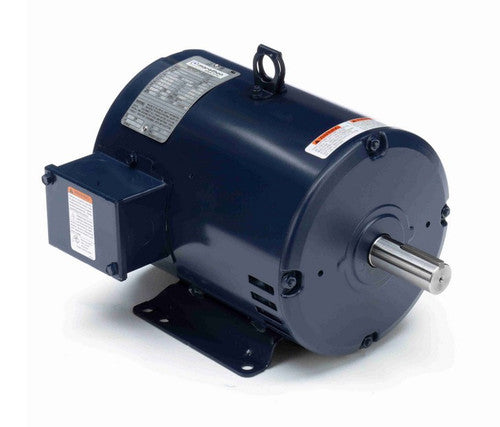

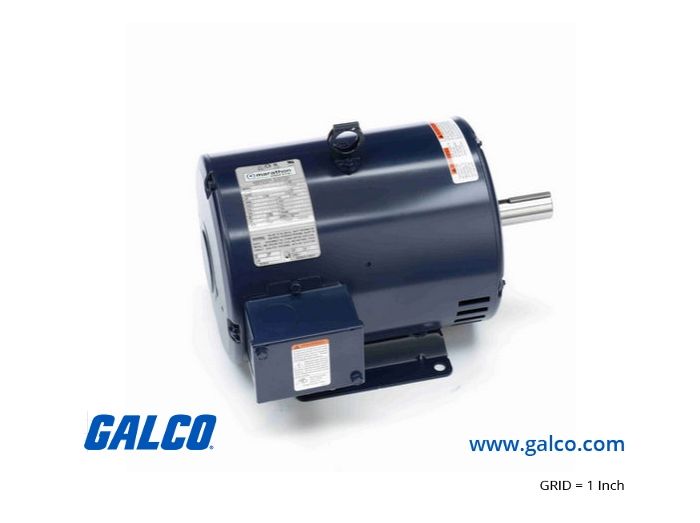

MARATHON MOTORS Y486A Marathon Motors Y486A 5 HP 3-Phase Dual Speed Motor

Product Description

The Marathon Motors Y486A is a 5 HP motor suitable for industrial applications. This model supports dual-speed operation and works with three-phase electrical systems operating between two hundred and two hundred thirty volts. It is built with an Open Drip Proof (ODP) enclosure that protects against dust and light water exposure. The NEMA 184T frame and Class F insulation ensure durability and reliability. The motor features a rigid base for easy mounting and allows for reversible rotation.

• Operates at two speeds for flexibility in various tasks.
• Constructed with a NEMA 184T frame and Class F insulation.
• Designed with an Open Drip Proof (ODP) enclosure for environmental protection.

Product Highlights

This motor is ideal for applications requiring robust performance in varied conditions.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: Y486A

Technical Specifications

• Horsepower: 5 hp
• Output HP: 5 & 1.25 hp
• Output KW: 3.7 & 0.93 kW
• Speed: 1800/900 RPM
• Voltage: 200-230 V
• Frequency: 60 Hz
• Phase: 3-Phase
• Frame: 184T
• Enclosure: Drip Proof
• Service Factor: 1.15
• Rotation: Reversible
• Mounting: Rigid Base
• Shaft Diameter: 1.125 inches
• Net Weight: 40 lbs
• Number of Speeds: 2
