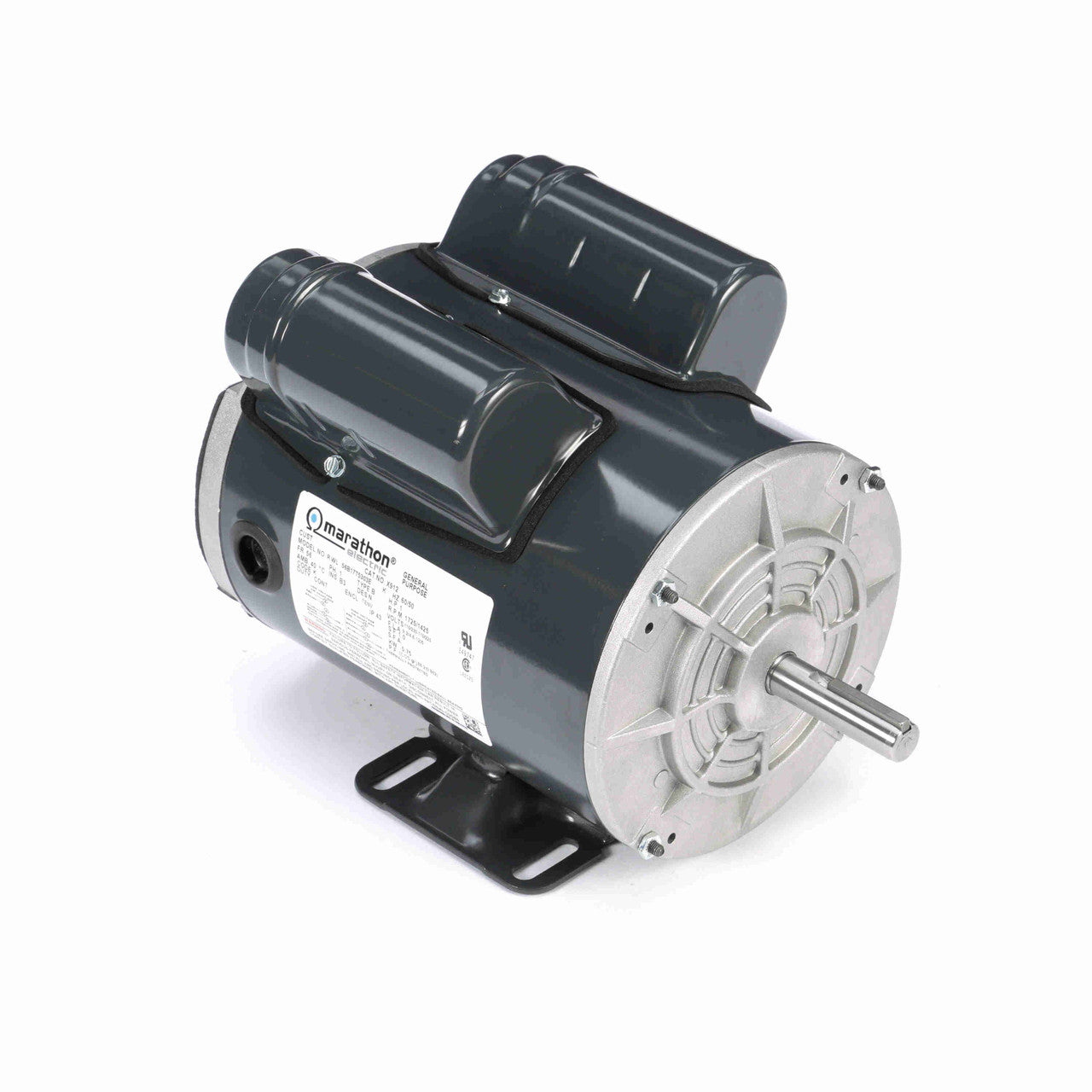

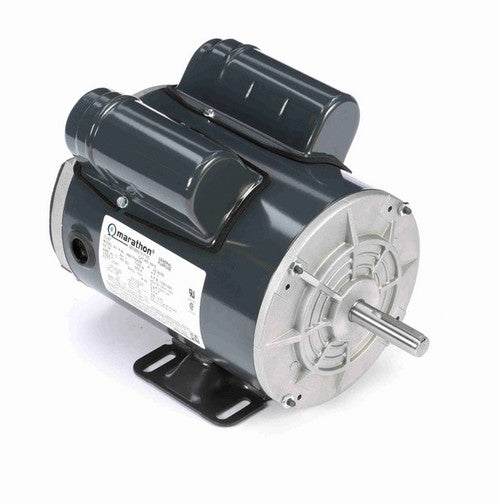

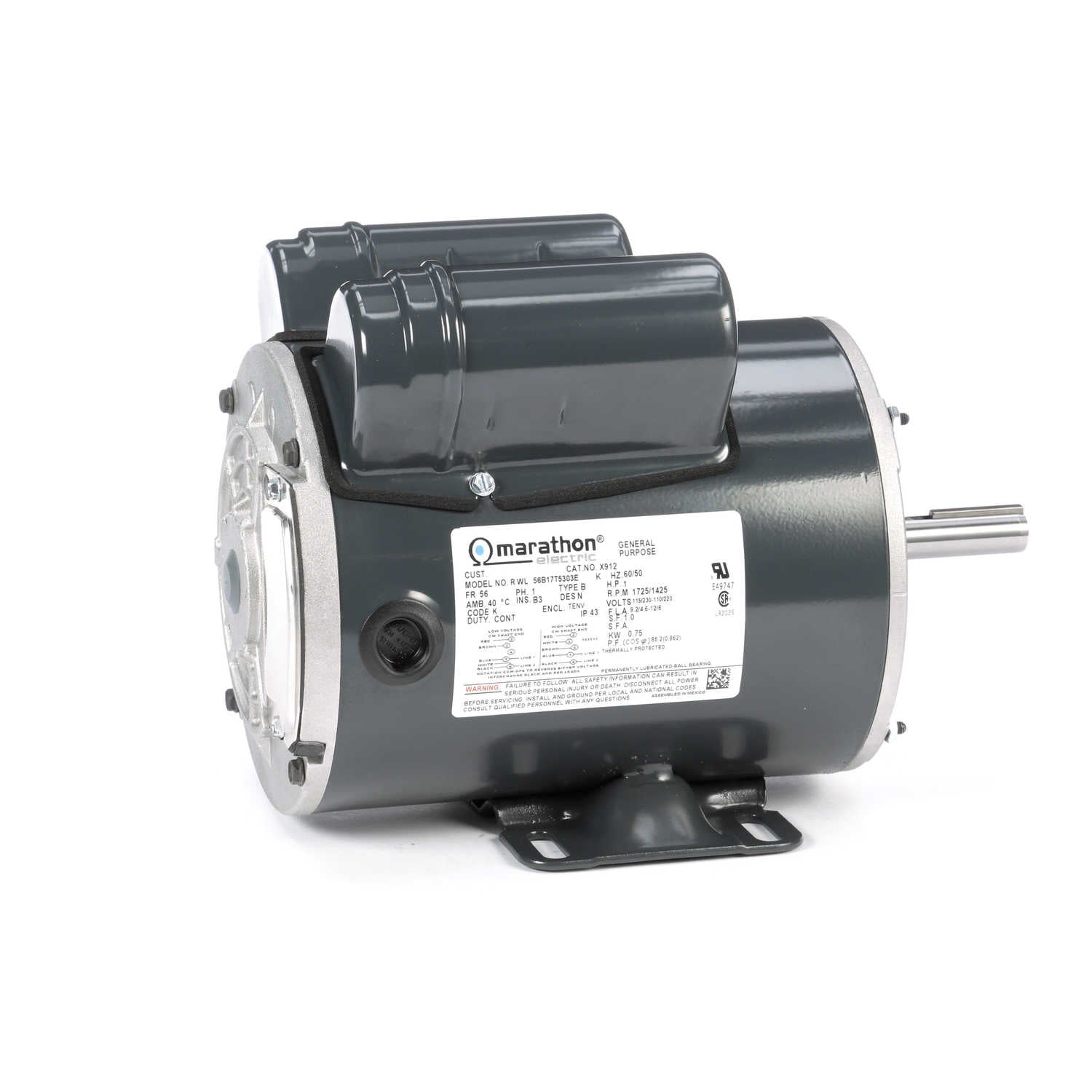

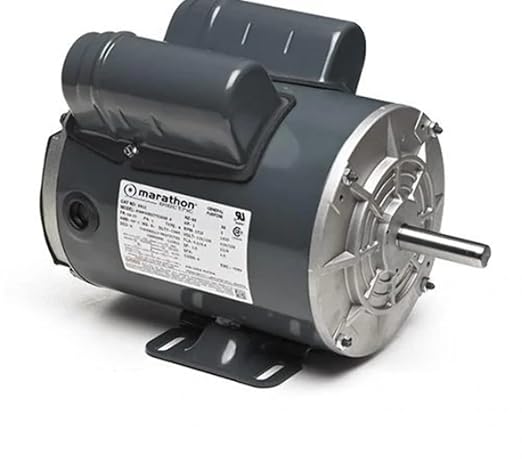

Marathon Motors X912 Farm Duty Belt Drive Motor 1 hp

Product Description

The Marathon Motors X912 is a single-phase farm duty belt drive motor designed for agricultural applications. This motor operates at one horsepower and reaches a maximum speed of one thousand seven hundred twenty-five RPM. It functions on one hundred fifteen or two hundred thirty volts, drawing between nine point two and four point six amps. Ideal for running exhaust fans in poultry houses and barns, this motor features a rigid base for easy installation.

• Capacitor start and run design for efficient energy use
• Totally enclosed for protection in challenging environments
• Constructed on a rigid base for stability

Product Highlights

Product Information

Standard Information

• Brand: Marathon Electric
• Application: Farm Duty

Technical Specifications

• Speed: 1725 RPM
• Voltage: 115/230V
• Horsepower: 1 hp
• Frame Size NEMA: 56
• Amps: 9.2/4.6
• Phase: 1
• Enclosure Type: Totally Enclosed Non Ventilated
• Rotation: Reversible
• Mounting Type: Rigid Base
• Shaft Diameter: 5/8 inches
• Shaft Extension: 2.32 inches
• Electrical Type: Capacitor Start Capacitor Run
• Motor Orientation: Horizontal
• Service Factor: 1.0
• Insulation Class: B
• Max Ambient: 40 °C
• IP Code: 43
• Locked Rotor Current: 36.60
• Bearings: Ball Bearings
