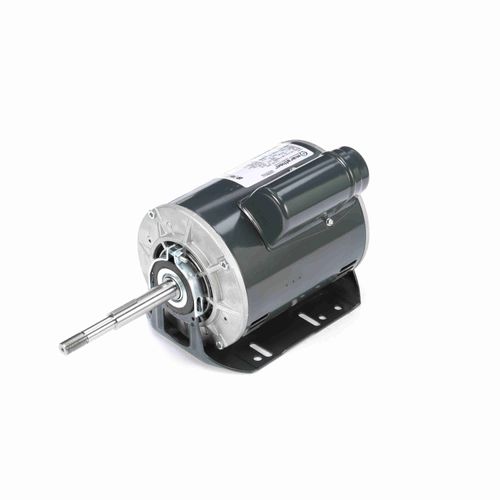

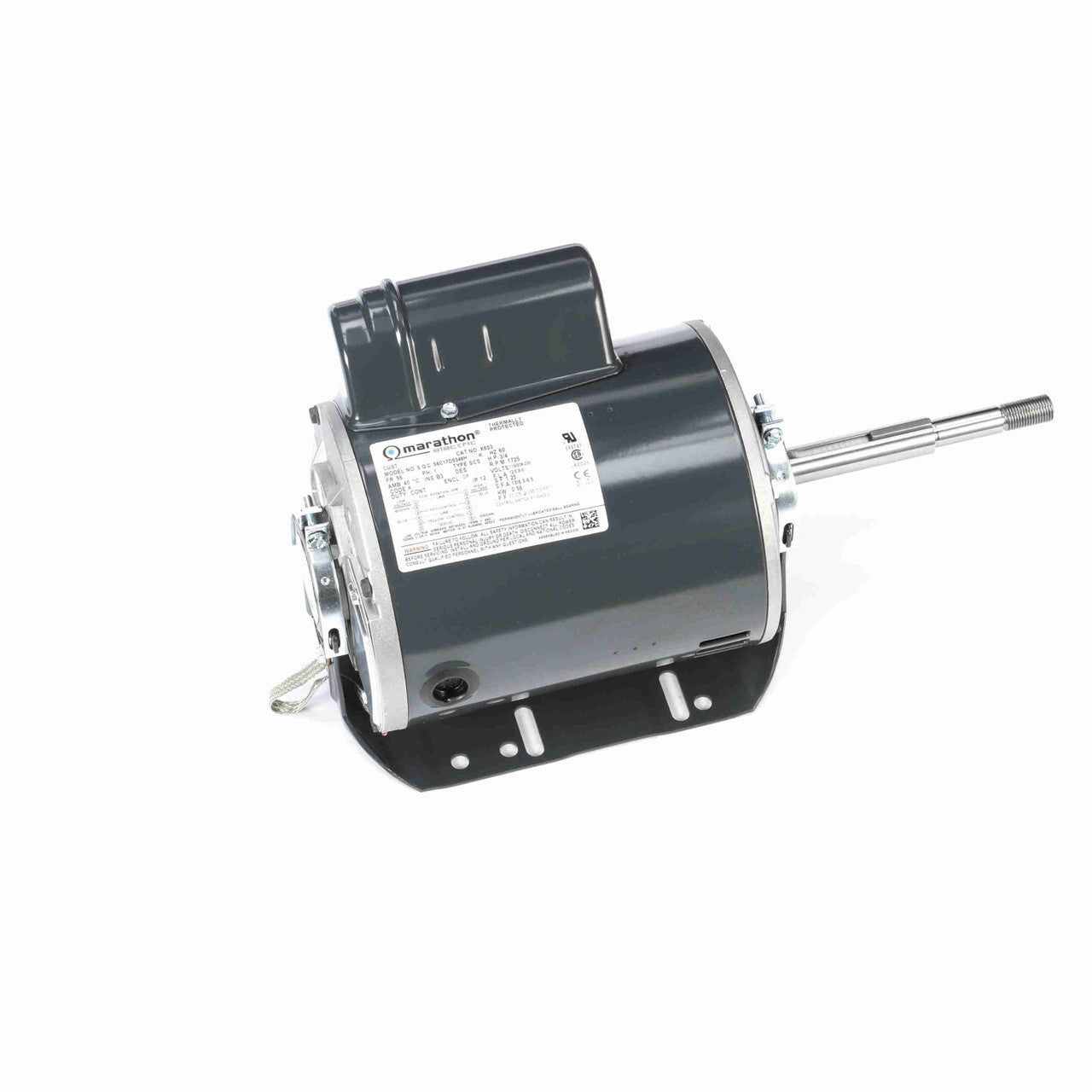

Marathon Motors X603 oem replacement motor 3/4 hp

Product Description

The Marathon Motors X603 is an OEM replacement motor with cap start. It operates at 1725 RPM and has a 56 frame. The motor is designed with a resilient base for mounting and features a single shaft type. It is suitable for commercial laundry dryer motor replacement.

• Electrical Type: Cap Start
• Rotation: CCWLE
• Overload: Auto

Product Highlights

This Marathon Motors replacement motor is designed for commercial laundry dryers, offering reliable performance and easy installation.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: X603
• Country of Origin: China

Technical Specifications

• Brand: Marathon Motors
• Electrical Type: Cap Start
• Horsepower: 3/4 HP
• RPM: 1725 rpm
• Frame: 56
• Diameter: 6.5"
• Enclosure: ODP
• Phase: 1
• Voltage: 115/208-230 V
• Rotation: CCW °
• Overload: Auto
• Material: Rolled Steel
• Mounting: Base
• Current: 12.0/5.8-6.0 A
• Shaft Type: Single
• Application: HVAC
• Output KW: 0.55
• Frame NEMA: 56Z
• Enclosure NEMA: DP
• Enclosure IEC: IP12
• Frequency (Hz): 60
• Output HP: 0.75 Hp
• Speed (RPM): 1725 rpm
• Frame Size: 56
• Service Factor: 1.25
• Thermal Protection: Automatic Protector
• Efficiency: 66 %
• Ambient Temperature: 40 °C
• Power Factor: 65.7
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: K
• Drive End Bearing Size: 6205
• Opp Drive End Bearing Size: 6205
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 12
• Number of Speeds: 1
• MPN: M411191
• Country of Origin: China
• UPC: Does not apply
• Category: Business & Industrial, Retail & Services, Dry Cleaning & Laundromat, Commercial Washers & Dryers
• Condition: New
• 60 Hertz kW: 0.56 kW
• Catalog Number: X603
• 60 Hertz Full Load Amps: 12/5.8-6 FLA
• Motor RPM 60 Hertz: 1725 rpm
• Mounting Location: Resilient Base
• Bearing Drive End: Ball
• 60 Hertz SF: 1.25 V
• Starting Type: Cap Start Ind Run
• Enclosure Type: Open/Drip Proof
• RPM Range: 1701-1800 rpm
• Compliance & Certifications: CSA Certified
• NEMA Design: Definite Duty
• Opposite End Bearing Size: Ball
• Manufacturer: Marathon
• Amps: 12/5.8-6
• Bearings: Ball
• Duty Cycle: Continuous
• Enclosure Material: Steel
• Motor Diameter: 6-1/2"
• Motor Shell Length: 7.06"
• Mounting Orientation: Horizontal
• Overall Length: 15.1"
• Product Type: Capacitor Start
• Shaft Diameter: 5/8"
• Shaft Length: 5.66"
• Volts: 230
