Product Description

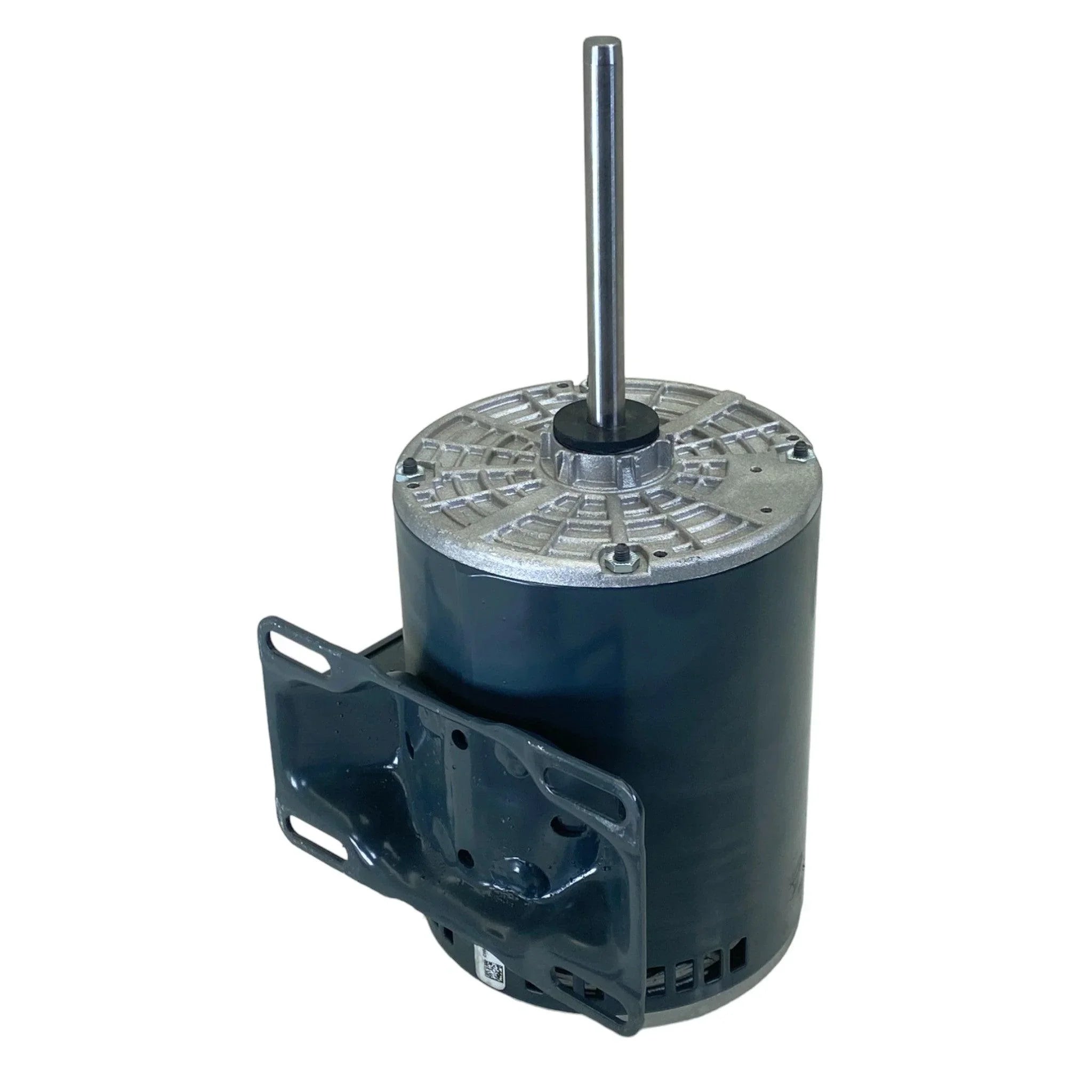

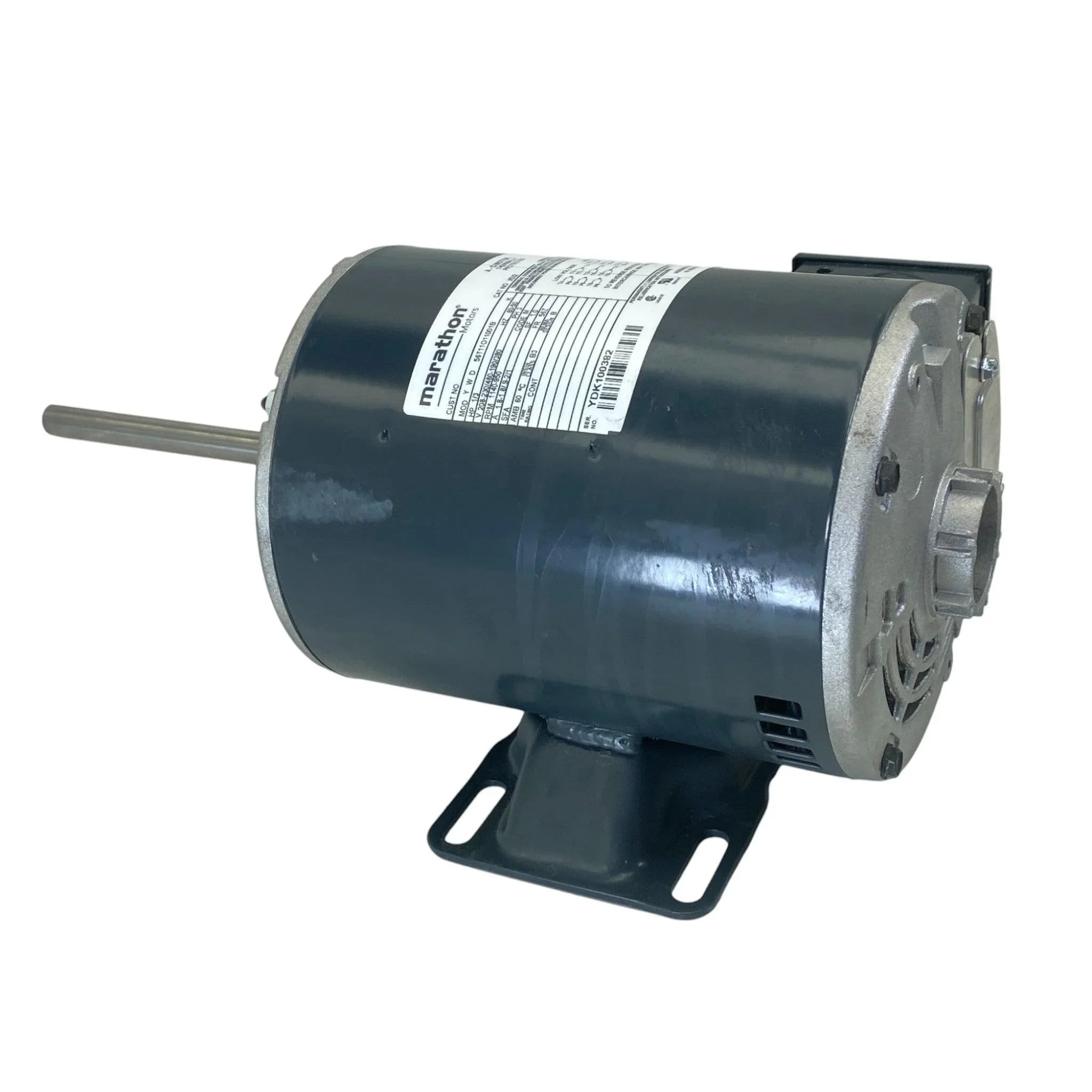

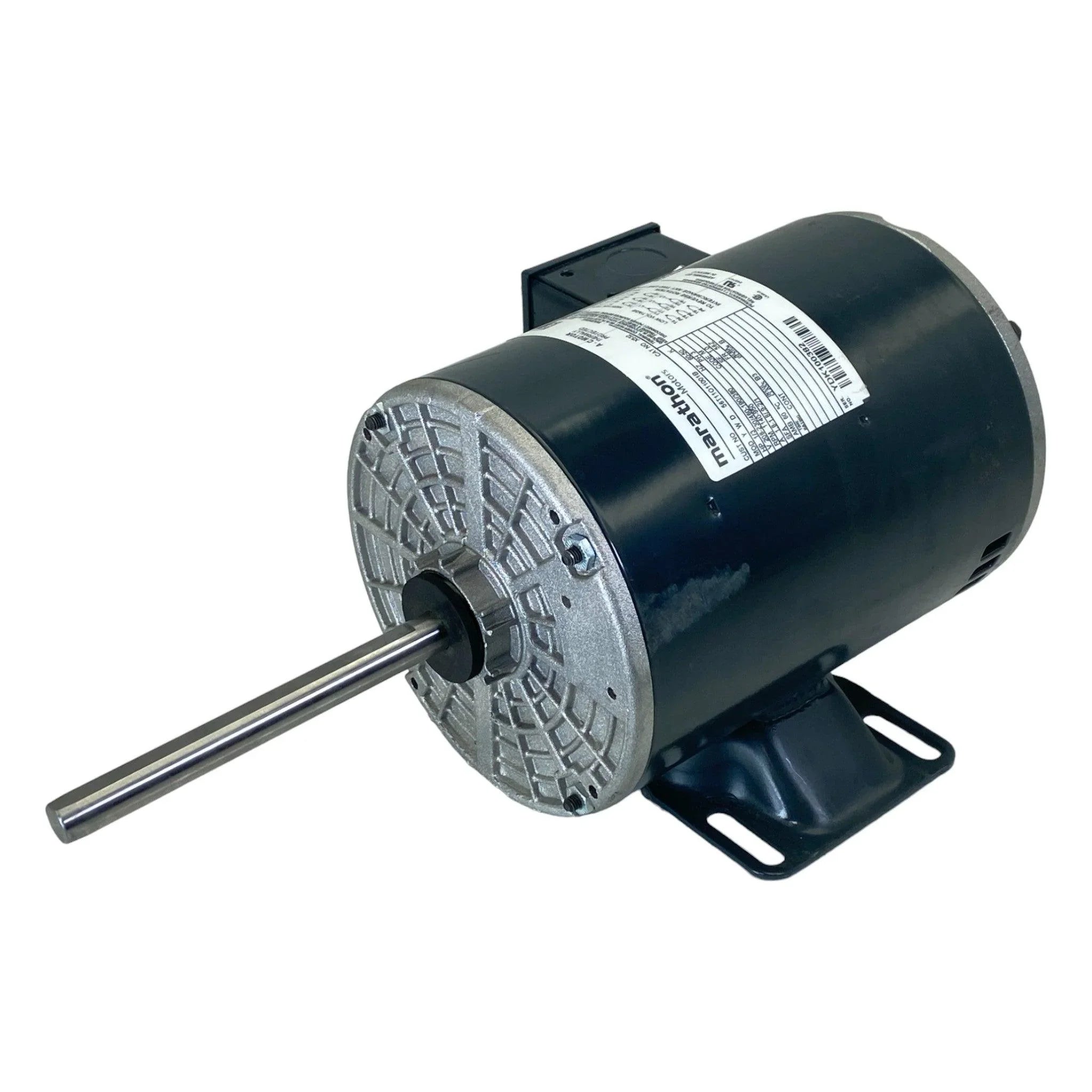

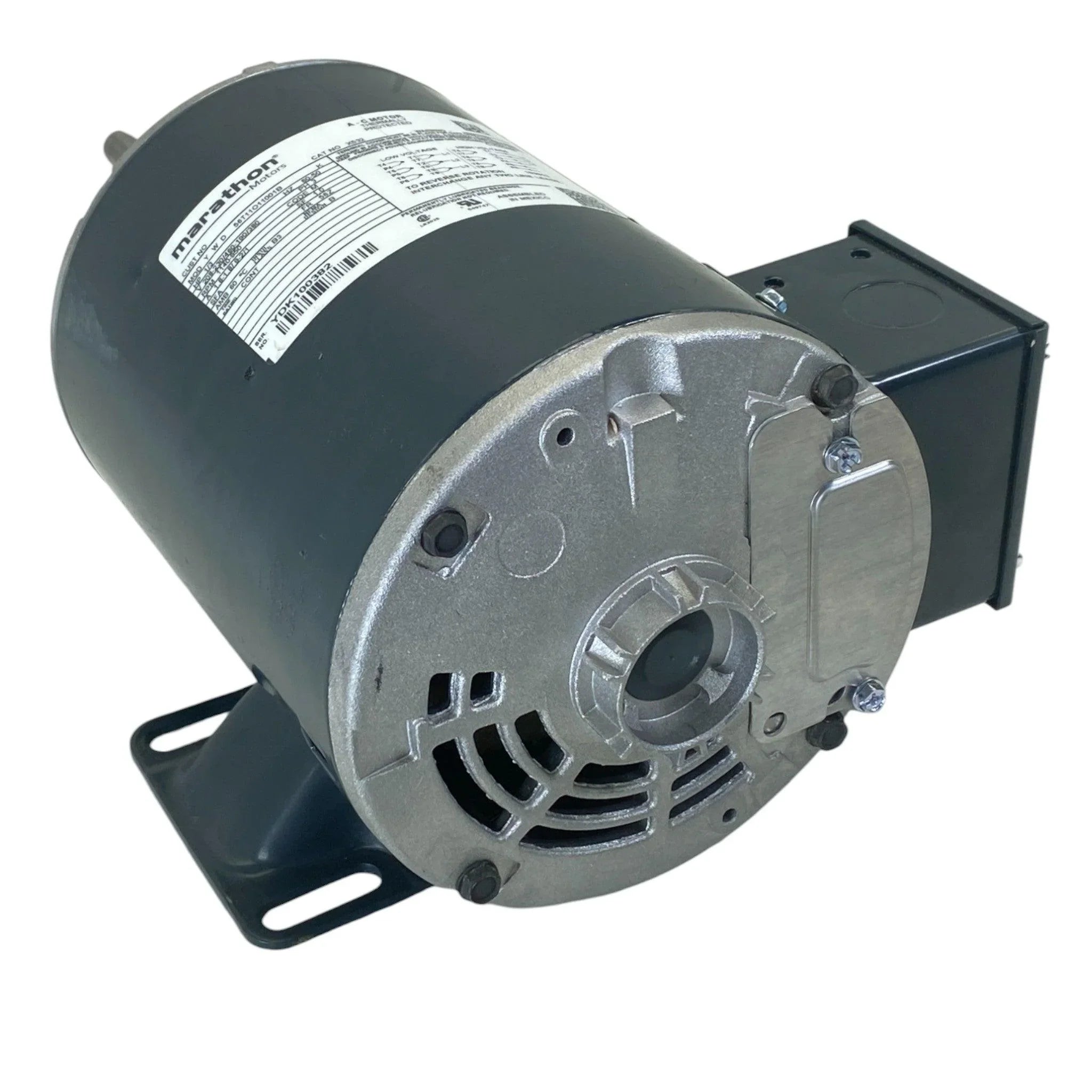

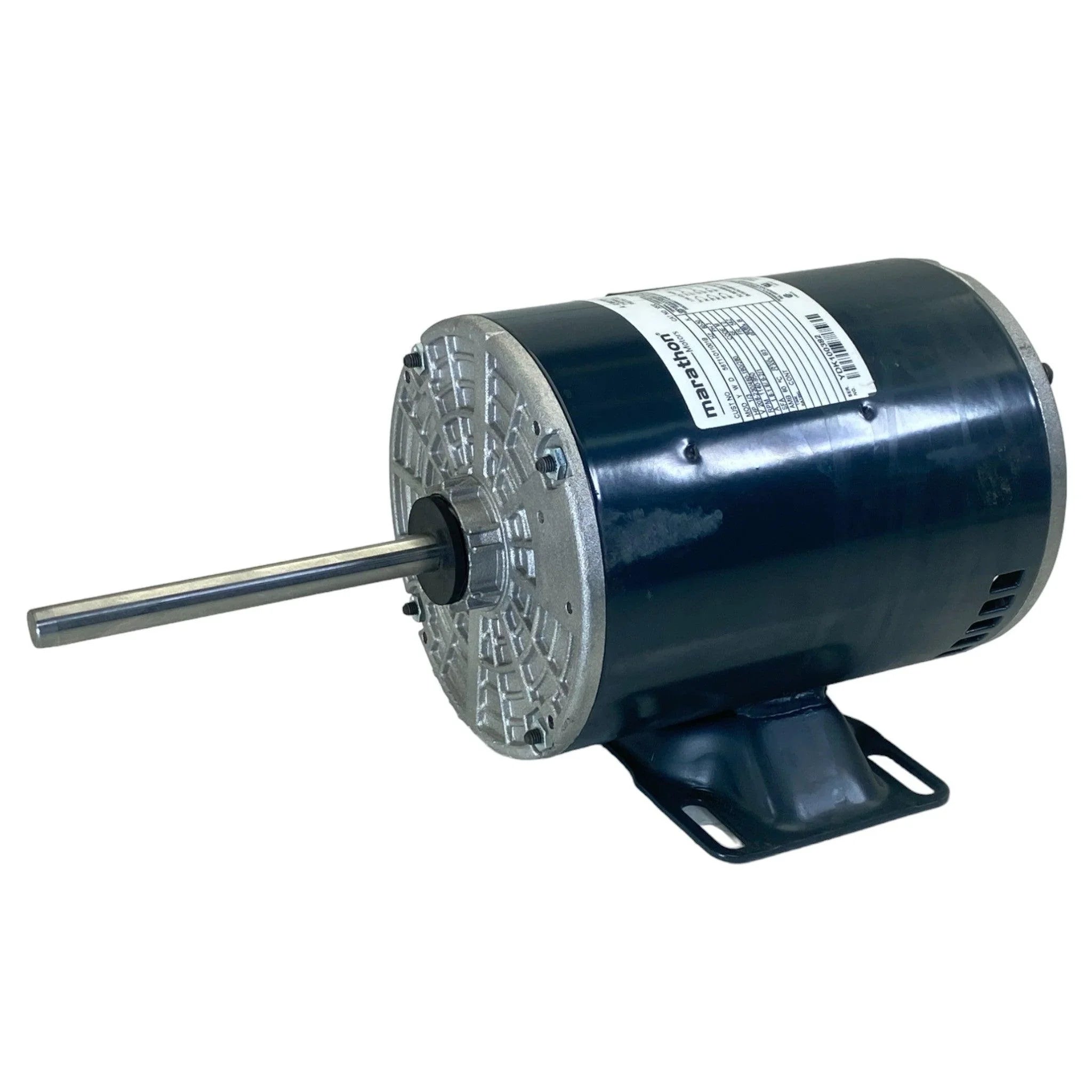

The MARATHON MOTORS X532 is a condenser fan motor rated at 1/3 HP and 1140 RPM for 208-230/460 volts 3 phase supply. The X532 has a 56Z frame and an open (shaft up or horizontal) enclosure. It is designed for outdoor condenser units as part of a central air conditioning systems.
- Electrical Type: Three Phase
- Rotation: Reversible
- Mounting: Rigid Base
Product Highlights
This MARATHON MOTORS condenser fan motor delivers reliable performance and durability for HVAC/R systems.
Product Information
Standard Information
-
Brand: MARATHON MOTORS
-
Manufacturer Part Number: X532
Technical Specifications
-
Electrical Type: Squirrel Cage Induction Run
-
HP: 1/3
-
RPM: 1140
-
Frame: 56Z
-
Diameter: 6.5"
-
Enclosure: Open Air Over
-
Phase: 3
-
Voltage: 208-230/460 V
-
Rotation: Reversible
-
Overload: Auto
-
Material: Rolled Steel
-
Mounting: Rigid Base
-
Amperage: 1.8-1.8/0.90
-
Shaft Type: Single Special Extension
-
Brand: MARATHON
-
Application: Condenser Duty
-
Output KW: 0.25
-
Frame Size NEMA: 56Z
-
Mount NEMA: With Base
-
Enclosure NEMA: OPAO
-
Enclosure IEC: IP10
-
Service Factor: 1.0 & 1.0
-
Thermal Protection: Automatic
-
Efficiency: 72 & 68 %
-
Ambient Temperature: 60 °C
-
Frequency: 60 & 50 Hz
-
Current: 1.8-1.8/.9 & 2/1 A
-
Power Factor: 52.5
-
Duty: Continuous
-
Insulation Class: B
-
Design Code: B
-
KVA Code: M
-
Drive End Bearing Size: 6203
-
Opp Drive End Bearing Size: 6203
-
UL: Recognized
-
CSA: Y
-
CE: N
-
IP Code: 10
-
Number of Speeds: 1
-
Catalog Number: X532
-
RPM (Number of Poles): 6 (901 RPM to 1200 RPM)
-
RPM (Nameplate): 1140
-
Speeds: 1
-
Frame Material: Rolled Steel
-
Shaft Diameter: 5/8 (in.)
-
Shaft Extension: 5.06 (in.)
-
DE Bearing Type: Ball
-
ODE Bearing Type: Ball
-
C-Dimension: 13.37 (in.)
-
Motor Orientation: Horizontal
-
Type of Overload Protector: Automatic Lock Rotor Only
-
Max Ambient: 60°C
-
Part Type: Electric Motor X532
-
SKU: 056T11O11001B
-
OEM Cross Reference: 056T11O11001, 056T11011001, X532
-
UPC: 706875AT
