Product Description

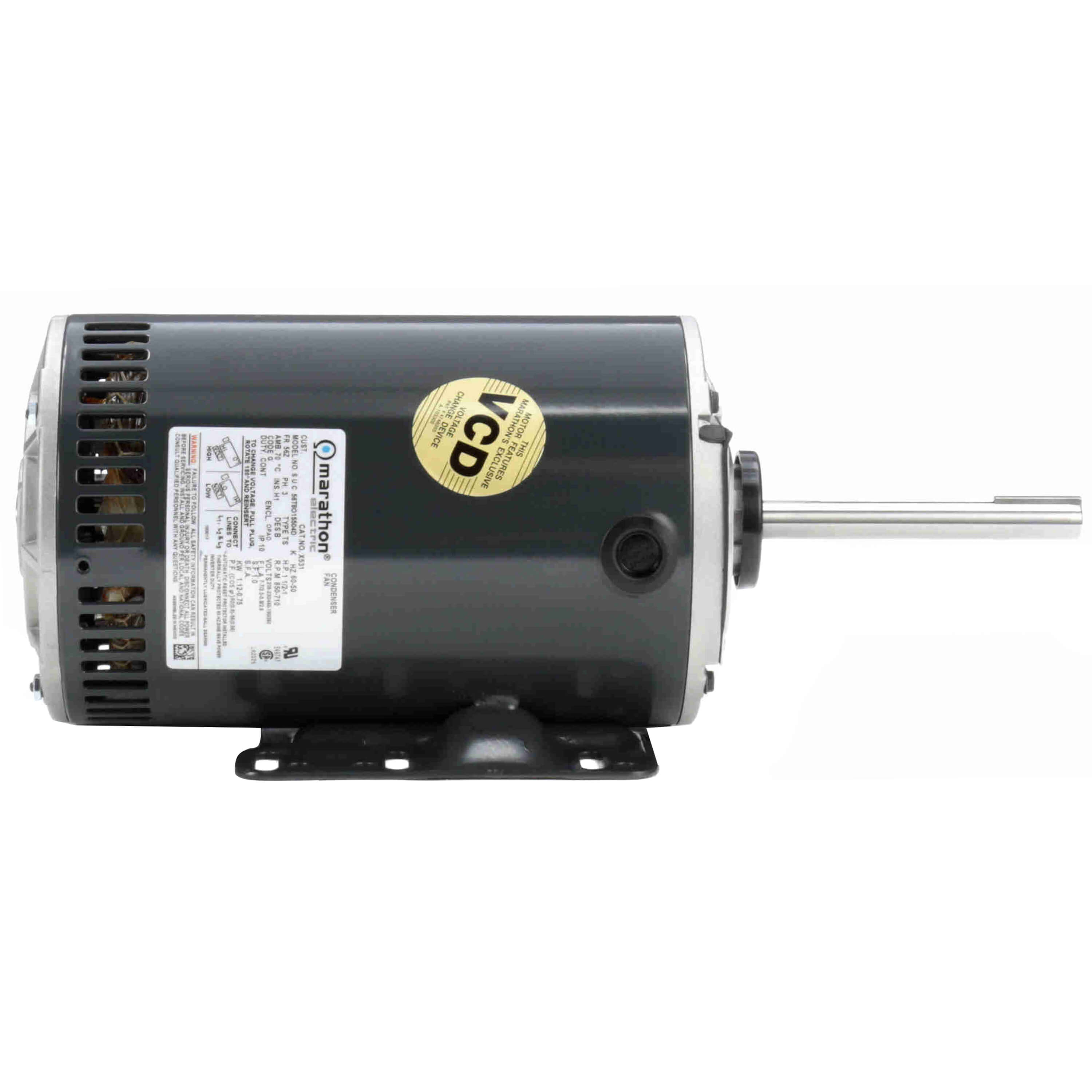

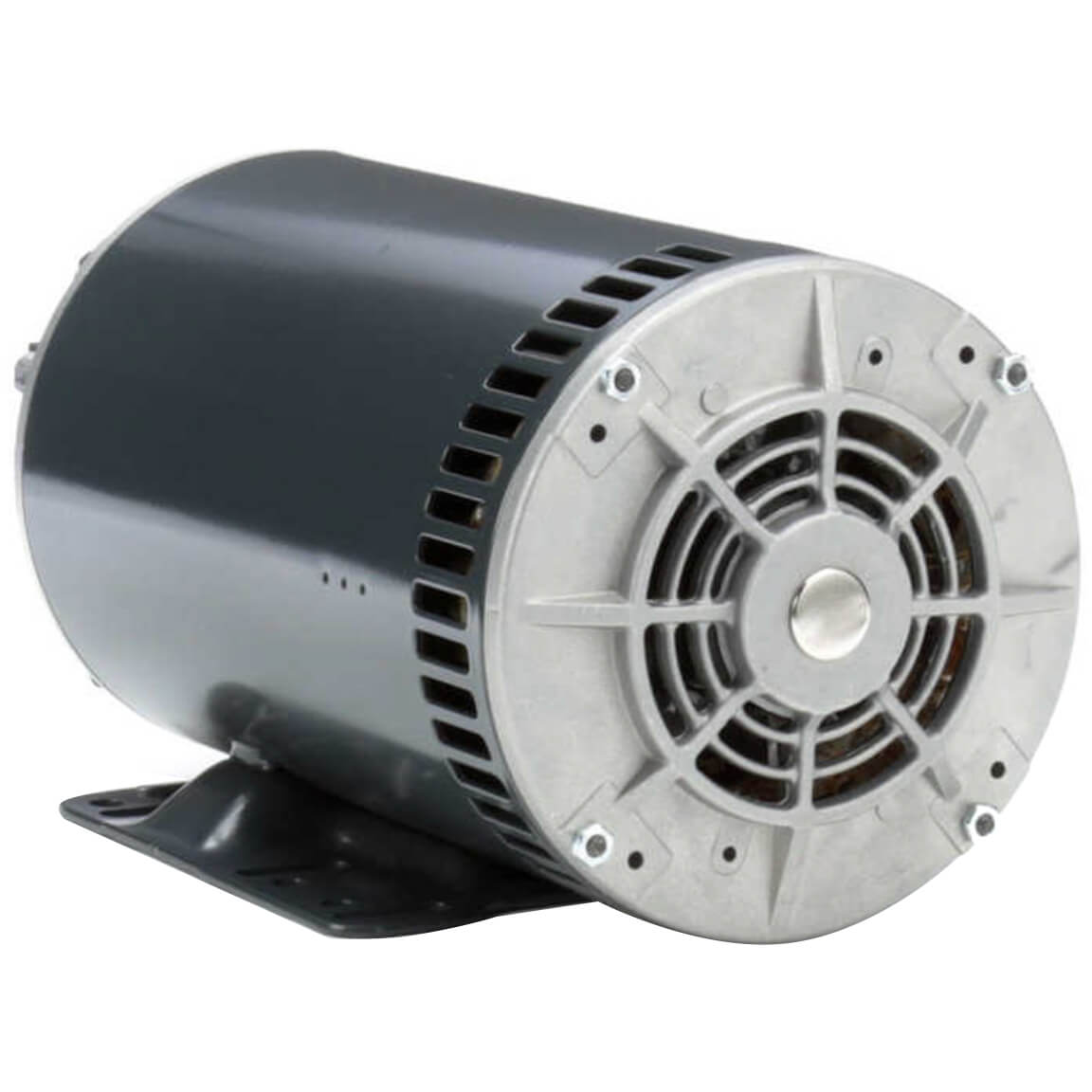

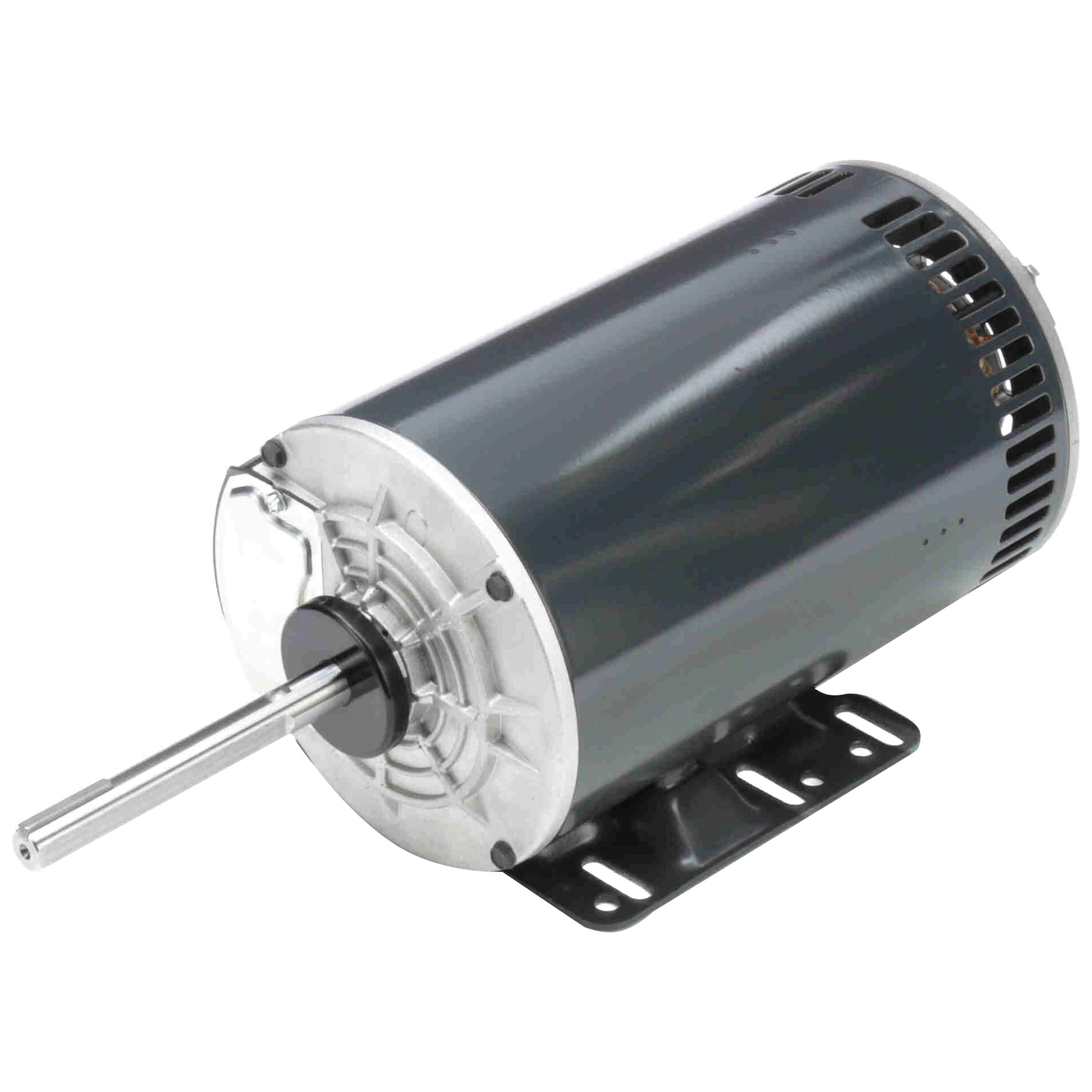

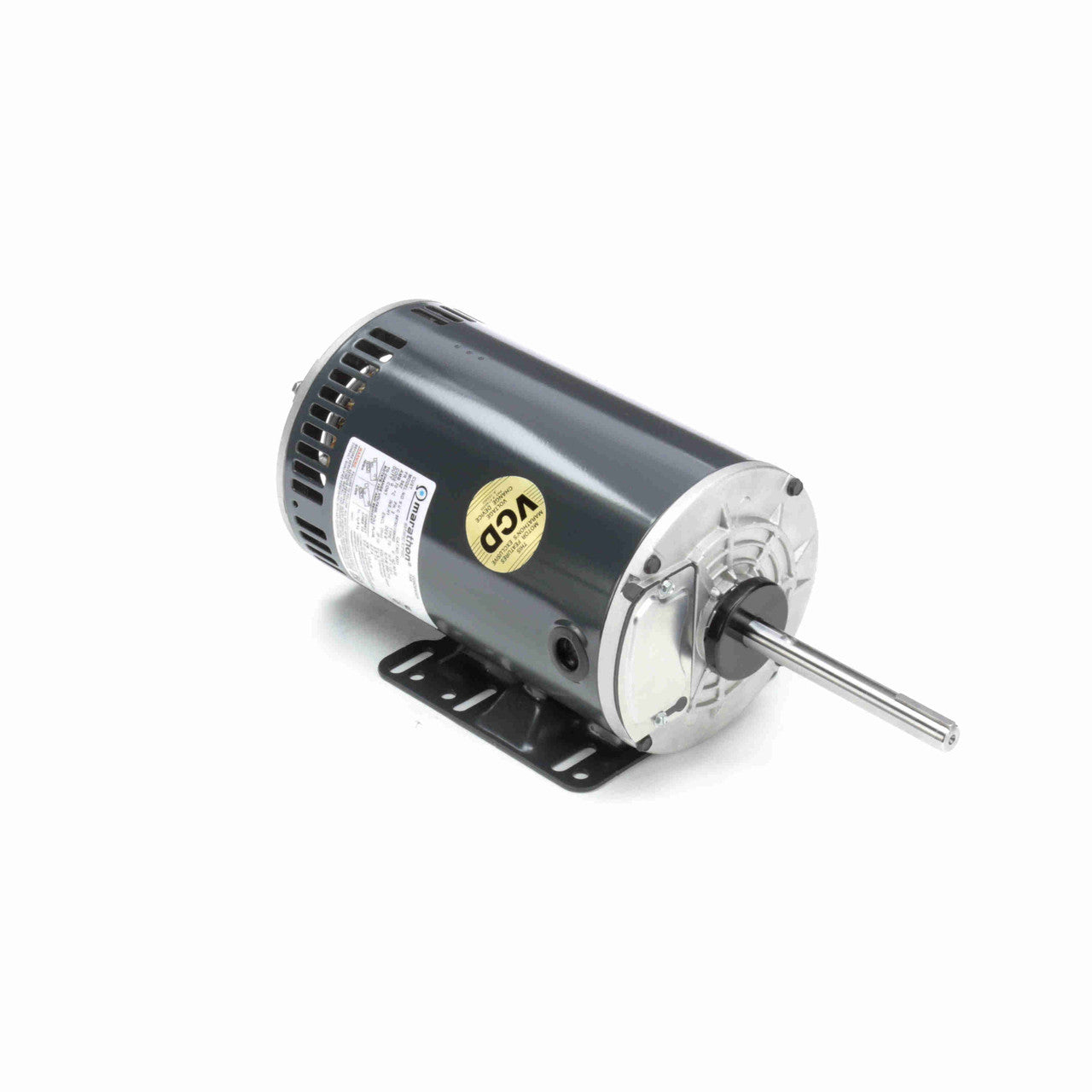

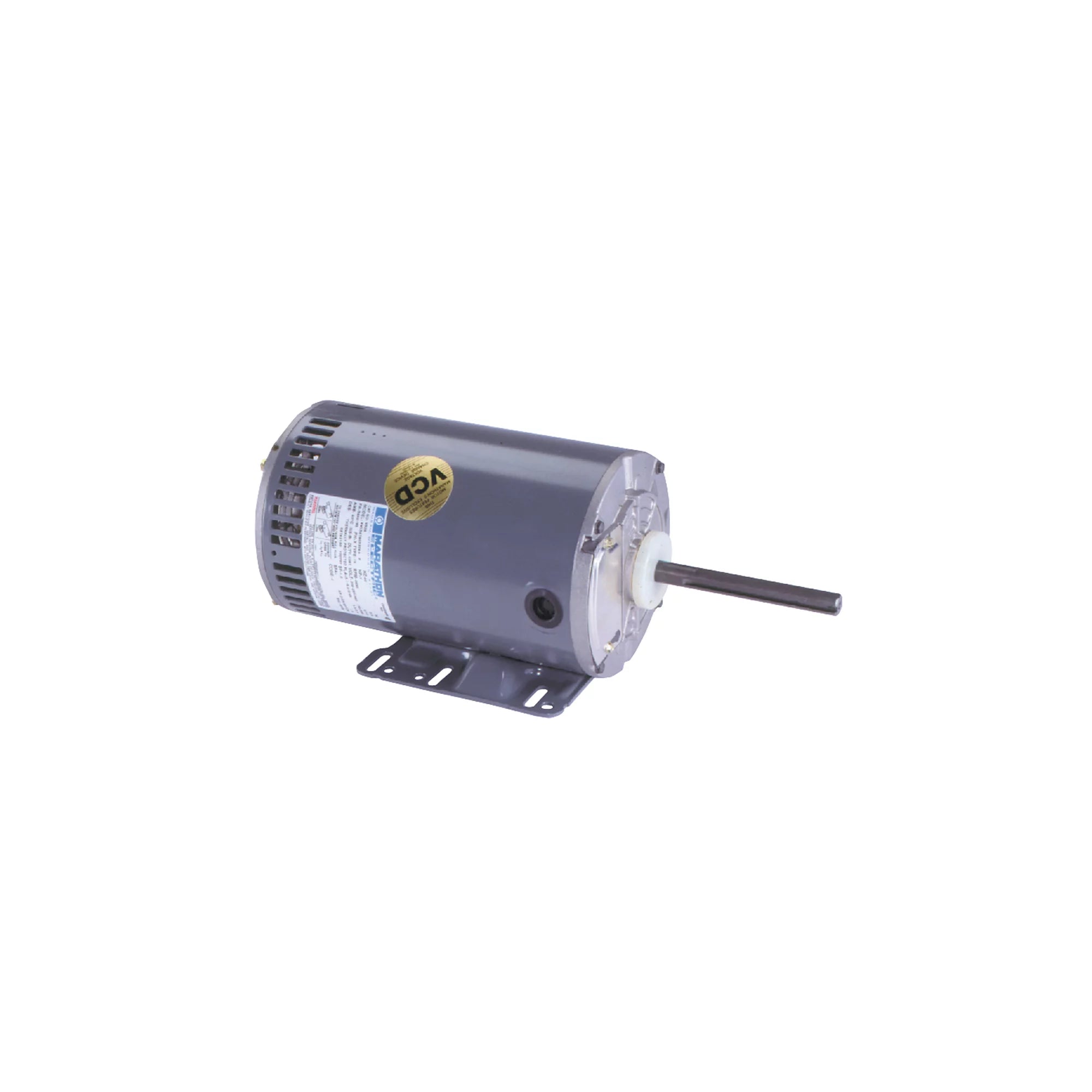

The MARATHON MOTORS X531 is a refrigeration fan motor with three phase open air over and shaft up & horizontal rigid base mount. It is a replacement motor for refrigeration equipment. The motor features a continuous duty, automatic reset thermal protector, and shaft slinger. It has double sealed ball bearings and a flat and keyway on the shaft.
- 70°C ambient
- Enclosed shaft end bracket, vented frame
- UL Recognized and CSA Certified
Product Highlights
This motor is suitable for refrigeration equipment and can be mounted shaft up or horizontally. It features a voltage change device and is UL Recognized and CSA Certified.
Product Information
Standard Information
-
Brand: MARATHON MOTORS
-
Manufacturer Part Number: X531
-
Country of Origin: USA
Technical Specifications
-
Amps: 3.5-7
-
Bearing Type: Ball
-
Brand: Marathon Motors
-
Cycle/Hertz: 60 Hz
-
Duty: Continuous (S1)
-
Full Load Amps: 3.5-7
-
Motor Enclosure: Open
-
Motor HP: 1 1/2 HP
-
NEMA Frame: 56HZ
-
Number of Speeds: 1 (Single)
-
Phase: Three
-
Protection: Class B
-
Rotation: Reversible
-
RPM: 850
-
Shaft Diameter: 0.625" (5/8")
-
Shaft Length: 5.06"
-
Voltage: 208-230/460 VAC
-
Country of Origin: USA
-
Motor Type: Condenser Fan
-
Output HP: 1.5 & 1 Hp
-
Output KW: 1.1 & 0.75 kW
-
Speed (RPM): 850 & 710 rpm
-
Frame Size: 56HZ
-
Mounting: Rigid Base
-
Enclosure: Open Air Over
-
Application: Condenser Duty
-
Frame Size NEMA: 56HZ
-
Mount NEMA: With Base
-
Enclosure NEMA: OPAO
-
Enclosure IEC: IP10
-
Catalog Number: X531
-
Frequency: 60/50
-
Speeds: 1
-
Mounting Type: Rigid Base
-
Frame Material: Rolled Steel
-
Shaft Extension: 5.06 (in.)
-
Shaft Type: Keyed
-
DE Bearing Type: Ball
-
ODE Bearing Type: Ball
-
Electrical Type: Squirrel Cage Induction Run
-
Service Factor: 1
-
Type of Overload Protector: Automatic
-
Insulation Class: H
-
Max Ambient: 70°C
-
IP Code: 10
-
KVA Code: G
-
DEM Reference: MA#X531
-
Rated Load (HP): 1 1/2
-
AC Frequency Rating: 60 Hz
-
Enclosure Type: OAO (Open Air Over)
-
MPN: 056T8O15504
-
NEMA Frame Suffix: Z (Non-Standard NEMA Shaft)
-
AC Phase: Three Phase
