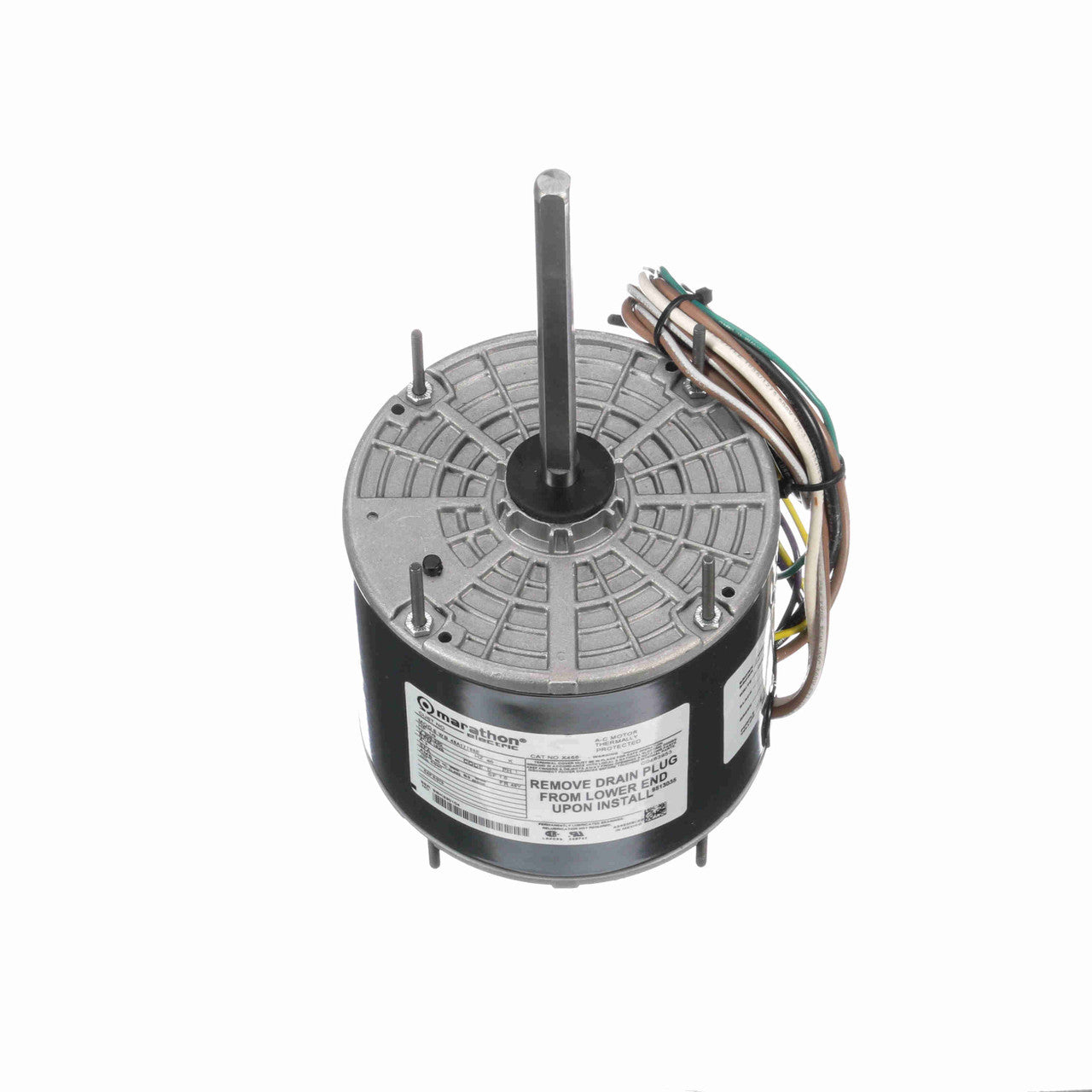

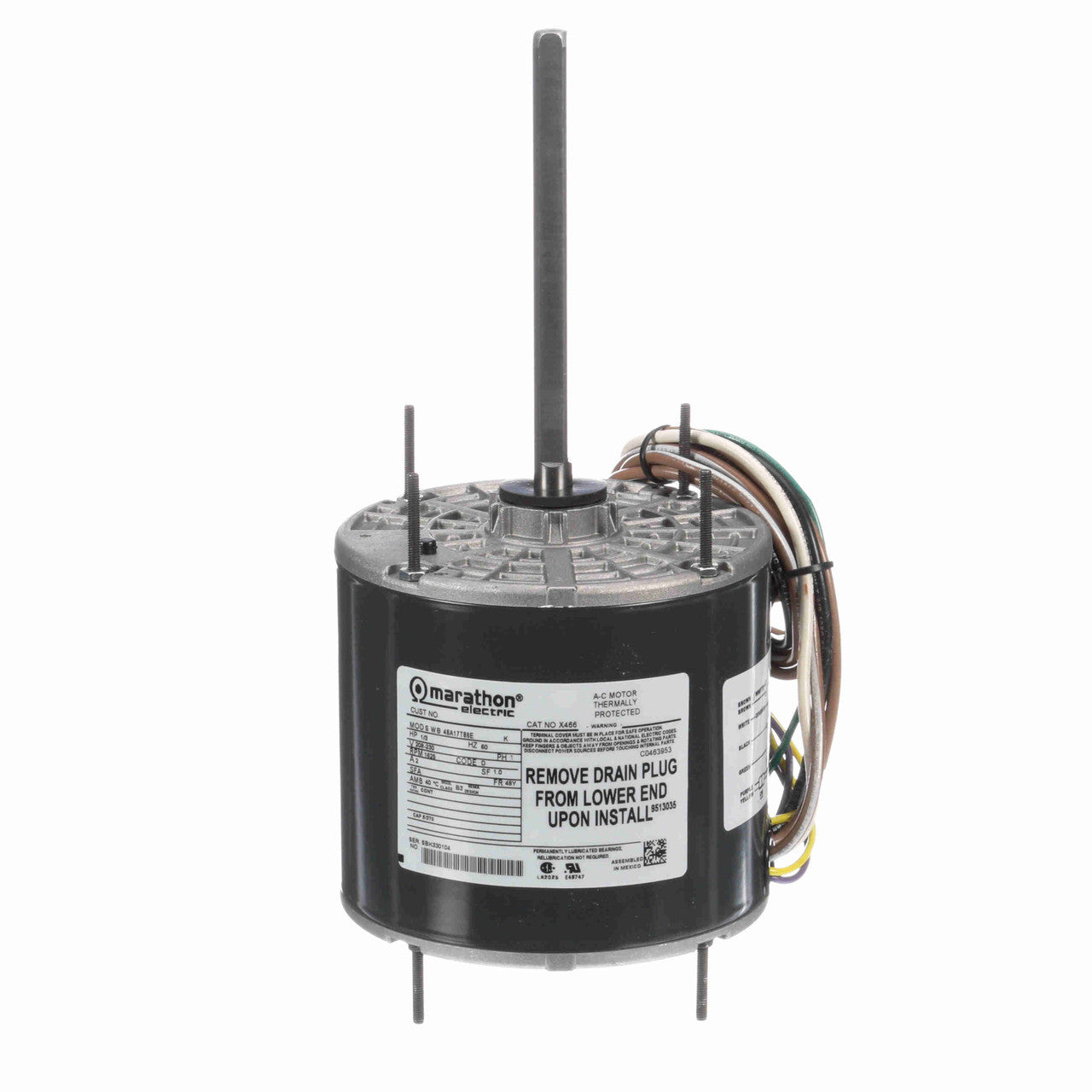

Marathon Motors X466 Condenser Fan Motor 1/3 HP

Product Description

The MARATHON MOTORS X466 is a condenser fan motor rated at 1/3 HP and 1625 RPM. Designed for 208-230 volts single phase supply, it features a 48Y frame and a 1/2 shaft diameter. The motor has a totally enclosed air over enclosure and utilizes ball bearings. It is suitable for all angle mounting and needs to be mounted within the airflow of the fan for proper cooling.

• Rated at 1/3 HP and 1625 RPM
• Operates on 208-230 volts single phase power
• Features a 48Y frame with a 1/2 shaft diameter

Product Highlights

The MARATHON MOTORS X466 condenser fan motor is designed for use in outdoor condenser units as part of central air conditioning systems.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: X466

Technical Specifications

• MPN: X466
• Brand: MARATHON MOTORS
• Electrical Type: PSC
• HP: 1/3
• RPM: 1625
• Frame: 48Y
• Diameter: 5.6"
• Enclosure: TEAO
• Phase: 1
• Voltage: 208-230 V
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: Belly Band / Extended Studs
• Amperage: 2.0 A
• Shaft Type: Single Special Extension
• Output KW: 0.25 kW
• Speed (RPM): 1625 rpm
• Frame Size: 48Y
• Enclosure NEMA: TEAO
• Enclosure IEC: IP43
• Frequency (Hz): 60
• RPM (Nameplate): 1625
• Speeds: 1
• Mounting Type: Round - Extended Studs
• Frame Material: Rolled Steel
• Shaft Diameter: 1/2 (in.)
• Shaft Extension: 6.06 (in.)
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 11.50 (in.)
• Duty: Continous
• Motor Orientation: Horizontal
• Service Factor: 1
• Type of Overload Protector: Automatic Lock Rotor Only
• Insulation Class: B
• Max Ambient: 40°C
• UL: Recognized
• CE: N
• CSA: Y
• IP Code: 43
• KVA Code: D
