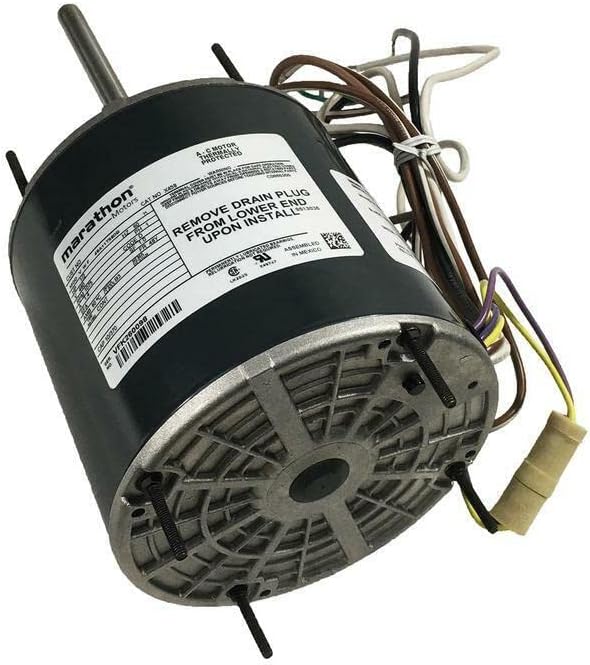

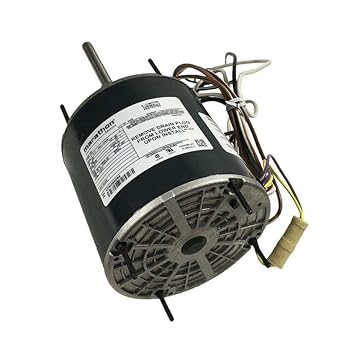

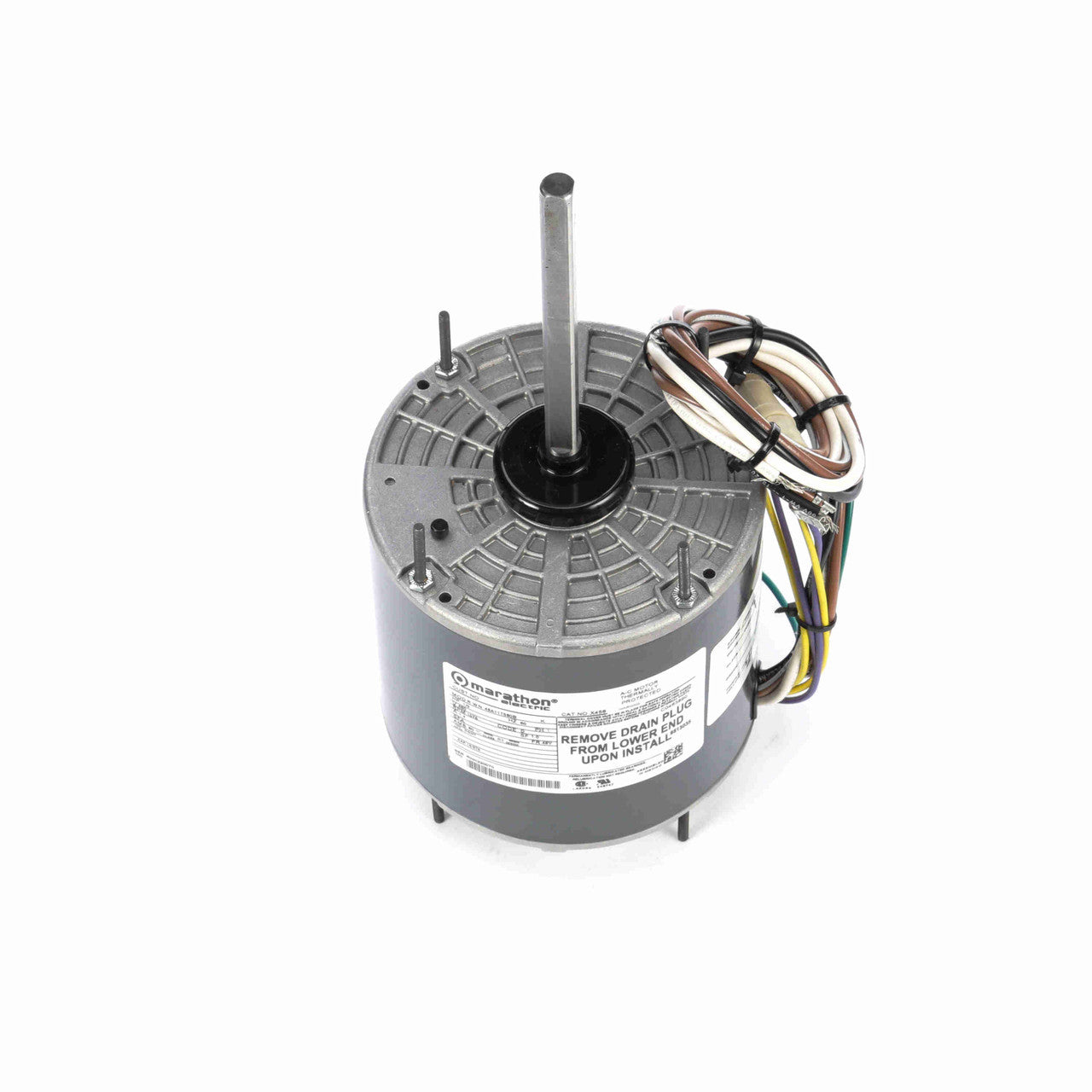

Marathon Motors X458 1/2 HP Condenser Fan Motor 1075 RPM 460V

Product Description

The MARATHON MOTORS X458 is a condenser fan motor rated at 1/2 HP and 1075 RPM for 460 volts 1 phase supply. The motor needs to be mounted within the airflow of the fan for proper cooling. It has a 48Y frame with a 1/2 shaft diameter and ball bearings. It is designed for all angle mounting.

• Direct drive condenser fan is for all angle mounting.
• Needs to be mounted within the airflow of the fan for proper cooling.
• 48Y frame with totally enclosed motor enclosure, thru-bolt mounting, and ball bearing system

Product Highlights

The MARATHON MOTORS X458 is ideal for outdoor condenser units as part of a central air conditioning systems.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: X458

Technical Specifications

• Application: Condenser Duty
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 1075
• Frame NEMA: 48Y
• Mount NEMA: All Angle
• Enclosure NEMA: TEAO
• Enclosure IEC: IP43
• Voltage: 460 Volts
• Frequency (Hz): 60
• Brand: Marathon
• Catalog Number: X458
• Product Category: HVAC/R Motors > Condenser Fans Motors
• Amps: 1.4
• RPM (Number of Poles): 6 (901 RPM to 1200 RPM)
• Speeds: 1
• Phase: 1
• Enclosure: Totally Enclosed Air Over
• Rotation: Selective Counterclockwise
• Mounting Type: Round - Extended Studs
• Frame Material: Rolled Steel
• Shaft Diameter: 1/2 (in.)
• Shaft Extension: 6.06 (in.)
• Shaft Type: Single Special Extension
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 12.00 (in.)
• Electrical Type: Permanent Split Capacitor
• Duty: Continous
• Motor Orientation: Horizontal
• Service Factor: 1
• Type of Overload Protector: Automatic Lock Rotor Only
• Insulation Class: B
• Max Ambient: 60
• UL: Recognized
• CE: N
• CSA: Y
• IP Code: 43
• KVA Code: D
• DEM Reference: NOHP
• Horsepower: 0.5 Horsepower
• Material: Rolled Steel
