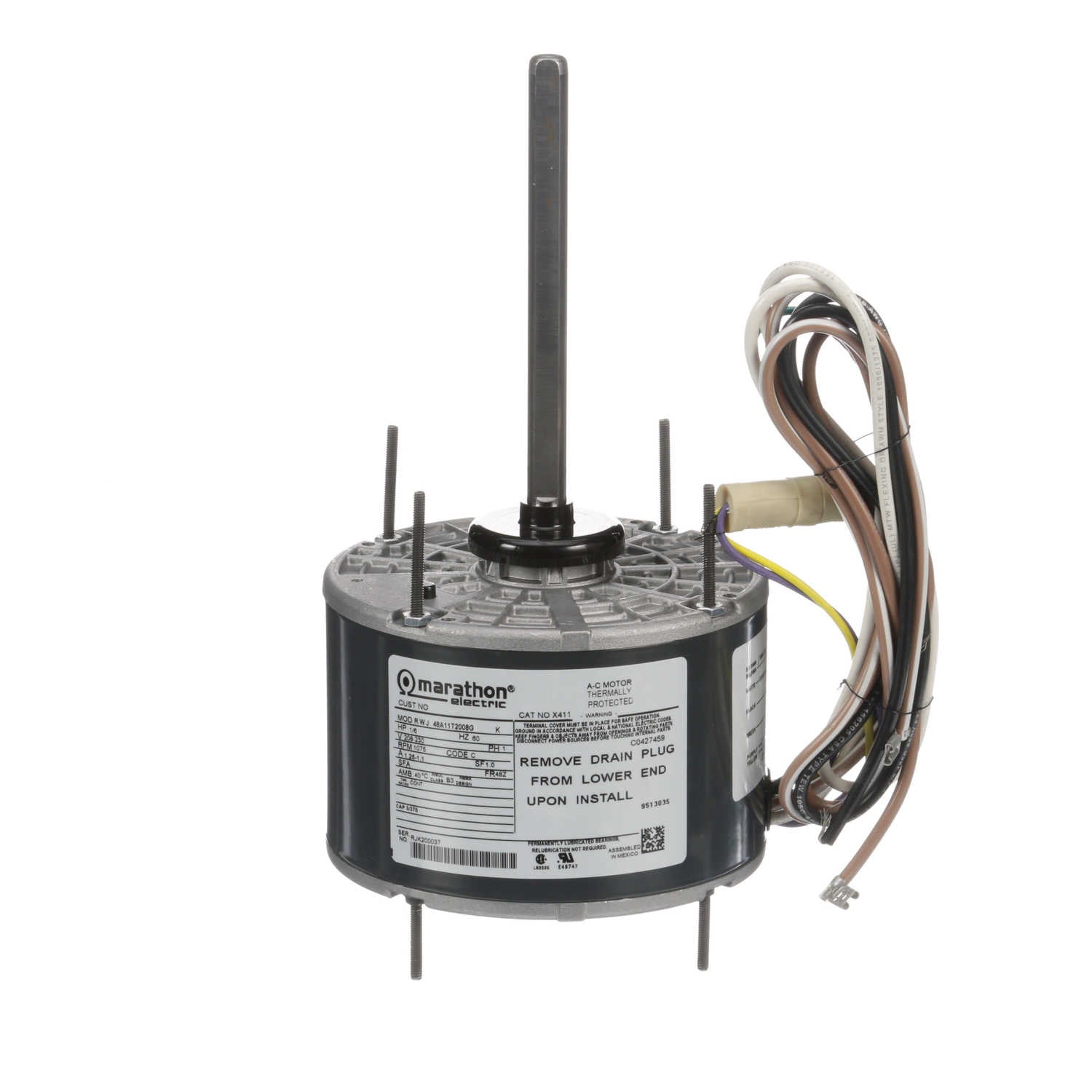

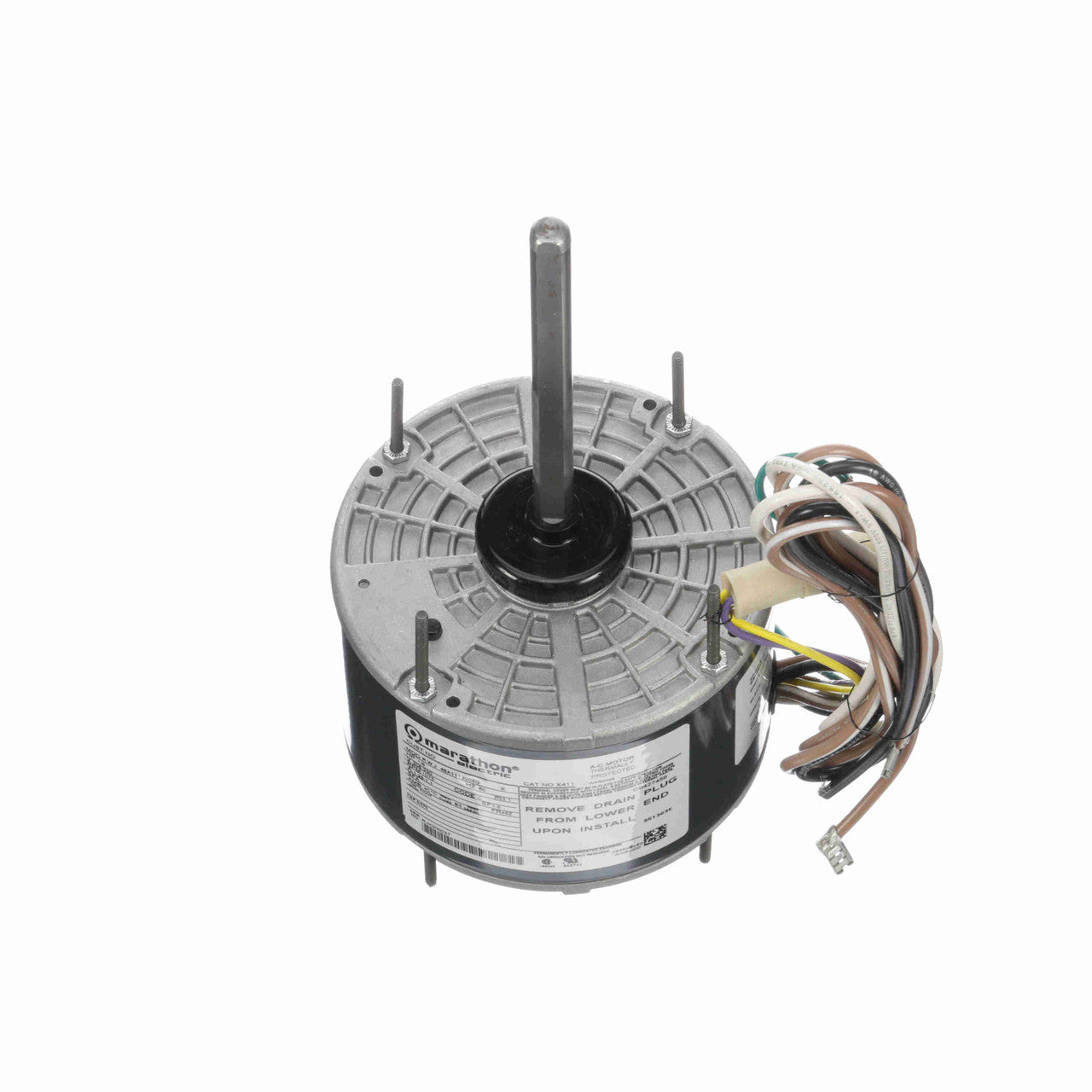

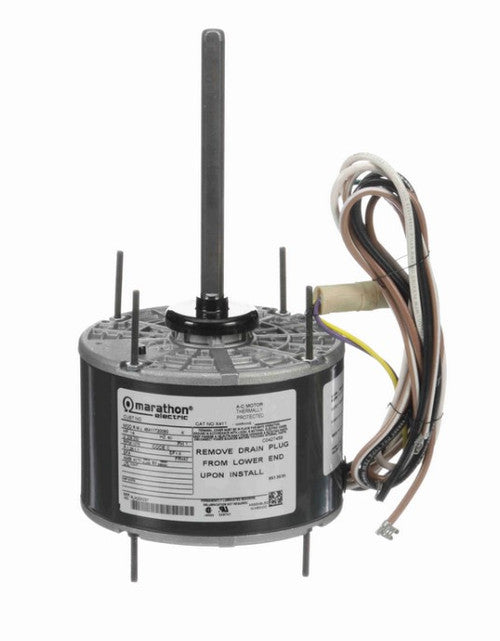

Marathon Motors X411 Condenser Fan Motor 1/6 HP

Product Description

The Marathon Motors X411 is a reliable single-phase condenser fan motor suitable for direct drive applications. This motor operates on 208-230 VAC and is designed for continuous duty, ensuring consistent performance. With a 48Y/48Z frame and ball bearings, it offers durability in demanding environments.

• Rated for 208-230 VAC single-phase power
• Features a totally enclosed air over (TEAO) enclosure
• Designed for condenser fan applications

Product Highlights

This motor is engineered for cooling applications, mounted within the airflow of a fan. It includes automatic thermal protection to prevent overheating.

Product Information

Standard Information

• Brand: Marathon
• MPN: X411

Technical Specifications

• Application: Condenser Duty
• Output Power: 1/6 HP
• Output Power (kW): 0.13 kW
• Speed: 1075 RPM
• Number of Poles: 6
• Input Voltage: 208-230 V
• Frequency: 60 Hz
• Current: 1.3-1.1 A
• Service Factor: 1
• Efficiency: 57.5 %
• Enclosure: Totally Enclosed Air Over
• IP Code: 43
• Thermal Protection: Automatic
• Insulation Class: B
• Ambient Temperature: 40 °C
• Duty: Continuous
• Rotation: Selective Counterclockwise
• Mounting Type: Round - Extended Studs
• Frame Size: 48Z
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.06 inches
• Drive End Bearing Type: Ball
• Overall Length: 10.25 inches
• Starting Method: Across The Line
• Weight: 10.00 lbs
