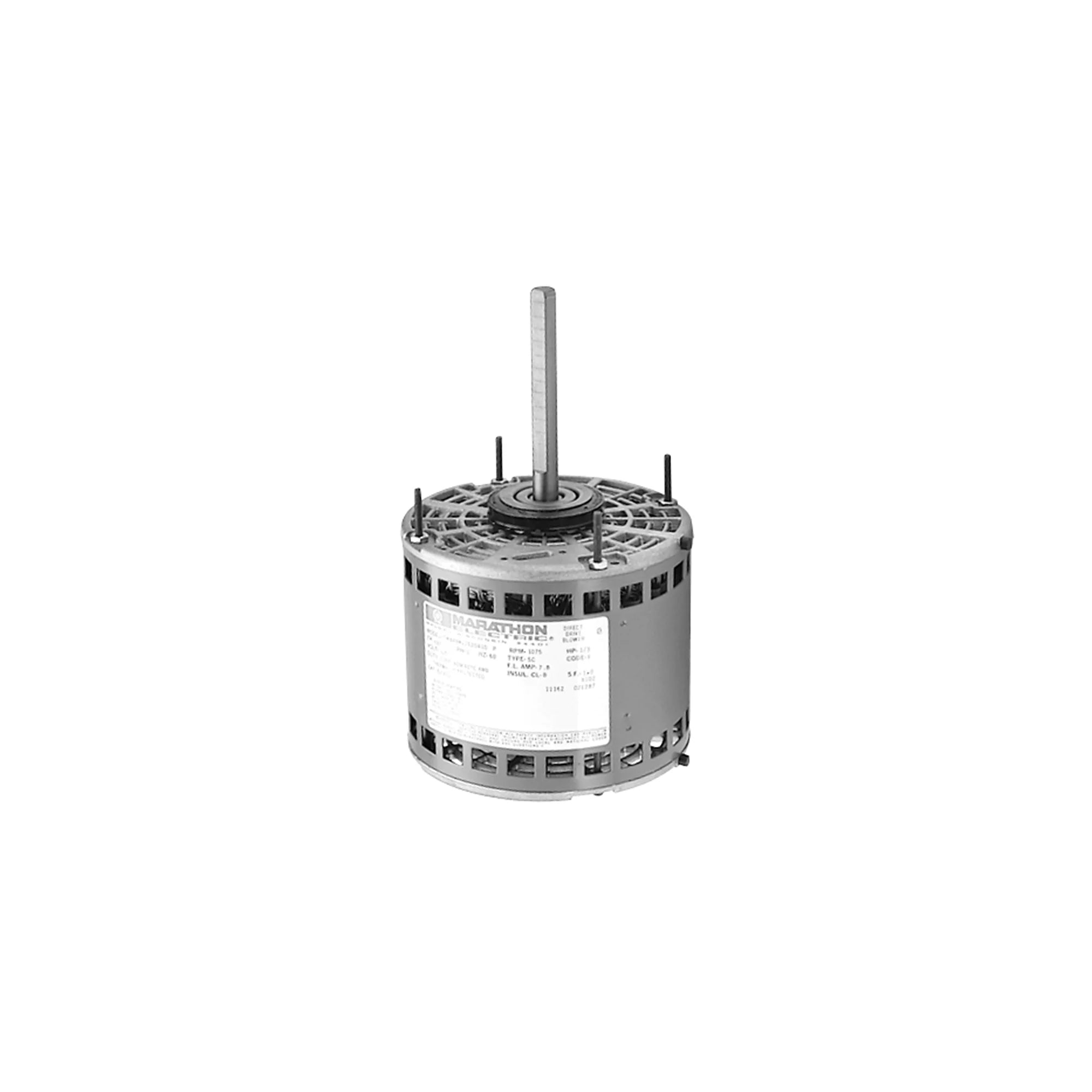

Marathon Motors X400 1/2 HP 460V 1075 RPM Single Phase 60 Hz Motor

Product Description

The Marathon Motors X400 is a condenser fan and heat pump motor. This motor operates on a single phase at forty-six volts and seven hundred seventy-five RPM. It is designed for direct drive condenser fans, specifically mounted vertically with the shaft facing upward. The motor is constructed with an open air over design and includes enclosed frame and shaft end brackets.

• Equipped with ball bearings for smooth operation.
• Includes a weather-resistant reversing plug.
• Automatic reset thermal protection enhances safety.

Product Highlights

The X400 is ideal for HVAC applications, providing efficient performance for condenser fans.

Product Information

Standard Information

• Brand: Marathon Motors
• Phase: Single

Technical Specifications

• Motor HP: 1/2 HP
• Full Load Amps: 1.4
• Voltage: 460 VAC
• RPM: 1075
• Mounting Type: Resilient Base Extended
• NEMA Frame: 48Y
• Height: 8.8 inches
• Width: 8.1 inches
• Length: 14.3 inches
• Shaft Diameter: 0.5 inches
• Shaft Length: 6.06 inches
• Insulation Class: B
• Country of Origin: MEX
