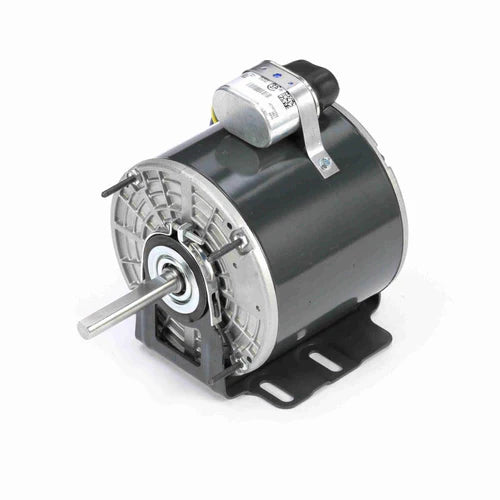

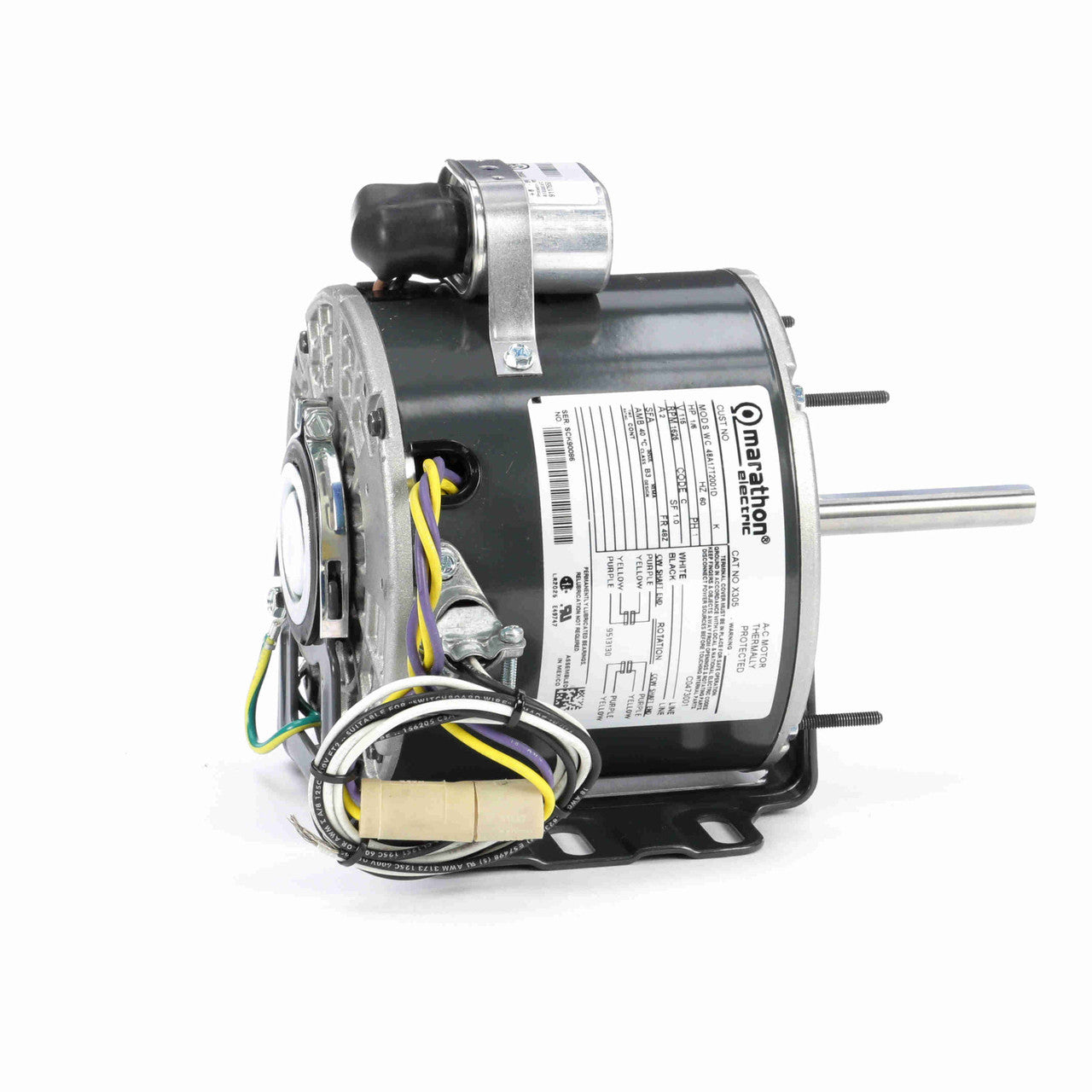

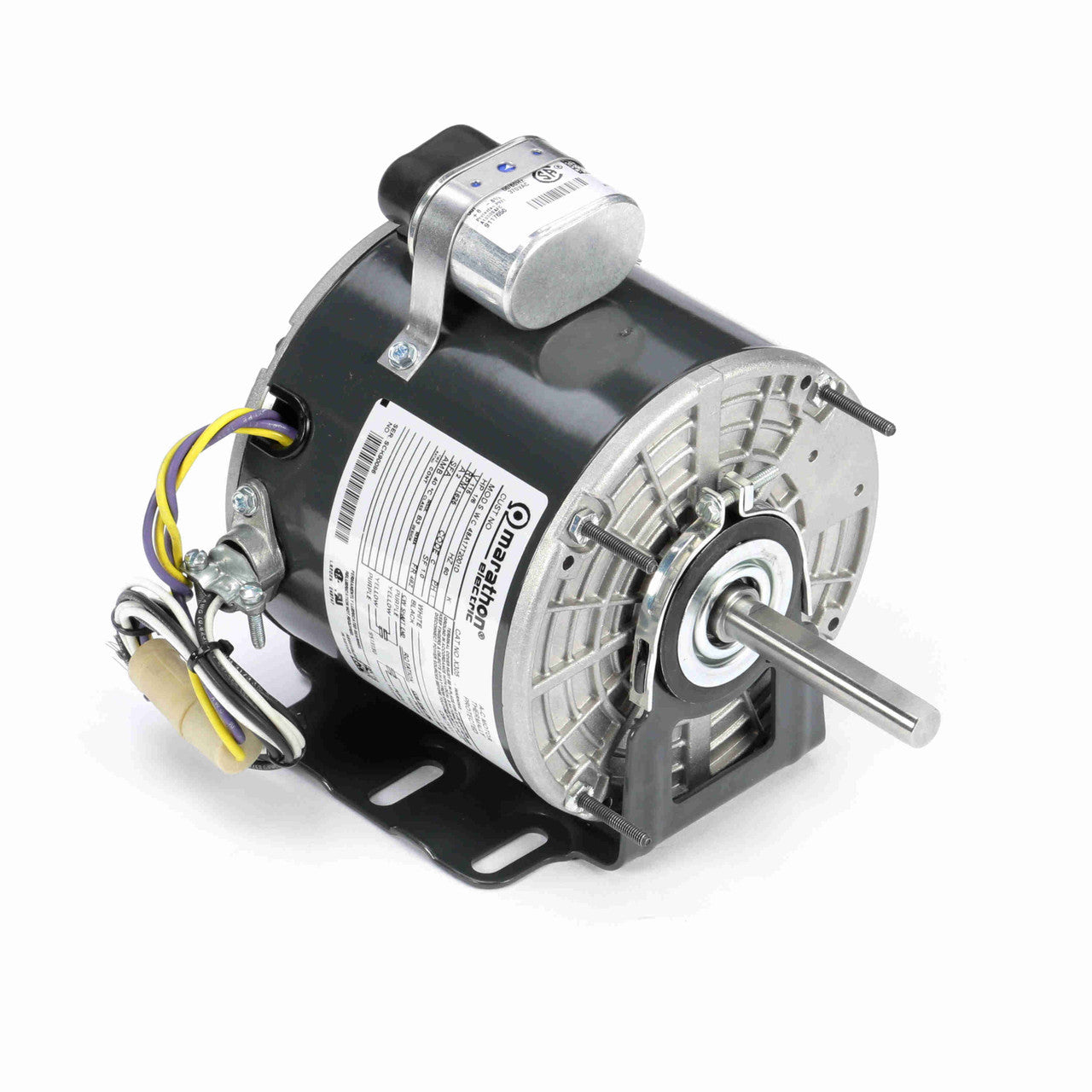

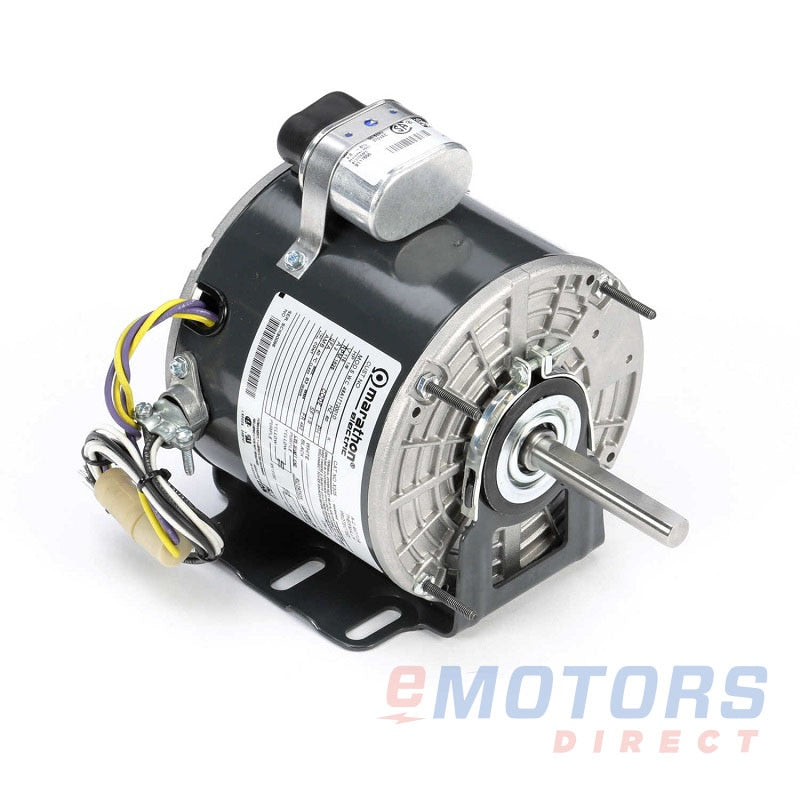

MARATHON MOTORS X305 Unit Heater Fan Motor 1/6 HP Replacement MPN

Product Description

The MARATHON MOTORS X305 is a permanent split capacitor motor designed specifically for unit heater fan applications. With an operating voltage of 115V and a frequency of 60 Hz, this motor supports efficient performance with a rated speed of 1625 RPM.

• Designed for horizontal mounting.
• Features a totally enclosed air over (TEAO) enclosure for durability.
• Includes automatic thermal protection for increased safety.

Product Highlights

This motor is suitable for continuous duty and includes features like ball bearings for longevity.

Product Information

Standard Information

• Brand: Marathon
• Rated Motor Output Power: 1/6 HP

Technical Specifications

• Rated Motor Speed: 1625 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 2 AMP
• Frequency: 60 Hz
• Phase: 1
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Mounting Type: Resilient Base - Extended Studs
• Insulation Class: B
• Weight: 13 lbs.
