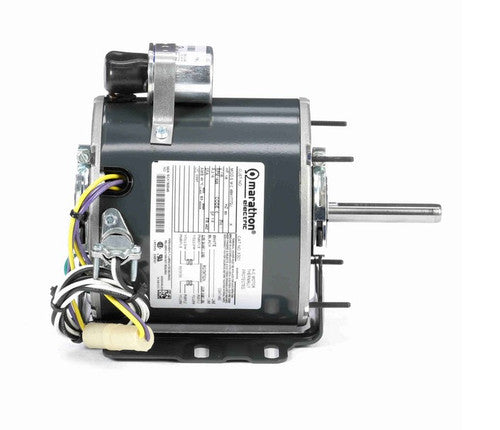

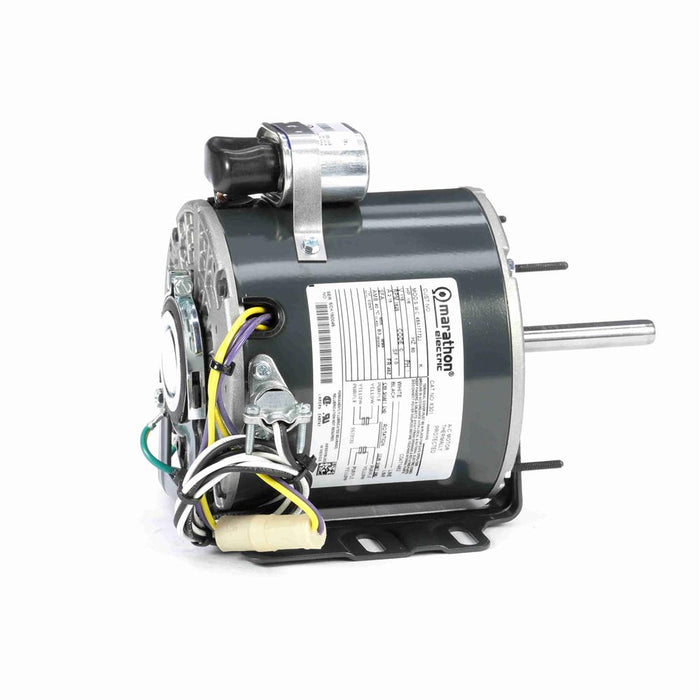

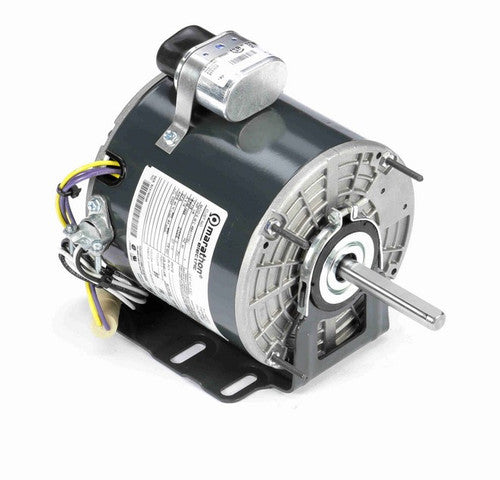

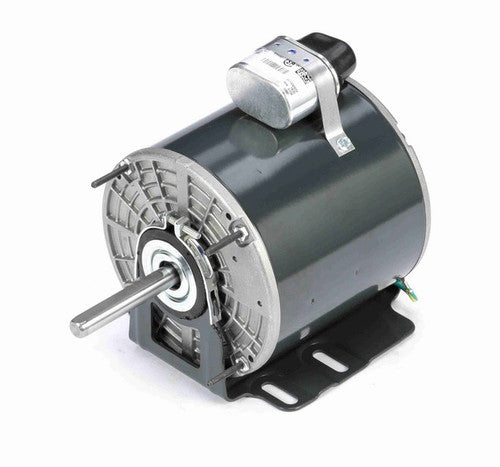

Marathon Motors X301 Unit Heater Motor 1/6 HP

Product Description

The Marathon Motors X301 Unit Heater Motor features PSC electrical type, 1/6 HP, and 1625 RPM. It has a 48Z frame, 5.6" diameter, and TEAO enclosure. Designed for single-phase 115V power, it offers reverse rotation and automatic overload protection. Constructed from rolled steel, it mounts via resilient or extended studs and operates at 2.2 amperage with a single shaft type.

• Electrical Type: PSC
• HP: 1/6
• RPM: 1625

Product Highlights

The Marathon Motors X301 is ideal for unit heater fan applications, ensuring efficient and reliable performance.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: X301

Technical Specifications

• Brand: Marathon Motors
• Electrical Type: PSC
• Horsepower: 1/6 HP
• RPM: 1625
• Frame: 48Z
• Diameter: 5.6"
• Enclosure: TEAO
• Phase: Single
• Voltage: 115V
• Rotation: Reversible
• Overload: Auto
• Material: Rolled Steel
• Mounting: Resilient / Extended Studs
• Amperage: 2.2 Amps
• Shaft Type: Keyed
• Application: Unit Heater Fan
• Output KW: 0.12
• Mount NEMA: Resilient Base
• Enclosure NEMA: TEAO
• Enclosure IEC: IP43
• Frequency (Hz): 60 Hz
• Hertz: 60 Hz
• Bearings: Ball Bearings
• Speeds: 1-Speed
• Insulation Class: Class B
• Amps: 2.15
• Capacitor: Included
• Duty Cycle: Continuous
• Efficiency: 0.55
• Enclosure Material: Steel
• Product Type: PSC (Permanent Split Capacitor)
• Service Factor: 1
• Shaft Diameter: 1/2"
• Shaft Length: 2.81"
• Thermal Protection: Automatic
• Rated Load (HP): 1/6
• AC Frequency Rating: 60 Hz
• AC Motor Type: Induction/Asynchronous
• MPN: 048A17T72
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• Model: X301
• Nominal Rated Input Voltage: 115 V
• NEMA Frame Suffix: Z (Non-Standard NEMA Shaft)
• AC Phase: Single Phase
• Motor Diameter: 5-5/8"
• Motor Shell Length: 4.75"
• Mounting Orientation: Horizontal
• Base RPM: 1800
• Maximum Ambient Temperature: 40 C
