Marathon Motors X041 1/3 hp 208-230V 1625 RPM 3 speed

Product Description

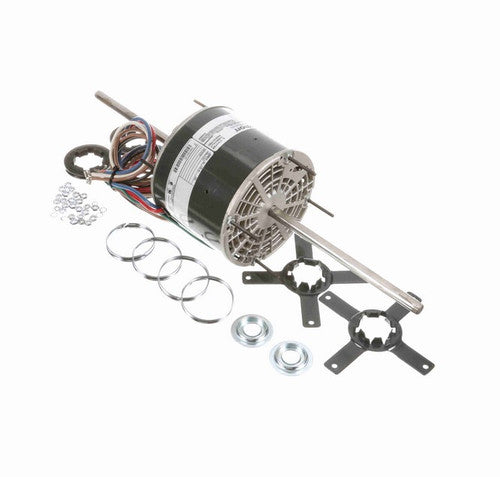

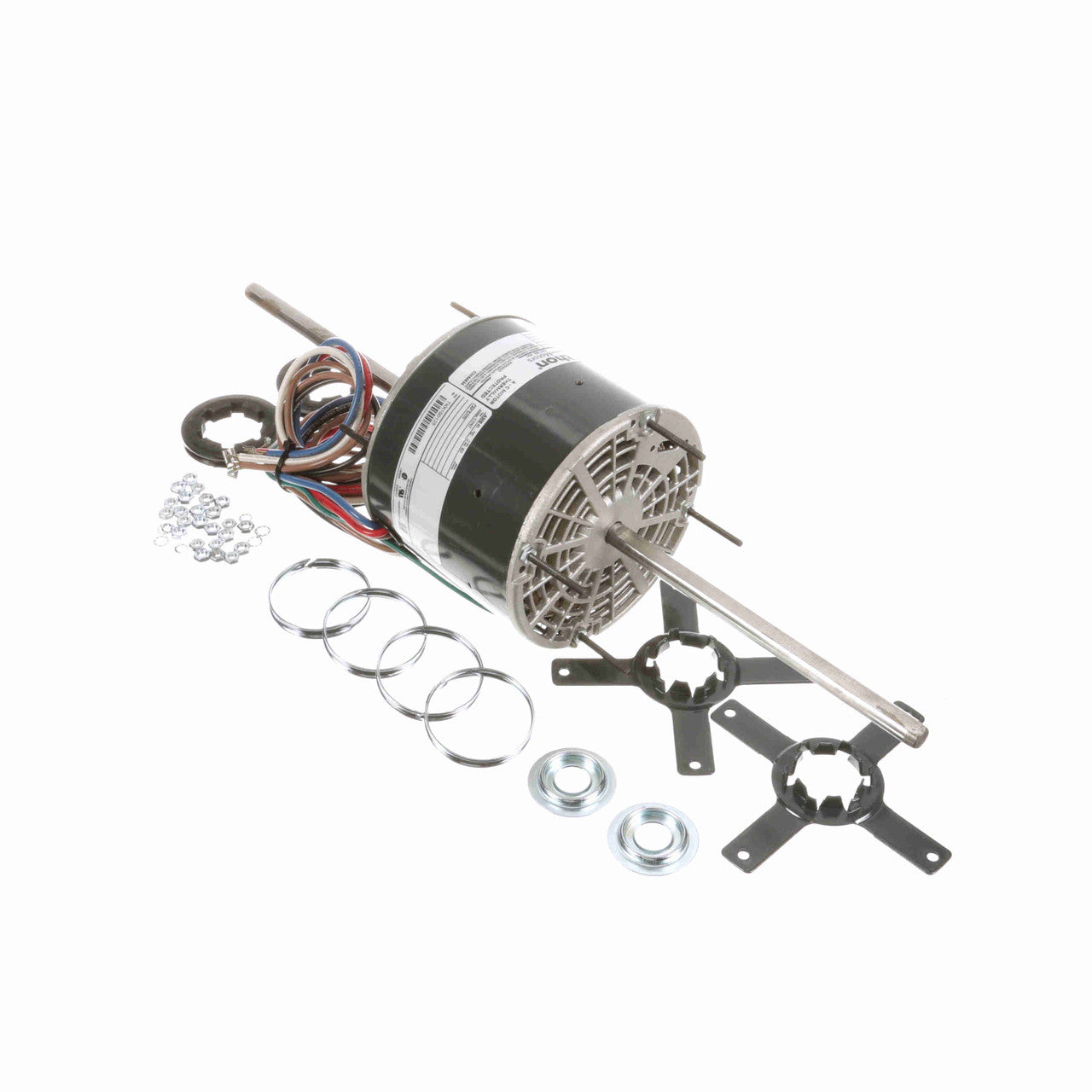

The Marathon Motors X041 is a direct drive blower motor with a power rating of 1/3 horsepower. It operates at 208-230 volts with a speed of 1625 RPM and features three speed settings. The motor has a NEMA 48Y frame and a double shaft design, making it suitable for various air-stream applications. This unit incorporates a permanent split capacitor for efficient operation and comes with an open air over enclosure. Automatic thermal protection ensures safe operation.

• 1/3 horsepower for effective air movement
• Three-speed settings for versatility
• Designed for air-stream applications

Product Highlights

This blower motor is ideal for HVAC applications, providing reliable performance with a robust design.

Product Information

Standard Information

• Brand: Marathon
• Catalog Number: X041

Technical Specifications

• Horsepower: 1/3 hp
• RPM: 1625
• Voltage: 208-230V
• Speed: 3-speed
• Frame: 48Y
• Shaft: Double-Shaft
• Amps: 1.8-1.7
• Hertz: 60 Hz
• Capacitor Type: Permanent Split Capacitor
• Service Factor: 1.0
• Thermal Protection: Automatic
• Rotation: CCW rotation lead end
• Bearings: Ball Bearings
• Insulation Class: B
• Frequency: 60
• Phase: 1
• Enclosure Type: Open Air Over
• Mounting Type: Resilient Ring - Extended Studs
• Shaft Diameter: 1/2 inches
• Shaft Extension: 7.81 inches
• Shaft Type: Special Extension Both Sides
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• Electrical Type: Permanent Split Capacitor
• Duty: Continuous
• Motor Orientation: Horizontal
• Type of Overload Protector: Automatic Lock Rotor Only
• Max Ambient: 40 degrees C
• UL: Recognized
• CSA: Y
• IP Code: 10
• KVA Code: D
• DEM Reference: MA#X041
