Marathon Motors X020 Direct Drive Motor 1/2 HP

Product Description

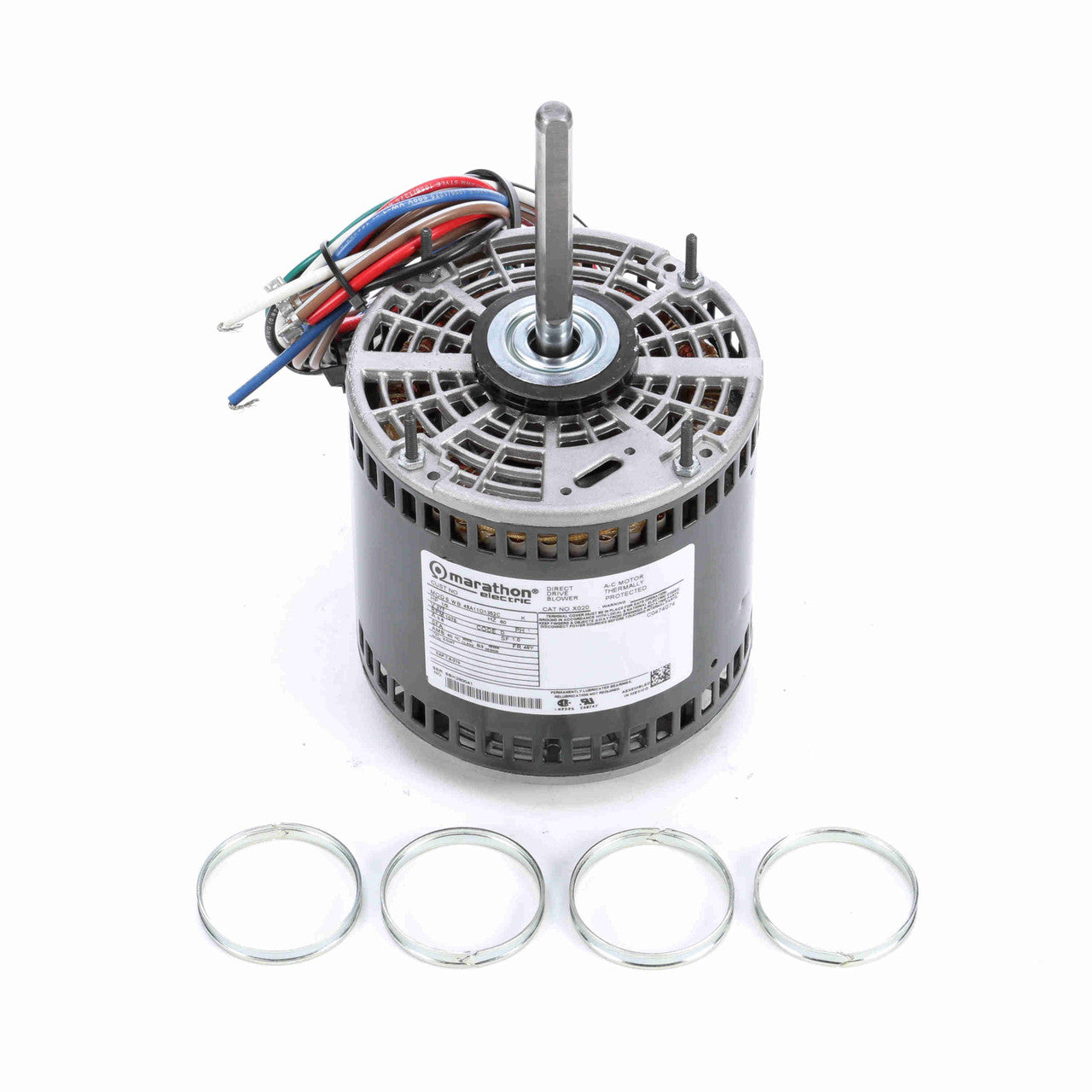

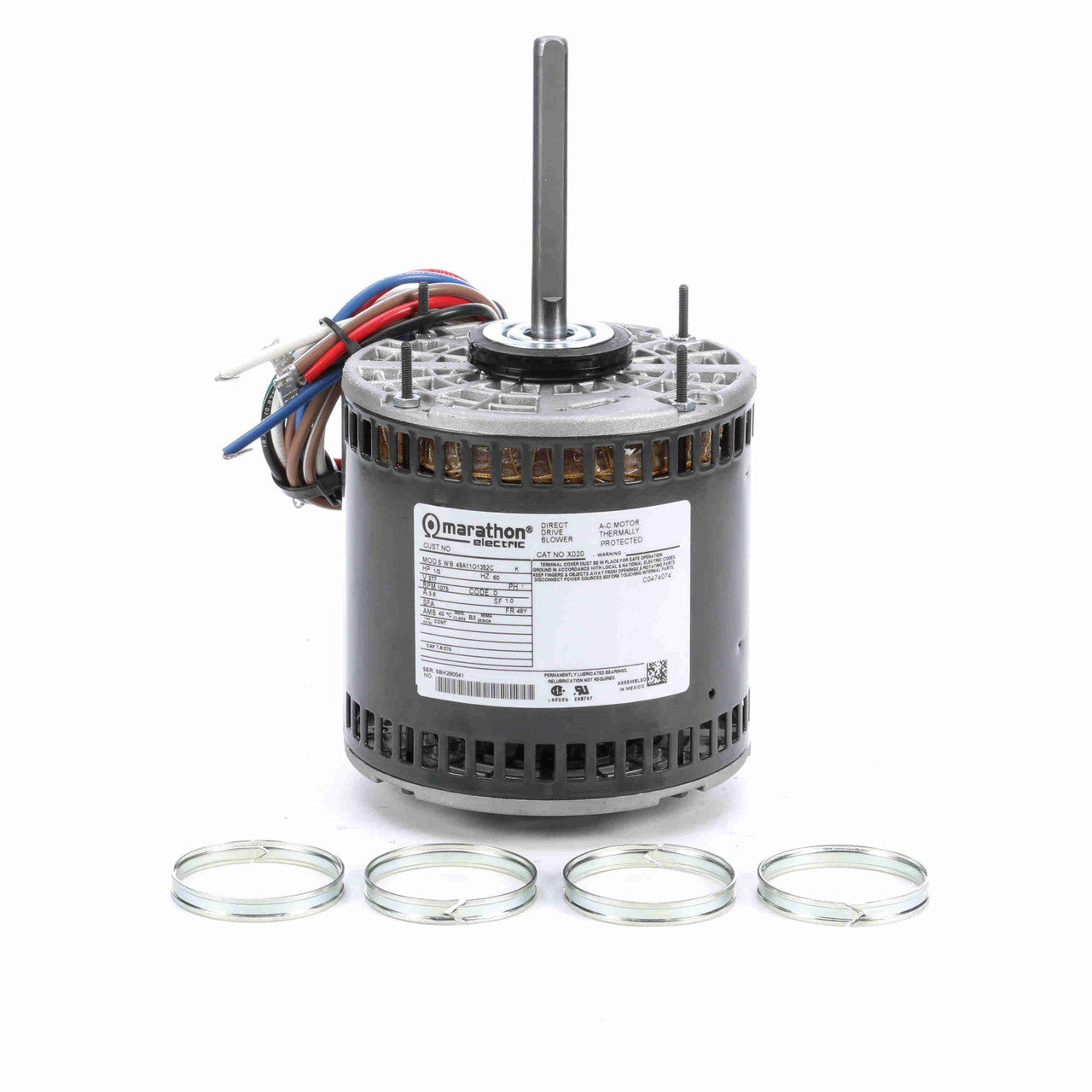

The Marathon Motors X020 is a direct drive motor designed for direct drive applications such as furnaces, air conditioners, and blowers. This single-phase motor operates at 277 volts with a speed of 1075 RPM and delivers 1/2 horsepower. It features a 48Y frame with an open air over enclosure, making it suitable for various HVAC applications.

• Compatible with PSC and shaded pole motors.
• Equipped with automatic thermal overload protection.
• Constructed with durable rolled steel for longevity.

Product Highlights

This motor is ideal for use in fans and blowers, ensuring efficient operation in heating and cooling applications.

Product Information

Standard Information

• Voltage: 277 V
• Phase: Single

Technical Specifications

• Electrical Type: PSC
• HP: 1/2
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: OAO
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: Resilient Ring / Extended Studs
• Amperage: 3.6
• Shaft Type: Single Special Extension
• Output KW: 0.37 kW
• Service Factor: 1.00
• Thermal Protection: Automatic
• Efficiency: 69 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Duty: Continuous
• Insulation Class: B
• KVA Code: D
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• IP Code: 10
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 10.50 inches
• Motor Orientation: Horizontal
• Type of Overload Protector: Automatic Lock Rotor Only
• Application: Fan & Blower
• Shaft Diameter: 1/2 inches
• Shaft Extension: 4.06 inches
• Horsepower: 0.5 Horsepower
• Capacitor Type: Permanent Split Capacitor (PSC)
• Bearings: Ball Bearings
• Motor Type: OPAO (Open Open Air Over)
