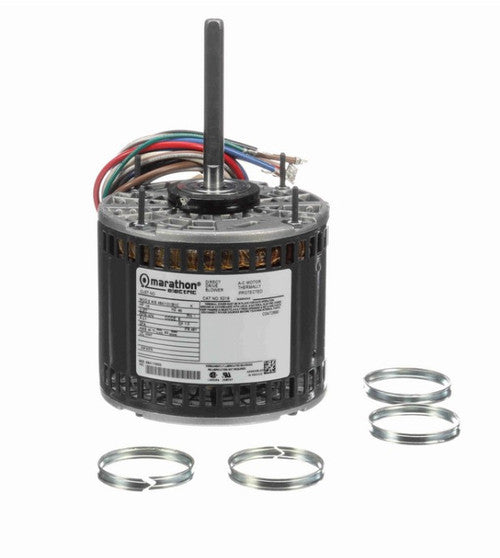

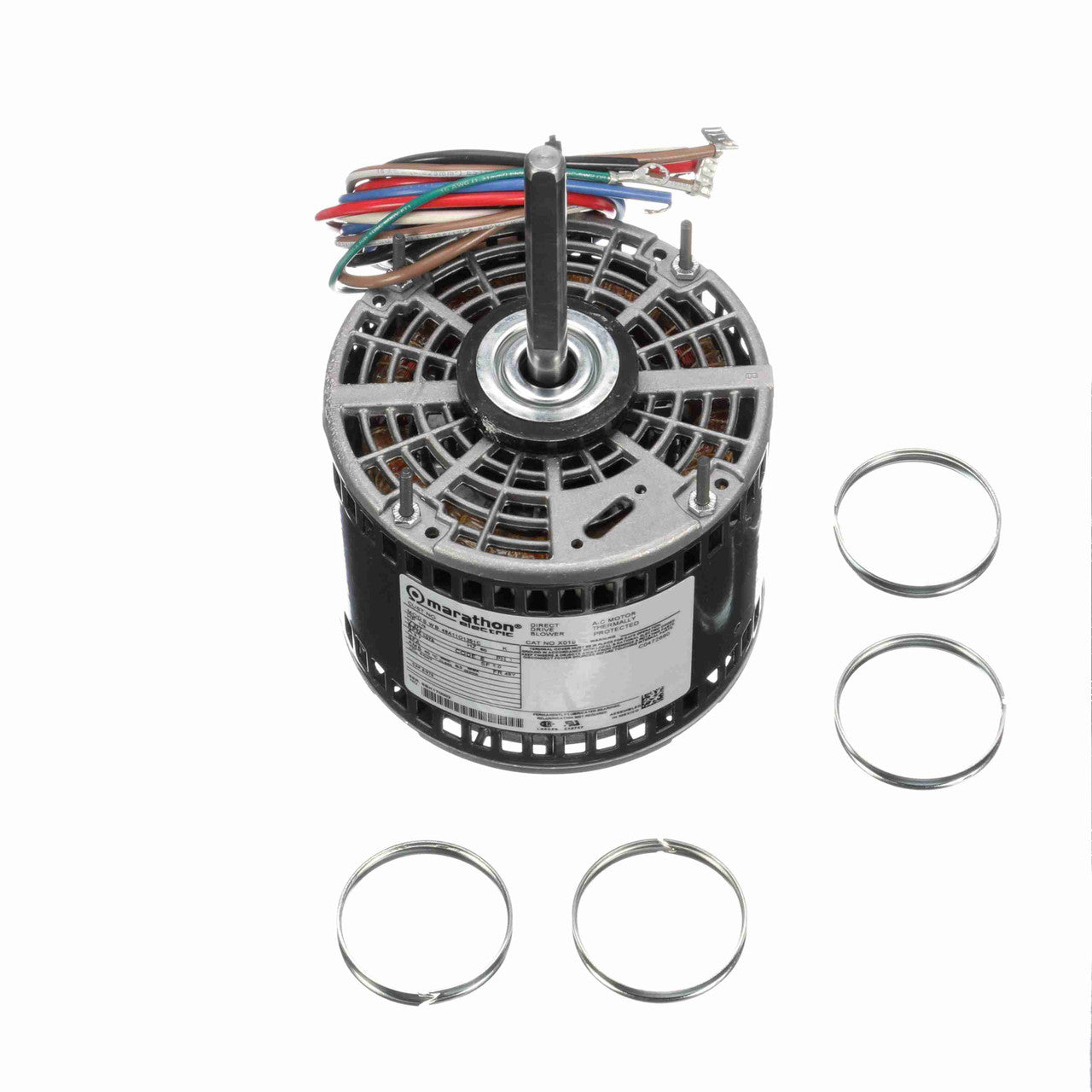

Marathon Motors X019 HVAC Motor 1/3 HP

Product Description

The MARATHON MOTORS X019 is designed for HVAC applications and replaces PSC and shaded pole motors in direct drive furnaces and air conditioners. It features dynamically balanced rotors for reduced vibration and quiet operation. This motor operates similarly to capacitor-start motors, but without a centrifugal starting switch.

• Designed for direct drive furnace and air conditioner blower applications.
• Features open frame and bracket design.
• Equipped with ball bearings and automatic thermal protection.

Product Highlights

The MARATHON MOTORS X019 is ideal for HVAC systems requiring a reliable and efficient direct drive blower motor.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: X019

Technical Specifications

• Duty: Continuous
• Brand: Marathon Motors
• Frame: 48Y
• Hertz: 60 Hz
• Phase: 1
• Voltage: 277 V
• Rotation: Selective Counterclockwise
• Enclosure: OPAO
• Rated RPM: 1075
• Horsepower: 1/3 HP
• Bearing Type: Ball
• Full Load Amps: 2.7 amps
• Service Factor: 1
• Insulation Class: B
• Mounting Location: Resilient Rings - Extended Studs
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Manufacturers Part Number: X019
• Application: Fan & Blower
• Output KW: 0.25
• Mount NEMA: Direct Drive HVAC
• Enclosure NEMA: OPAO
• Enclosure IEC: IP10
• Shaft: Keyed Shaft 1/2" Diameter x 4"
• Base: No Base
• Reversible: Reversible
• Bearings: Ball Bearings
• Warranty: 1 Year Manufacture Warranty
• Speeds: 3
• Frame Material: Rolled Steel
• Shaft Diameter: 1/2 in
• Shaft Extension: 4.06 in
• Shaft Type: Single Special Extension
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 9.75 in
• Electrical Type: Permanent Split Capacitor
• Motor Orientation: Horizontal
• Type of Overload Protector: Automatic Lock Rotor Only
• Max Ambient: 40°C
• UL: Recognized
• CSA: Y
• IP Code: 10
• KVA Code: E
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• Starting Type: PSC 3 SPEED
